Dashboard Bracket

Location		Type	Basic value
Fastening nut securing dashboard bracket to holder	Item 1	Tightening torque	23 N.m (17 ft.lb)

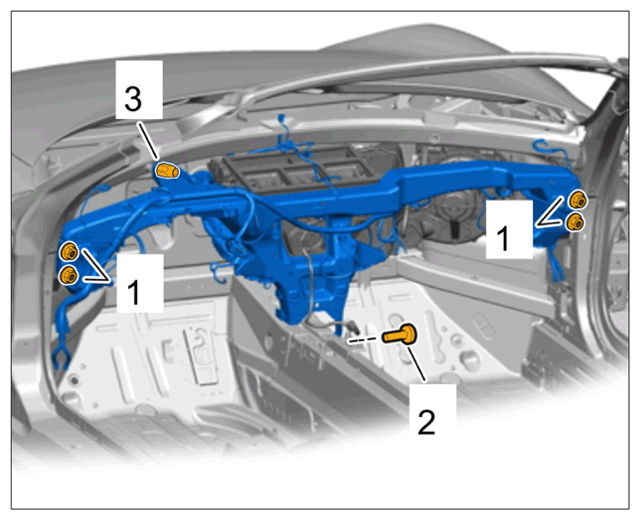

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for dashboard bracket
Fastening screw securing dashboard bracket to tunnel	Item 2	Tightening torque	23 N.m (17 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for dashboard bracket
Fastening screw securing dashboard bracket to firewall	Item 3	Tightening torque	23 N.m (17 ft.lb)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for dashboard bracket
