Installing Wire Harness For Rear Spoiler

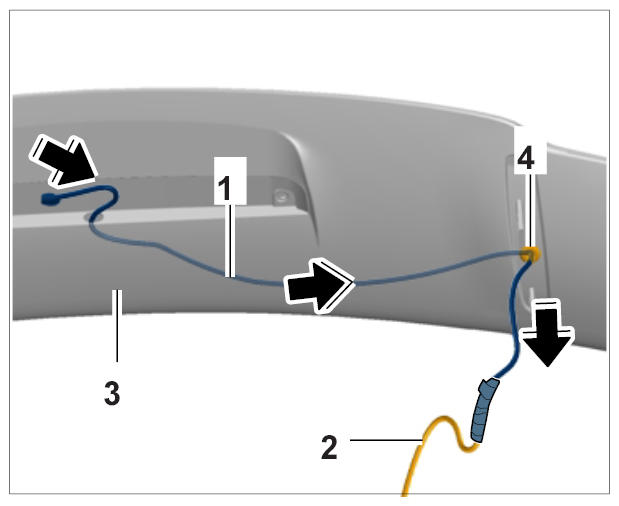

- Secure wire harness for rear spoiler -1-
to the pulling aid -2-
.
- Carefully pull wire harness for rear spoiler into the rear spoiler -3-
.
- Pull rubber sleeve -4-
into the opening in the rear spoiler.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Install rear spoiler. → Installing Rear Spoiler

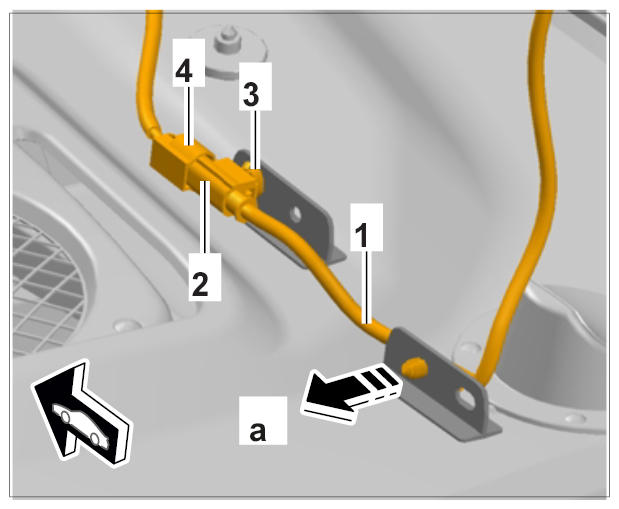

- Clip wire harness for rear spoiler -1-
into the retaining bracket in the rear lid. -a-
.
- Fit electric plug connection -2-
forward on the retaining clip -3-
until it engages securely.
- Connect electric plug connection -4-
until it engages securely.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
