Securing Main Wire Harness In Luggage Compartment At The Left

Main wire harness in luggage compartment at the inner left:

1. Pull the main wire harness through the opening in the plenum panel, engage it loosely and check that it is positioned correctly.
2. Fit fastening points in luggage compartment at the inner left.

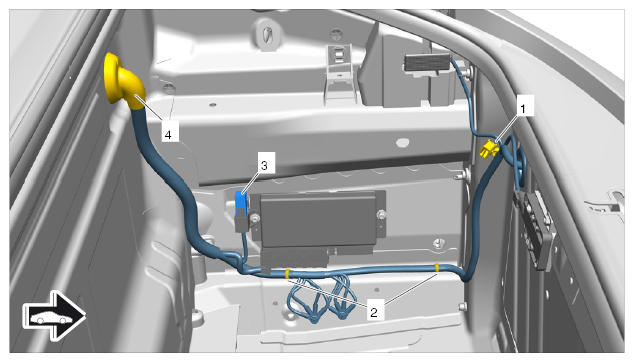

   Fig 1: Identifying Main Wire Harness Fastening Points (Luggage Compartment) - Inner Left

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 2.1. Fit rubber sleeve -4-  for line to the plenum panel.
   2. 2.2. Press relay into the bracket -3-  .
   3. 2.3. Secure fixing clips -2-  on the longitudinal member.
   4. 2.4. Secure cable holder -1-  to the bolt on the body.

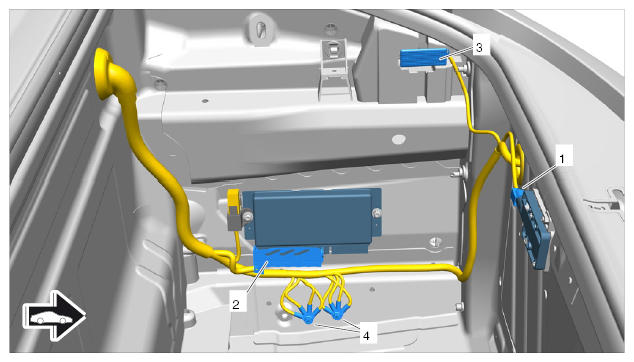

      Fig 2: Identifying Main Wire Harness Connectors (Luggage Compartment) - Inner Left

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Connector for KESSY/PAS antenna
      2. Connector for PDCC control unit
      3. Connector for luggage compartment light
      4. Ground points on floor front section
3. Screw on fastening nuts at the ground points -4-  on the floor front section. → Tightening torque: 10 Nm (7.5 ftlb.)
4. Plug in and lock electric plug connection for PDCC control unit -2-  . → Installing PDCC Control Unit
5. Plug in electric plug connection for antenna for KESSY/PAS -1-  until it engages securely. → Installing The KESSY/PAS Antenna

   Main wire harness in luggage compartment at the outer left:

6. Pull the main wire harness through the opening in the closing panel, engage it loosely and check that it is positioned correctly.
7. Fit fastening points in luggage compartment at the outer left.

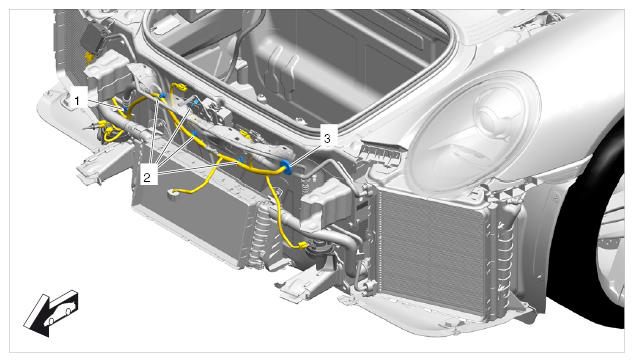

   Fig 3: Identifying Main Wire Harness Fastening Points (Luggage Compartment) - Outer Left

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 7.1. Fit rubber sleeve -3-  for line to the closing panel.
   2. 7.2. Secure fixing clips -2-  on the retaining strip.
   3. 7.3. Secure fixing clip -1-  on the air-conditioning line at the right.

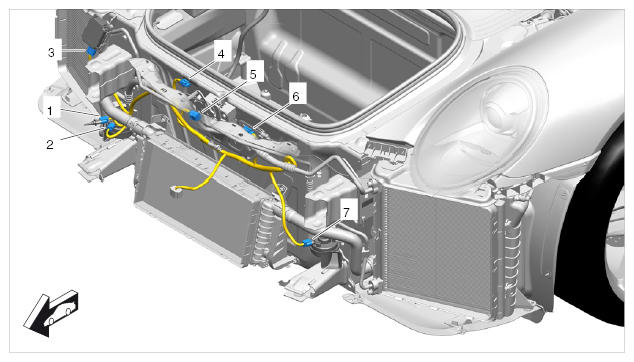

      Fig 4: Identifying Main Wire Harness Connectors (Luggage Compartment) - Outer Left

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1. Connector for outside temperature sensor
      2. Connector for right horn
      3. Connector for control unit for garage door opener
      4. Connector for servo motor for emergency release
      5. Connector for microswitch for front lid release
      6. Connector for servo motor for front lid release
      7. Connector for left horn
      8. Connector for left horn
8. Plug in and lock electric plug connection for outside temperature sensor -1-  . → 916819 REMOVING AND INSTALLING OUTSIDE TEMPERATURE SENSOR
9. Plug in and lock electric plug connection for right horn -2-  . → Installing Horn
10. Plug in and lock electric plug connection for control unit for garage door opener -3-  . → Installing Control Unit For Garage Door Opener
11. Plug in and lock electric plug connection for servo motor for emergency release - 4-  . → 556119 REMOVING AND INSTALLING SERVO MOTOR FOR EMERGENCY RELEASE
12. Plug in and lock electric plug connection for microswitch for front lid release -5-  . → Installing Lower Part Of Lid Lock
13. Plug in and lock electric plug connection for servo motor for front lid release -6-  . → Installing Lower Part Of Lid Lock
14. Plug in and lock electric plug connection for left horn -7-  . → Installing Horn
