Installing PDCC Control Unit

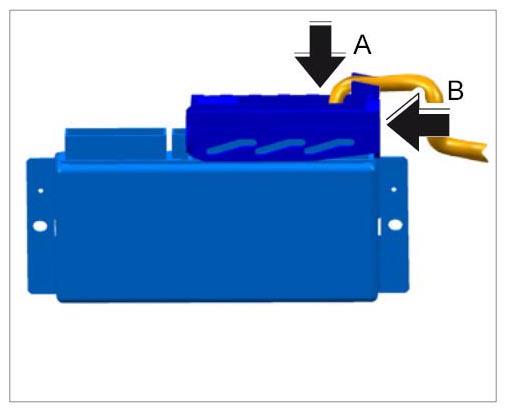

- Fit electric plug connection on the PDCC control unit -A-
and lock it by pushing in the slide lock -B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

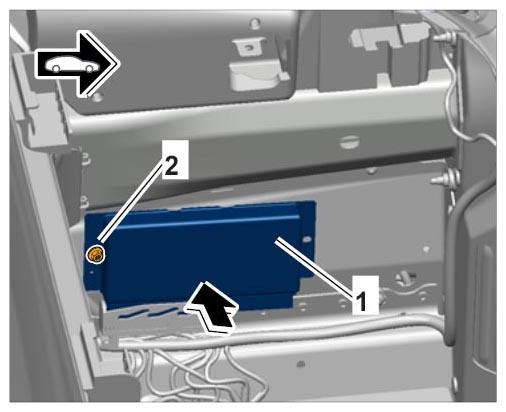

- Place PDCC control unit -1-
in installation position and tighten fastening nut -2-
. Tightening torque 2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

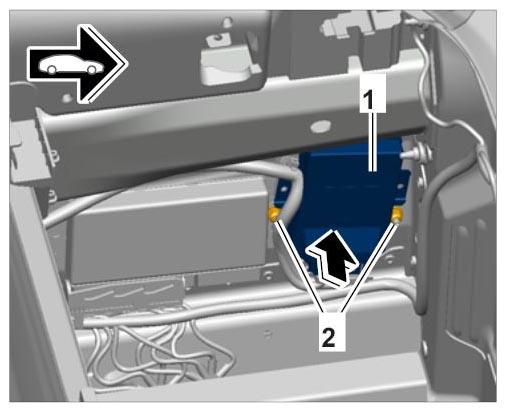

- Place control unit for all-wheel drive (PTM) -1-
in installation position and tighten fastening nuts -2-
. Tightening torque 2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
