Subsequent Work
- Install cover for backrest. → INSTALLING COVER FOR FRONT BACKREST
.

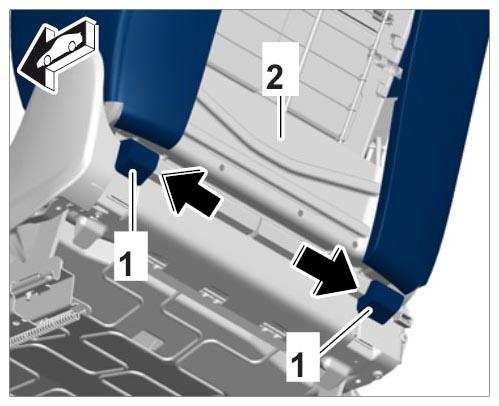

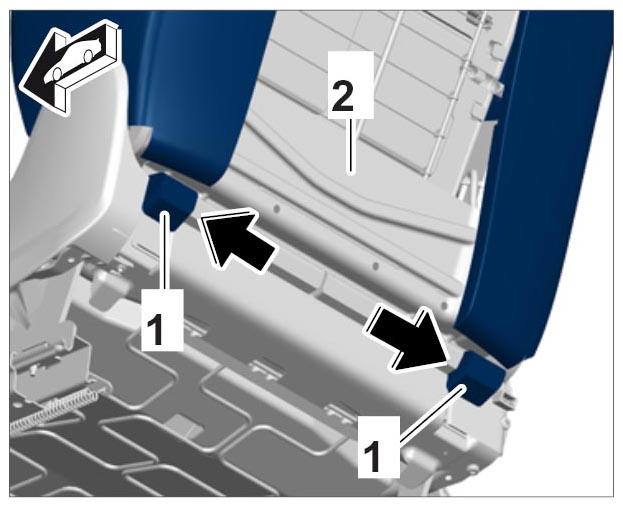

- 1.1. Slide cover for backrest -1-
on the backrest shell -2-
at the bottom left and right, starting at the middle and moving to the relevant side -direction of arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

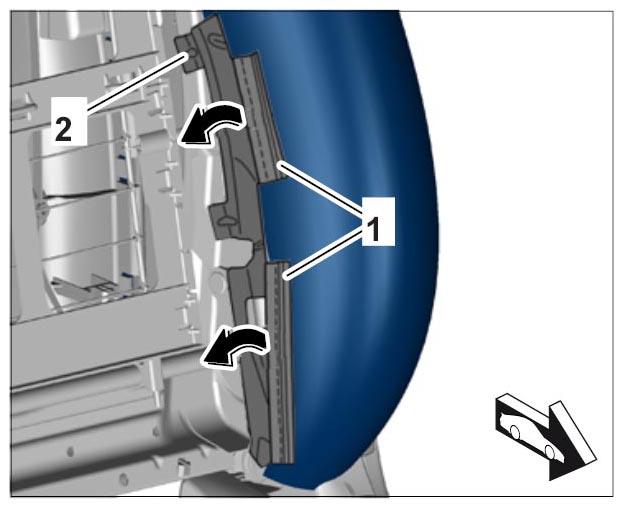

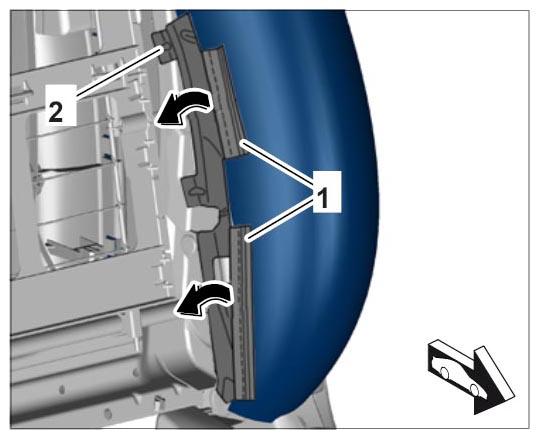

- 1.2. Engage cover piping -1-
at the left and right into the backrest frame -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Engage and secure cover for front middle backrest. → INSTALLING COVER FOR FRONT MIDDLE BACKREST
.
