Engine Oil Draining And Filling: Check

WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The spilling of hot engine oil is unavoidable during this procedure, care must be taken to prevent scalding.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

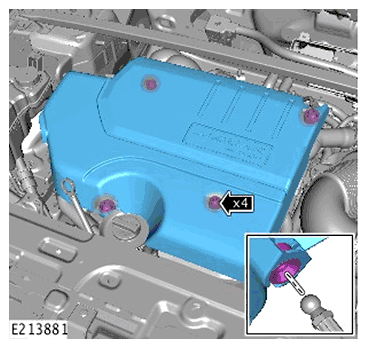

  2. G11717631

    Remove the engine cover.

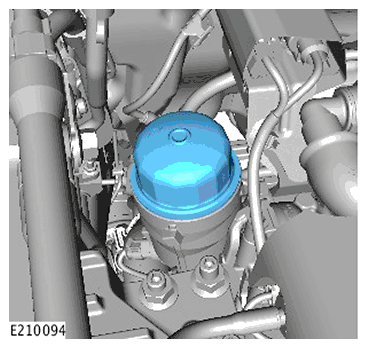

  3. G11717632
    • Loosen the oil filter element cover 4 complete turns.
    • Allow the engine oil to drain from the oil filter element housing for two minutes.
  4. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD

  5. WARNING: Be prepared to collect escaping oil.
    CAUTION: Allow at least 10 minutes for the engine oil to drain.

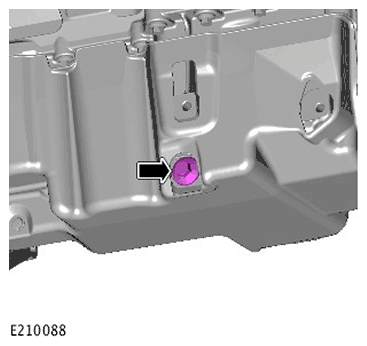

    G11717633
    • Remove the oil pan drain plug.
    • Allow the engine oil to drain.
    • Discard the oil pan drain plug.
  6. G11717633

    Install a new oil pan drain plug.

    Renew Part: Oil pan drain plug  Quantity: 1  .

    Torque Specification: 26 Nm

  7. Install the engine undershield.

    Refer to: ENGINE UNDERSHIELD

  8. WARNING: Be prepared to collect escaping oil.
    G11717632

    Remove the oil filter element cover.

  9. G11717636
    • Remove and discard the oil filter element.
    • Remove and discard the O-ring seal.
  10. G11717636
    • Install a new O-ring seal.

      Renew Part: Oil filter O-ring seal(s)  Quantity: 1  .

    • Install a new oil filter element.

      Renew Part: Oil filter  Quantity: 1  .

    • Lubricate the oil filter O-ring seal with clean engine oil.
  11. G11717632

    Install the oil filter element cover.

    Torque Specification: 25 Nm

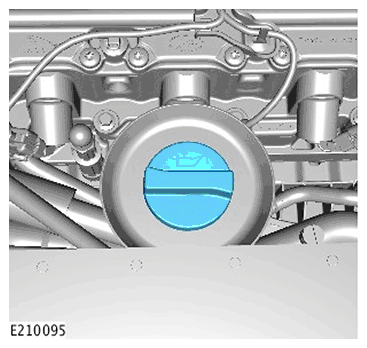

  12. G11717639

    Remove the engine oil filler cap.

  13. Fill the engine with the recommended oil to the correct level.

    Refer to: SPECIFICATIONS

  14. G11717639

    Install the engine oil filler cap.

  15. NOTE: Make sure that the component is correctly installed.

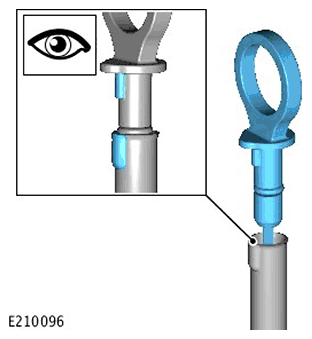

    G11717641

    Check the engine oil level.

    • Start the engine and allow to idle for 2 minutes.
    • Check for leaks.
    • Stop the engine.
  17. Top up as required.
  18. Install the engine cover.
