Disassembling Rear Spring Strut

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Pre-tension coil spring using spring clamp for spring struts Nr.121 until the piston rod is relieved. The appropriate forks must be inserted into the spring clamp.

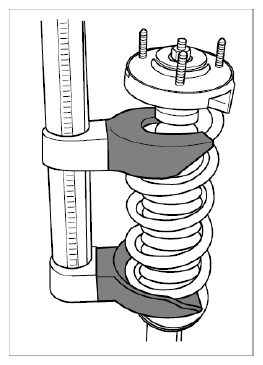

Fig 1: Removing Tensioning Spring (Example)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Use a suitable socket-wrench insert, e.g. socket-wrench insert for ATF temp. switch assembly Nr.18 to loosen the connection between the piston rod and spring-strut mount.
When loosening the connection , counter at the bolts on the spring-strut mount (screw hexagon nuts onto the bolts and use a suitable lever).

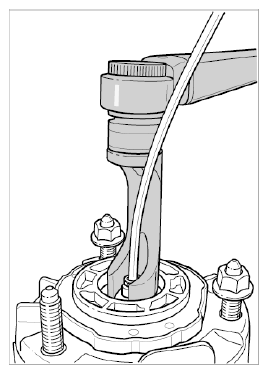

Fig 2: Loosening Connection Between Piston Rod And Spring-Strut Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove all parts from the piston rod.
