Coil Spring/Compensating Plate Allocation

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Identification marking -arrow- comprising one colored line indicates the coil spring tolerance range (load group) and determines the thickness of the spring plate.

The colored line -arrow- is either yellow or blue.

Fig 1: Locating Color Marking On Coil Spring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

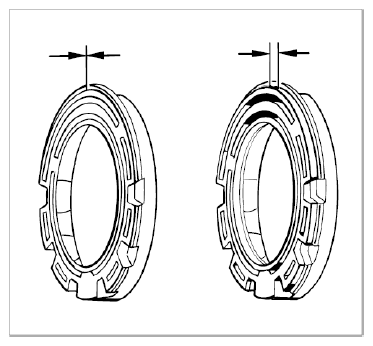

The compensating plate comes in two thicknesses -arrows- .

Fig 2: Identifying 0.5 mm And 4.0 mm Compensating Plate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coil spring color coding	Compensating plate
One yellow line on the coil spring -arrow-	Compensating plate thickness: 0.5 mm (color: natural)
One blue line on the coil spring -arrow-	Compensating plate thickness: 4.0 mm (color: black)
