Installing Coolant Pipes On Compressor

Information

For tightening torques, tightening sequence and assembly overview, see → 1001IN TIGHTENING TORQUES, TIGHTENING SEQUENCES, ASSEMBLY OVERVIEWS

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1. Replace O-rings.
   2. 1.2. Secure all hose connections with standard hose clamps.
   3. 1.3. Before installation, clean or smoothen the sealing face for the O-ring.
   4. 1.4. Moisten the O-ring with coolant and slide it onto the coolant pipe.
2. Fill in coolant. → Filling Coolant
3. Install cover for front underbody. → Installing Cover For Front Underbody
4. Install engine cover -1-  . → 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)

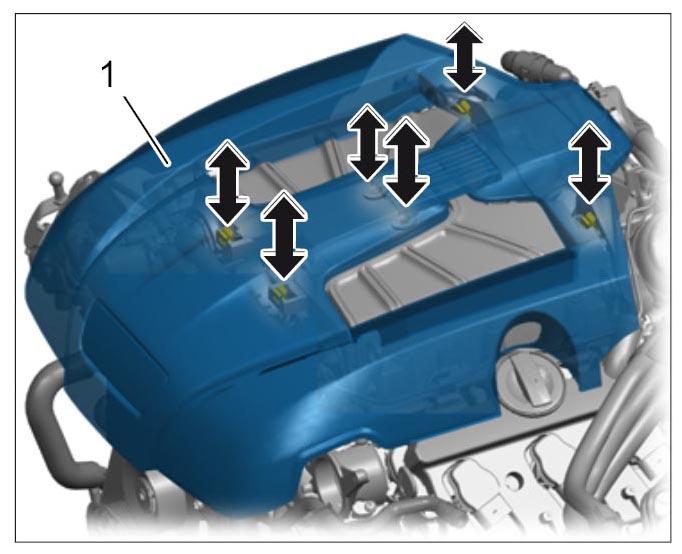

   Fig 1: Installing Engine Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
