Removing Engine Cover (Design Cover): Removal

Information

• For easier access to components, use the tool  > 9824 - flexible-head socket wrench  together with > 9824/2 - Torx Micro Bit if necessary.

1. Remove fastening screws on the design cover at the ignition coils -3-  .
2. Lift up the torque support on the valve cover. Pull the design cover up off the fastening points.

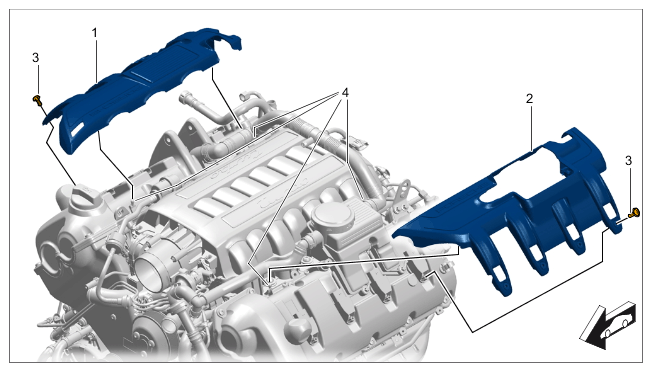

   Fig 1: Design Cover On Engine Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Design cover on engine

   1	Design cover on cylinder bank 1
   2	Design cover on cylinder bank 2
   3	Screw; design cover to ignition coil
   4	Fastening points (ball joints)

3. Remove design cover on throttle valve.

   Pull design cover off the throttle valve > Design cover on throttle valve  .

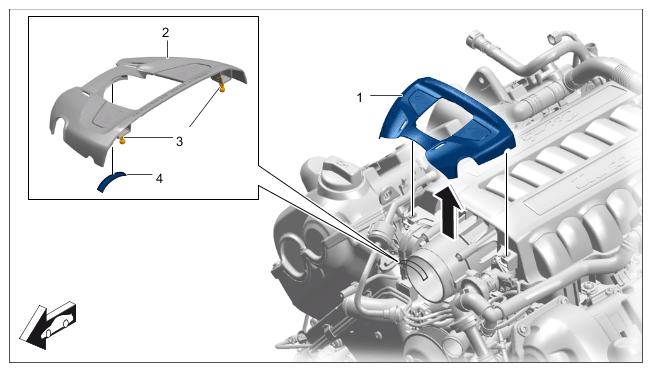

   Fig 2: Design Cover On Throttle Valve Components Location

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Design cover on throttle valve

   1	Design cover on throttle valve (view from above)
   2	Design cover on throttle valve (side view)
   3	Ball joints under design cover
   4	Bonding area, Velcro fastener
