Removing Oil Mist Separator
WARNING: This page is about a different variant/trim than selected.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

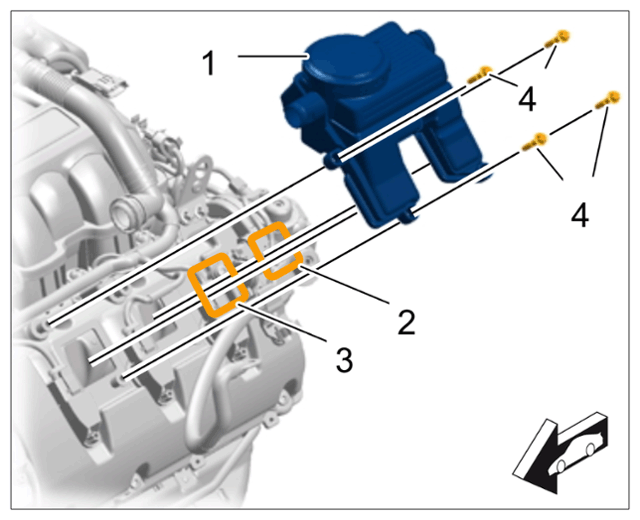

Overview of oil mist separator
| 1 |
Engine ventilation/oil mist separator |
| 2 |
Moulded seal |
| 3 |
Moulded seal |
| 4 |
Screw elements, M6 |
Disconnect line connections to the connection piece on the oil mist separator. To do this, press on the grooved surfaces and pull off
- The connection. -1-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

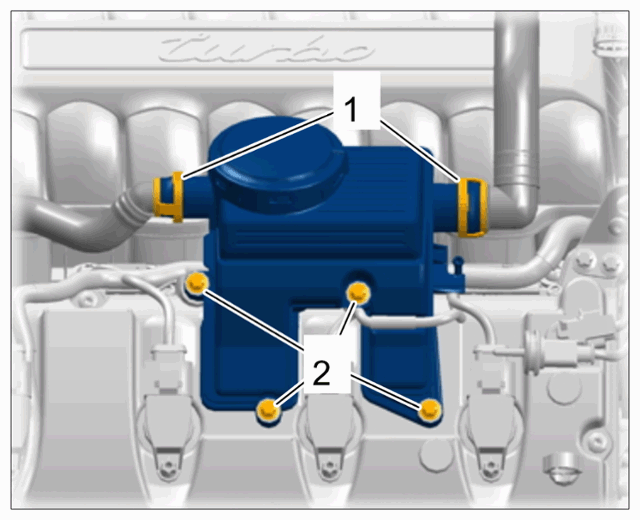

Oil mist separator
- Loosen screws -2-
. Screws are permanently connected. If screws are damaged, press the screws out of the oil mist separator and replace them.
- Remove oil mist separator from the valve cover. At the same time, check the seals and replace them if damaged.
