Installing Oil Mist Separator

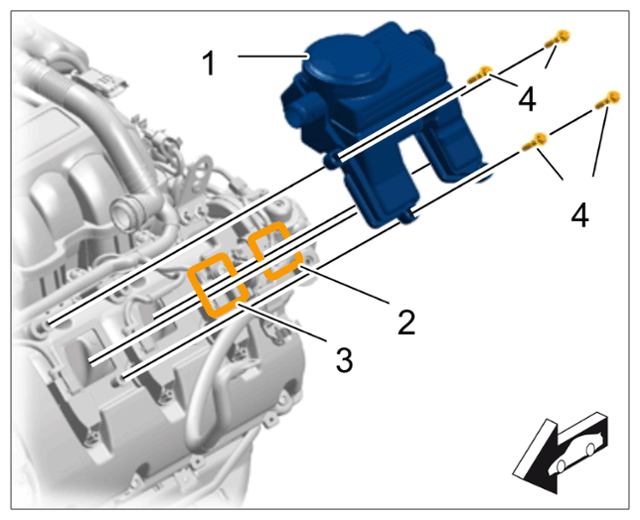

Fig 1: Oil Mist Separator Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of oil mist separator

1. Check seals on oil mist separator and replace if damaged.
2. Place oil mist separator in installation position.
3. Fit oil mist separator evenly onto the valve cover.
4. Screw in and tighten screws for oil mist separator by hand -2-  . Screws are permanently connected. If screws are damaged, press the screws out of the oil mist separator and replace them.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

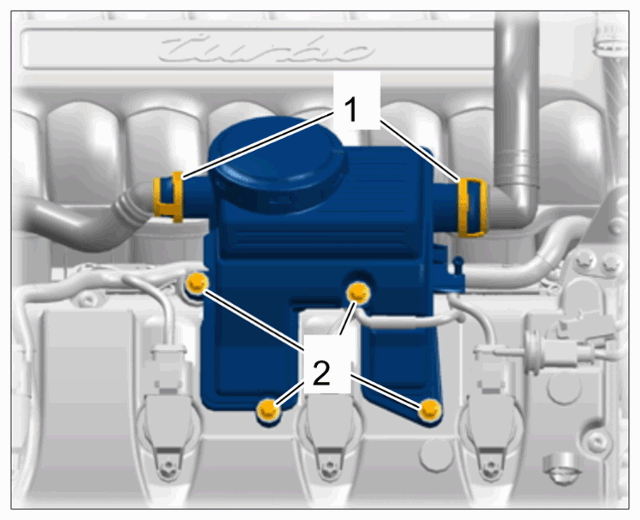

   Oil mist separator

5. Fit line connections to the connection pieces on the oil mist separator -1-  You should hear and feel the lines engage.
