Overview Of Affected Line Connections - Panamera Turbo

WARNING: This page is about a different variant/trim than selected.

Fig 1: PCV Positive Crankcase Ventilation 1 Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

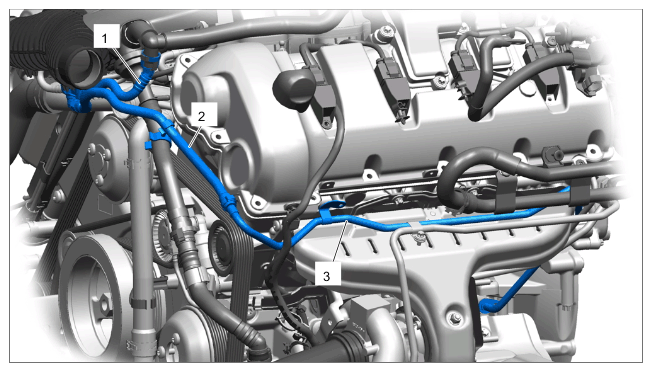

PCV positive crankcase ventilation 1 - overview of lines

1	Top engine ventilation connection
2	PCV vent hose
3	PCV pipeline

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

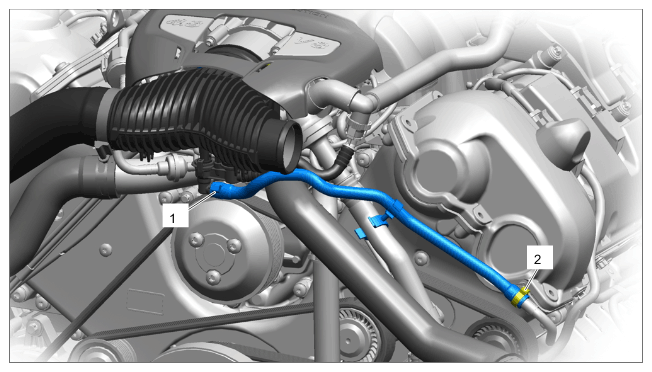

PCV positive crankcase ventilation 2

1	Do not open clamp! Leaks cannot be detected!
2	Do not open clamp! Leaks cannot be detected!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

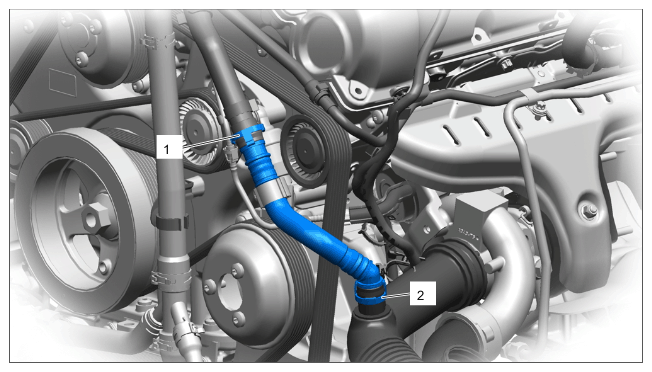

Full-throttle ventilation

1	Full-throttle ventilation one-way connection => Can be opened but will be damaged irreparably, so cannot be refitted. Make sure the markings are positioned correctly with respect to each other during initial fitting. => Leaks cannot be detected!
2	Full-throttle ventilation one-way connection to intake manifold => Can be opened but will be damaged irreparably, so cannot be refitted. Make sure the markings are positioned correctly with respect to each other during initial fitting. => Leaks cannot be detected!
