Overview Of Affected Line Connections - Cayenne Turbo

WARNING: This page is about a different variant/trim than selected.

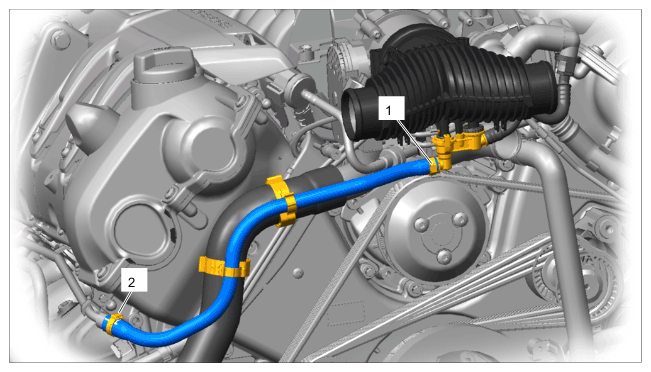

G15197898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

PCV engine ventilation

1  Do not open clamp! Leaks cannot be detected!
2  Do not open clamp! Leaks cannot be detected!

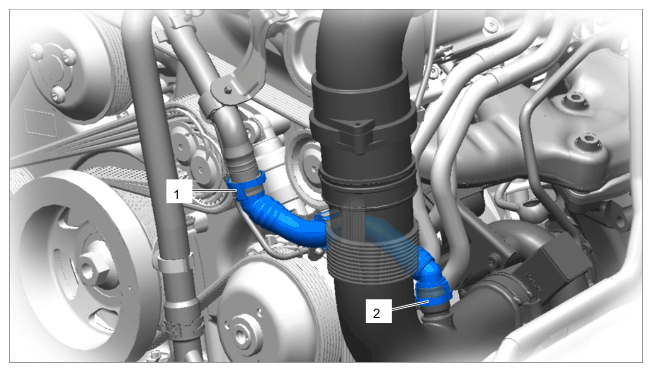

G15197899Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fill-throtte ventilation

1  Full-throttle ventilation one-way connection => Can be opened but will be damaged irreparably, so cannot be refitted. Make sure the markings are positioned correctly with respect to each other during initial fitting. => Leaks cannot be detected!
2  Full-throttle ventilation one-way connection to intake manifold => Can be opened but will be damaged irreparably, so cannot be refitted. Make sure the markings are positioned correctly with respect to each other during initial fitting. => Leaks cannot be detected!
