Removing Left Engine Mount

WARNING: This page is about a different variant/trim than selected.

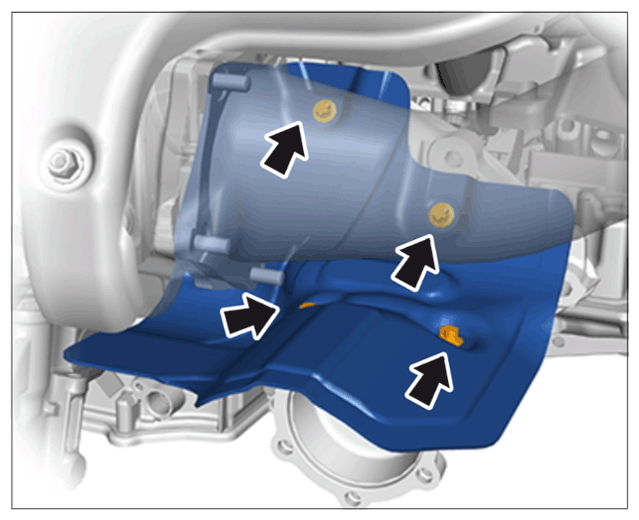

Loosen the four fastening screws on the heat shield -arrows- for the final drive.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on heat shield (illustration shows removed primary catalytic converter, but left primary catalytic converter remains fitted)

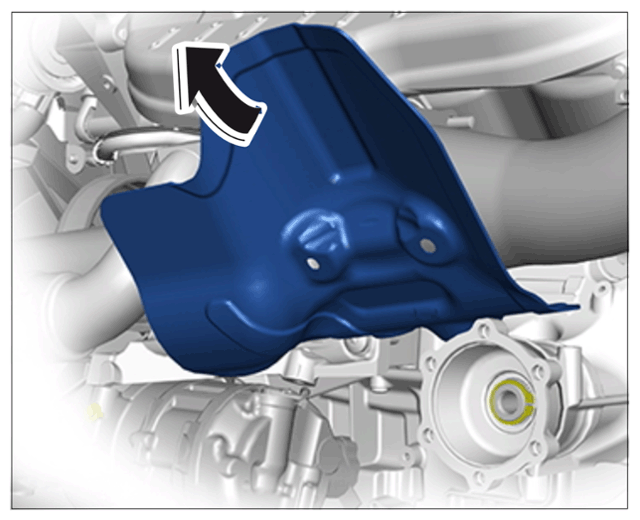

Take out the heat shield. -arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing heat shield

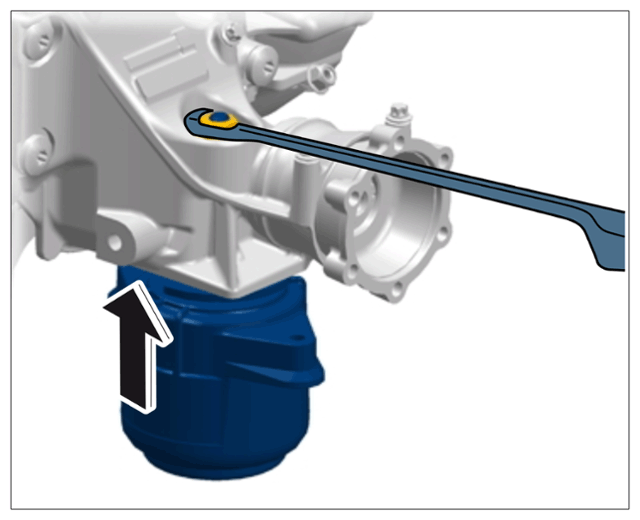

Press against the engine mount from below -arrow- and loosen the fastening nuts on the engine mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening engine mount (figure shows 4WD turbo engine)

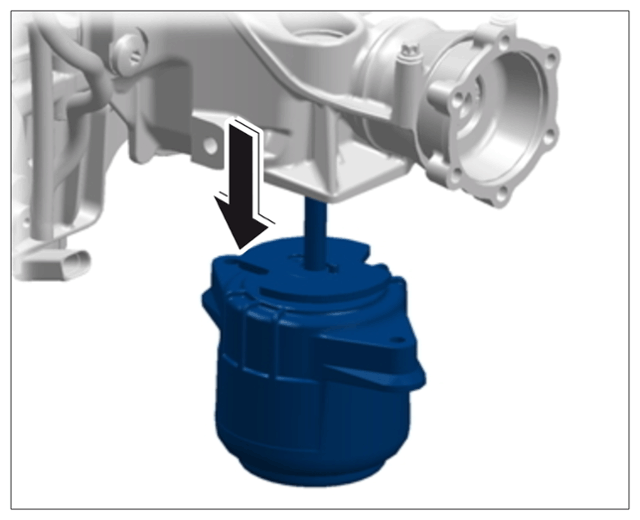

Remove engine mount from the guide. -arrow-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing engine mount
