Upper Part Of Crankcase

WARNING: This page is about a different variant/trim than selected.

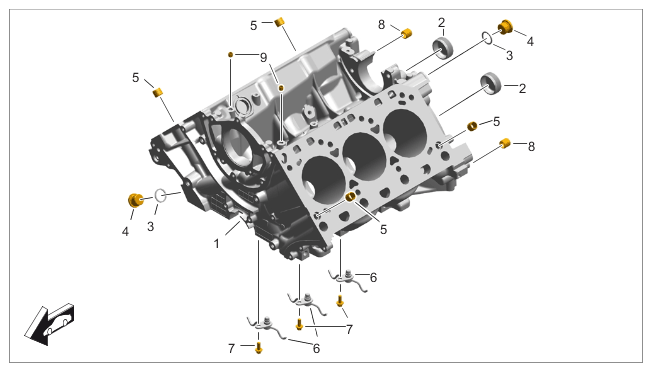

Fig 1: Upper Part Of Crankcase Components Location With Torque Specification
G15197854Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of crankcase

1  Upper part of crankcase
2  Cover
3  Sealing ring/replace
4  Screw plug for upper part of crankcase > Initial tightening 30 Nm (22 ftlb.)  > Torque angle + 60°
5  Dowel sleeve
6  Oil spray jet
7  Screw, M6 > Tightening torque 10 Nm (7.5 ftlb.)
