Removing Oil Spray Jets

Information

• The type of oil spray jets used depends on the engine number. Always check the engine number when ordering new oil spray jets.
• For specific allocations, always check the Porsche Spare Parts Information.
• Adapted software must be installed on the control unit if necessary due to modified oil pressures.

1. Remove oil spray jets -6-  . To do this, loosen screws -7-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper part of crankcase - V8

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

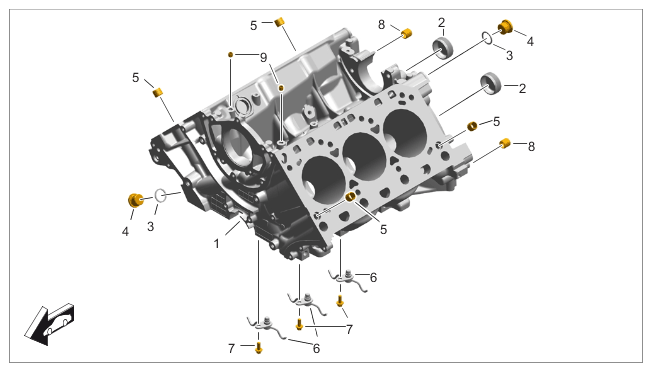

   Upper part of crankcase - V6
