Removing Engine From Engine Carrier (Removing Engine)

WARNING: This page is about a different variant/trim than selected.

Also support engine on the assembly table at the front.
For all-wheel drive vehicles: Loosen front drive shafts on the transmission side
> WM 404119 REMOVING AND REINSTALLING FRONT DRIVE SHAFT (EXCEPT PANAMERA, PANAMERA S, PANAMERA S E-HYBRID, PANAMERA S HYBRID, PANAMERA S EXECUTIVE, PANAMERA GTS, PANAMERA TURBO S, PANAMERA PLATINUM ED., PANAMERA 4 PLATINUM ED.) - portion on "Removing"
Disconnect engine noun: on both sides from underneath
> 103519 REMOVING AND INSTALLING ENGINE MOUNT - portion on "Removing"
Disconnect front PDCC expansion hose.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

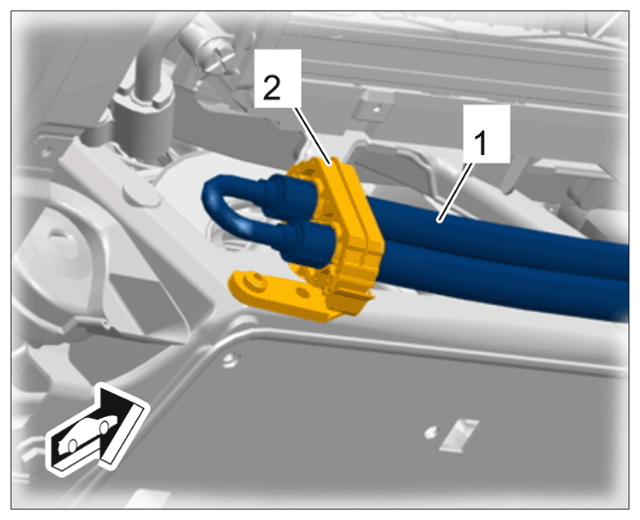

Disconnecting expansion hose

Open the clamp -2- .

Disconnect expansion hose -1- .
Disconnect servo line at the steering gear
> WM 489419 REMOVING AND INSTALLING HOSE FOR POWER STEERING (EXCEPT PANAMERA GTS, PANAMERA TURBO S, PANAMERA PLATINUM ED., PANAMERA 4 PLATINUM ED.) - portion on "Removing"
Loosen design cover over cylinder bank 1 to expose the retaining eyebolts
> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)

Only for 3.6 l & 4.8 l engines.
Lift engine off engine carrier.
Carefully lift the engine initially using a workshop crane.

> 1001IN LIFTING THE ENGINE (WORKSHOP CRANE)

Make sure that the engine can be lifted up further without squashing or tilting components.

Secure loose components and auxiliary units.

Raise the engine.
Move elevating platform out from under the engine.
