Vacuum Pump
Vacuum Pump
WARNING:
This page is about a different variant/trim than selected.

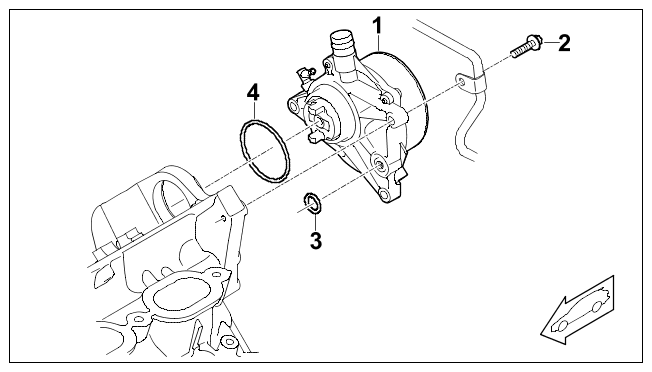

Fig 1: Vacuum Pump Components Location With Torque Specification
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Vacuum pump
1
Vacuum pump
2
Screw. M6 x 25 >
Tightening torque 10 Nm (7.5 ftlb.)
3
Sealing ring
4
Sealing ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
