Knock Sensor

WARNING: This page is about a different variant/trim than selected.

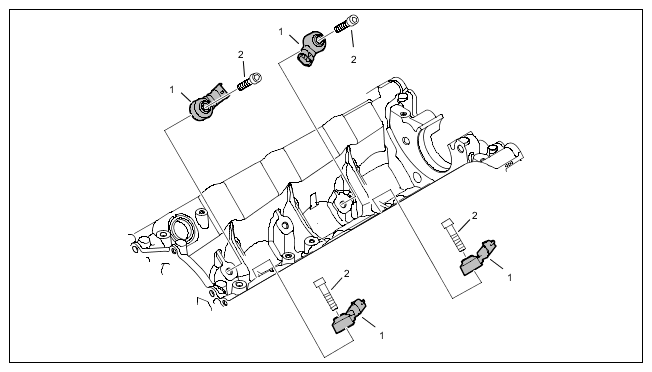

Fig 1: Knock Sensors Components Location With Torque Specification
G15197612Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Knock sensors

1  Knock sensor
2  Screw. M8 x 35 > Tightening torque 23 Nm (17 ftlb.)
