Generator And Starter

WARNING: This page is about a different variant/trim than selected.

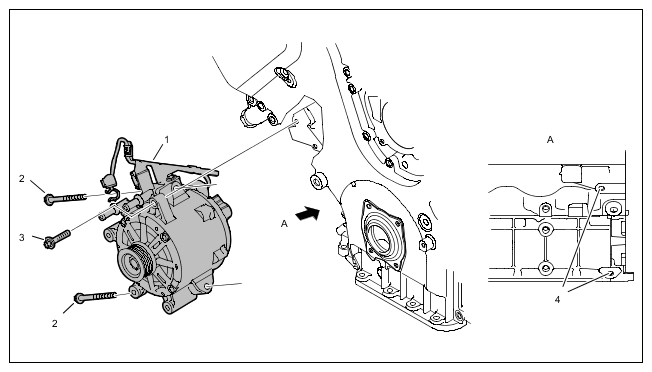

Fig 1: Generator Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Generator

1	Generator
2	Screw. M8 x 95 > Tightening torque 23 (1 7 ftlb.) Nm
3	Screw. M8 x 35 > Tightening torque 23 Nm (17 ftlb.)
4	Bores for screws, M8 x 95
A	View

Location	Description	Type	Basic value
Nut for B+ line to generator	M8 - Item 1	Tightening torque	15 Nm

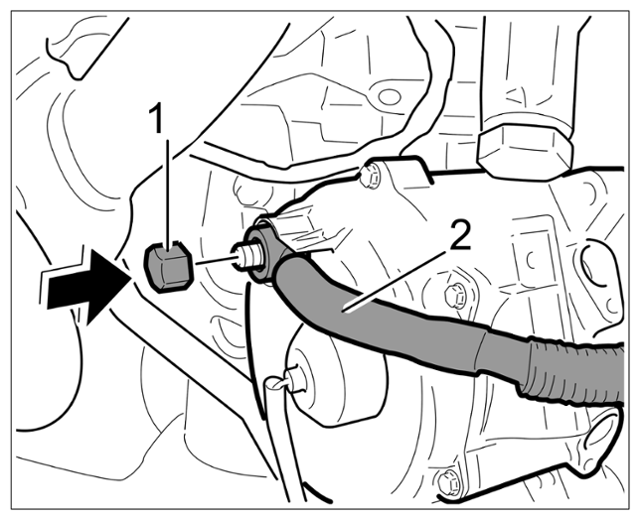

Courtesy of PORSCHE CARS NORTH AMERICA, INC. B+ line at the generator
Screw on generator	M6	Tightening torque	10 Nm (7.5 ftlb.)

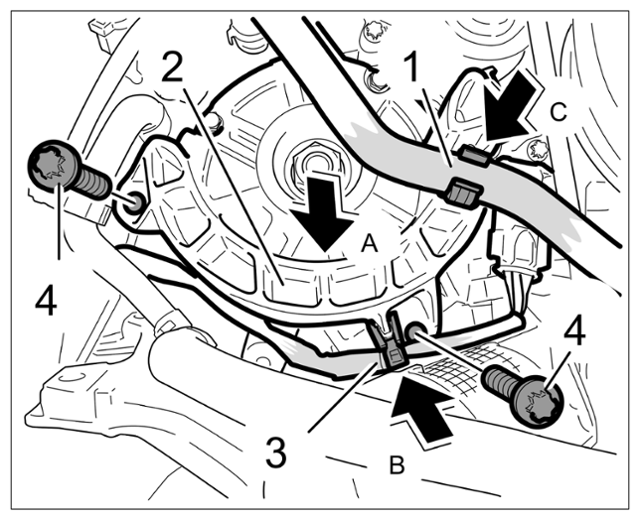

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for three-phase generator lines
Screws securing crash console to three-phase generator	M6 - Item 4	Tightening torque	10 Nm

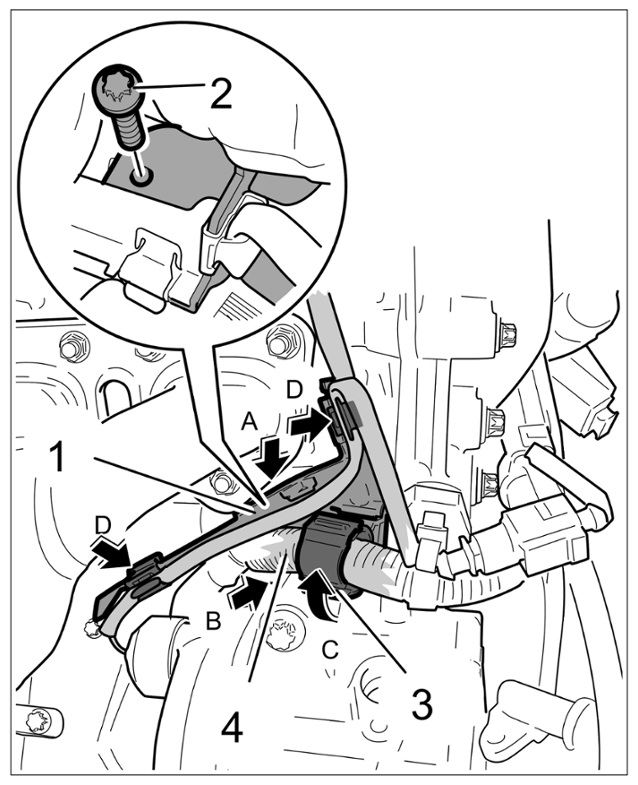

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Crash console
Screw securing ground cable to generator	M8 - Item 1	Contact force	20 Nm

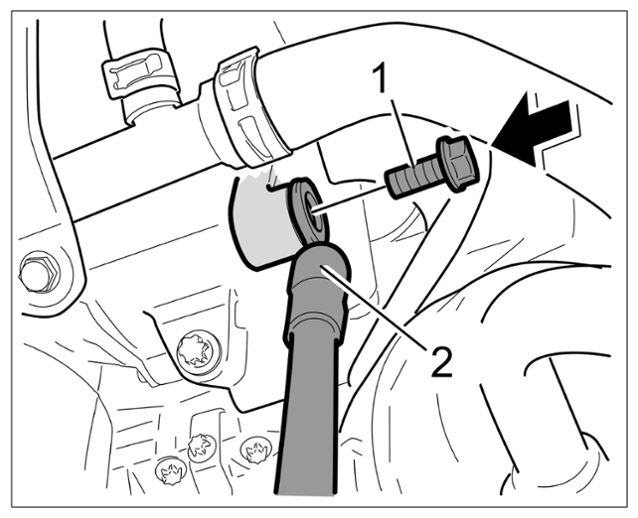

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing ground strap on generator

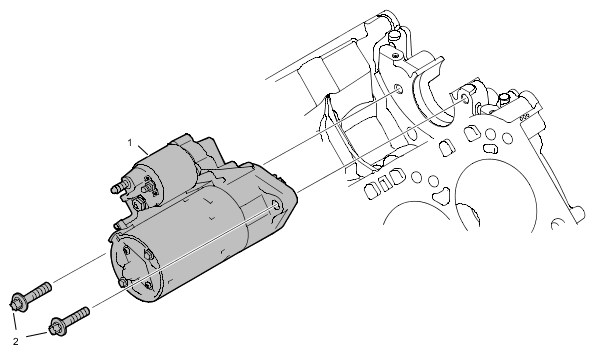

Fig 2: Starter Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Starter

1	Starter; Start Stop starter is larger
2	Screw. M1 Ox 45 > Tightening torque 45 Nm (33 ftlb.)

Location	Description	Type	Basic value	Tolerance
Nut securing B+ line to starter		Tightening torque	18 Nm
Nut for electric line to starter		Tightening torque	6.5 Nm
