Tools And Materials

WARNING: This page is about a different variant/trim than selected.

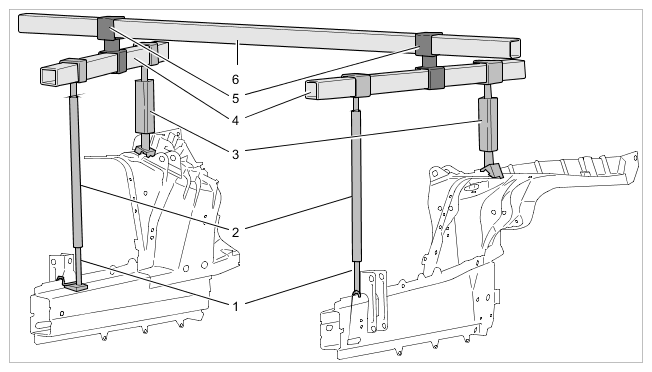

G15197404

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Complete setup on longitudinal members and spring strut domes

1	2x > T40093/50 - base
2	2 x > T40093/3P - Support
3	2 x > T40091/50-51 - support
4	2 x > T40091/1 - pipe
5	2 x joiner between 4 and 6 > T40091/3 - joiner
6	1 x > 10-222A - Catching fixture

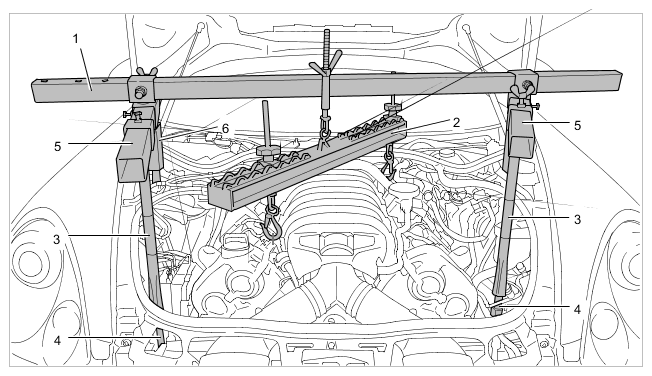

G15197405

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front view of engine safety device

1	1 x > 10-222A - Catching fixture
2	1 x > 3033 - lifting tackle
3	2 x > T40093/3P - Support
4	2 x > T40093/50 - base
5	2 x > T40091/1 - pipe
6	2 x > T40091/50-51 - support
ohne Nummer	Joiner between 1 and 5 > T40091/3 - joiner

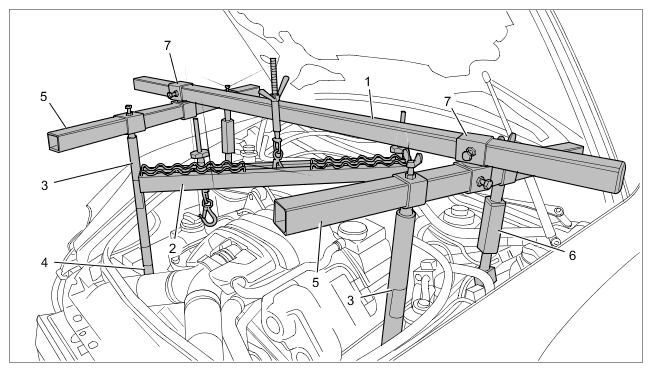

G15197406

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side view of engine safety device

1	1 x > 10-222A - Catching fixture
2	1 x > 3033 - lifting tackle
3	2 x > T40093/3P - Support
4	2 x > T40093/50 - base
5	2 x > T40091/1 - pipe
6	2 x > T40091/50-51 - support
7	2 x joiner between 1 and 5 > T40091/3 - joiner
