Securing Engine To Engine Crane
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Heavy components
- Risk of squashing
- Wear personal protective gear.
- Get someone to help if necessary.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
- Secure components to prevent them from falling down.
Information
The pictures shown in this document may differ from the original.
Information

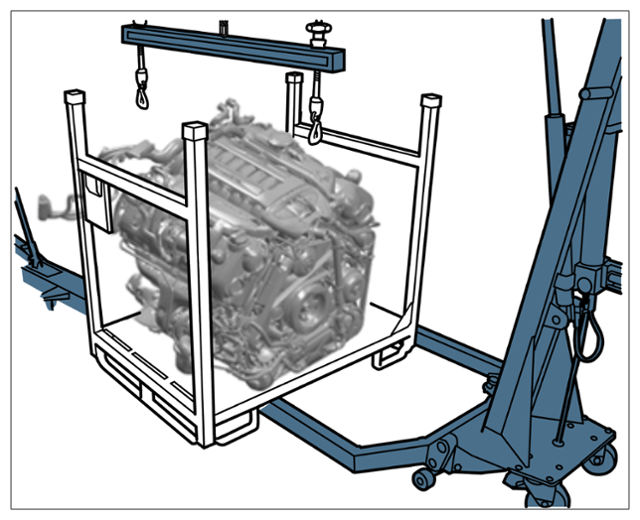

Workshop crane and transport frame
- When removing the new engine from the transport frame, it may be necessary to raise the transport frame at the side (flat jack or similar). > Workshop crane and transport frame
- When removing the new engine from the transport frame, it may be necessary to safeguard the engine against lateral movement using a second worker and against scratching by covering it with a blanket.
- Remove design cover on engine if necessary.
> 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER)
- Engage one hook of the > 3033 - lifting tackle
in the rear transport eyebolt on the engine. Engage the other hook of the lifting tackle at the front of the engine. Raise the workshop crane slightly and tension the spindles slightly. The lifting tackle must be adjusted evenly. > Workshop crane and engine (V8 shown)

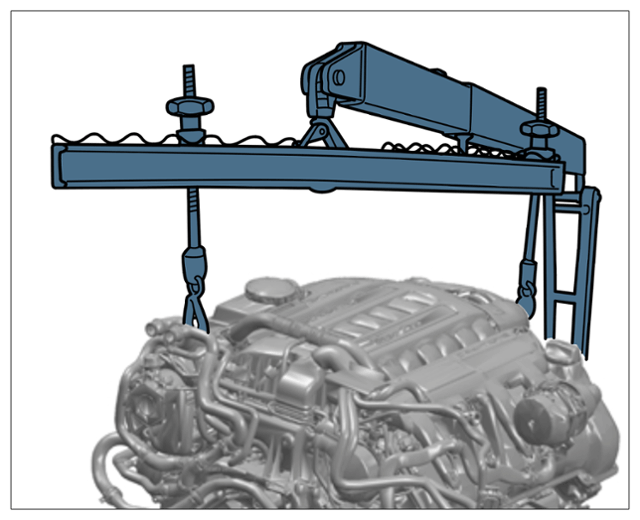

Workshop crane and engine (V8 shown)
- Carefully lift the engine and balance it or separate the engine from the transmission, depending on what you want to do.
