Installing Seat Cross Member: Notes

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

   Fig 1: Applying Adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit and secure the seat cross member.

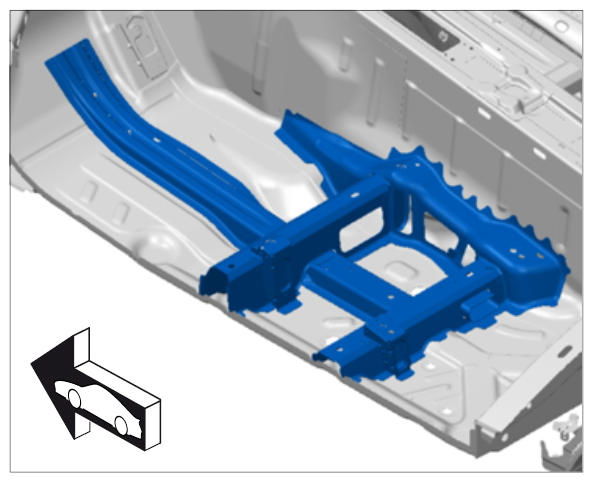

   Fig 2: Fitting Seat Cross Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Rivet in seat cross member.
   1. -A-  → BLIND RIVET 999.190.229.01
   2. -B-  → BLIND RIVET 999.190.227.01

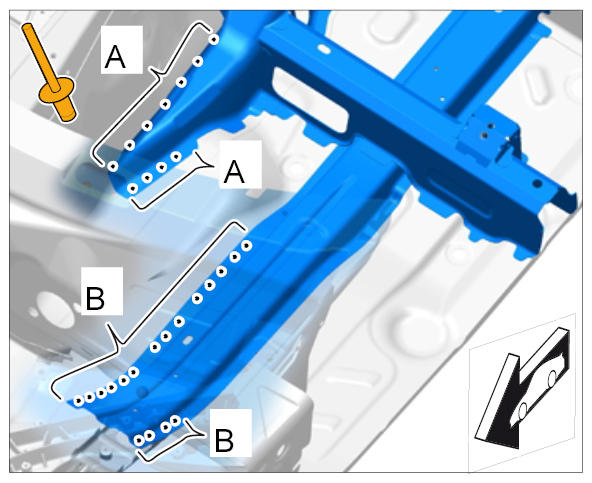

      Fig 3: Installing Rivet In Seat Cross Member (1 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 4: Installing Rivet In Seat Cross Member (2 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Resistance spot-weld the seat cross member.

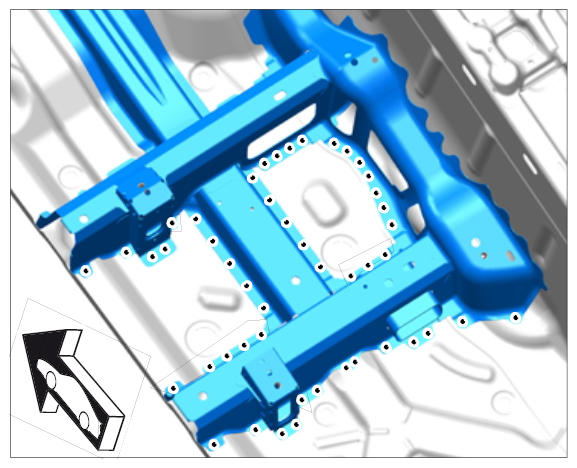

   Fig 5: Identifying Seat Cross Member Welding (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

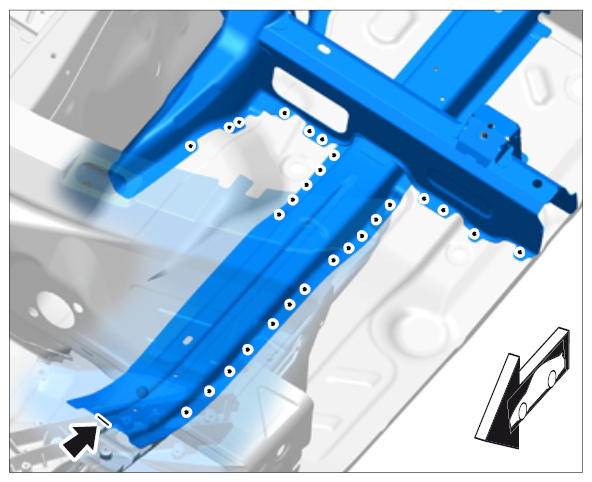

   Fig 6: Identifying Seat Cross Member Welding (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Spot-weld the seat cross member using inert gas -arrow-  .

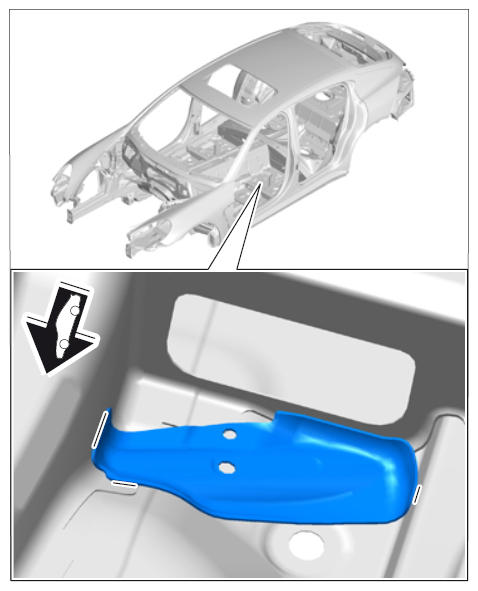

6. Install rear gusset plate.
   1. 6.1. Fit and secure the rear gusset plate.
   2. 6.2. Spot-weld using inert gas.
      Fig 7: Installing Rear Gusset Plate

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Install lower side member reinforcement. → Installing Side Member Reinforcement
