Installing Side Member Reinforcement

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

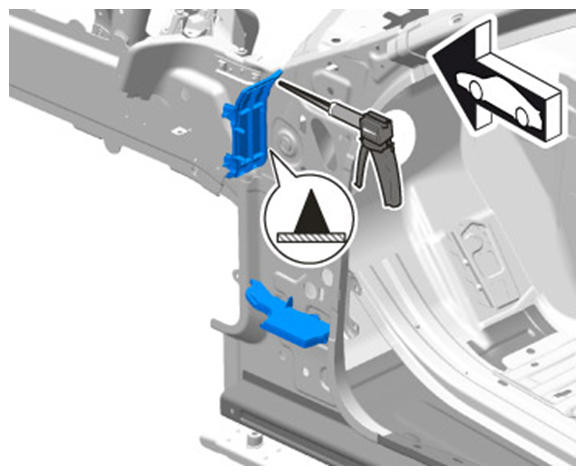

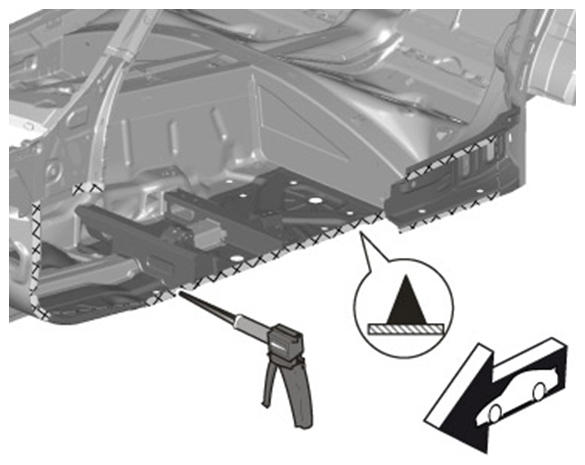

1. Apply adhesive.
   1. 1.1. Apply adhesive. → Application depth: 3.0 mm

      Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

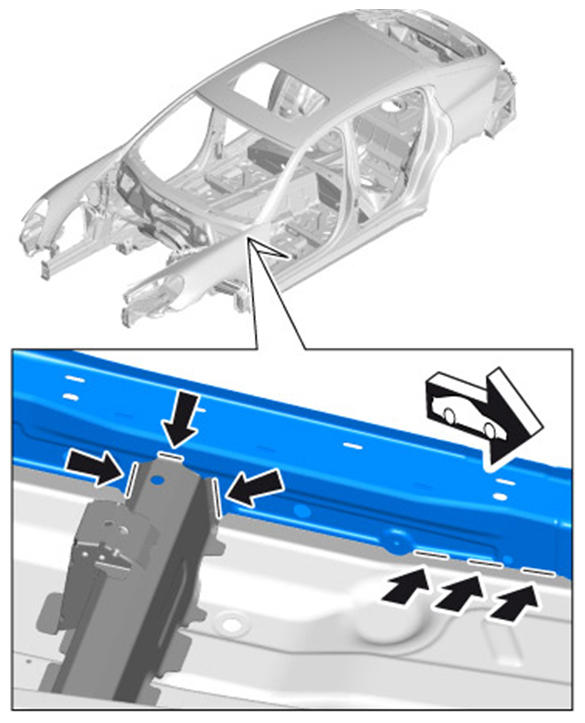

      Fig 1: Installing Side Member Reinforcement

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

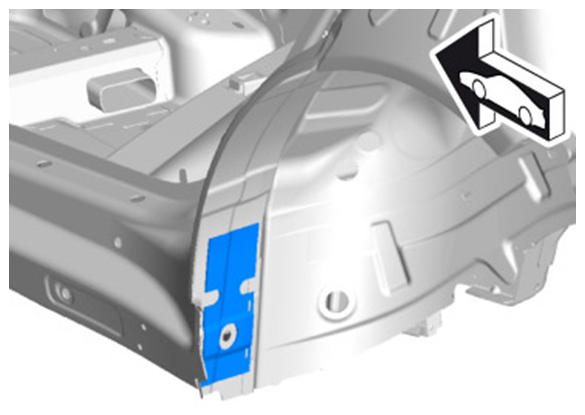

2. Fit inner A-pillar panel, side member inner panel and side member reinforcement, A-pillar reinforcement, B-pillar inner panel and reinforcement and (outer) rear wheel housing section.

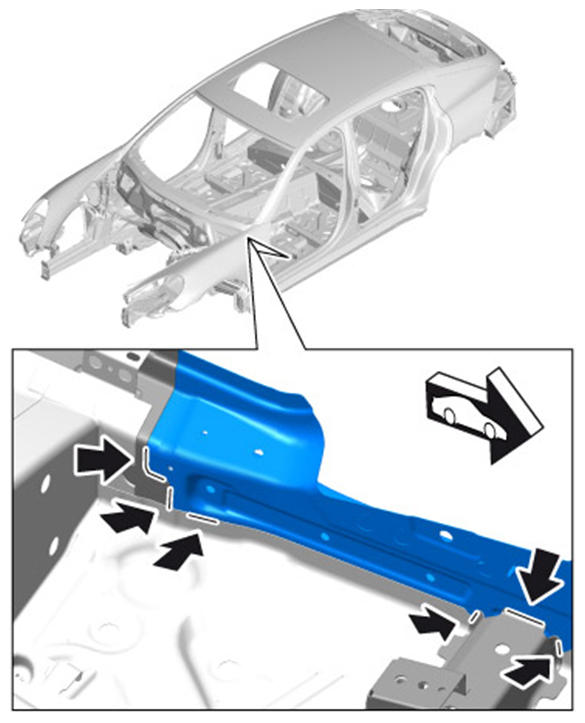

   Fig 2: Installing Side Member Reinforcement

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

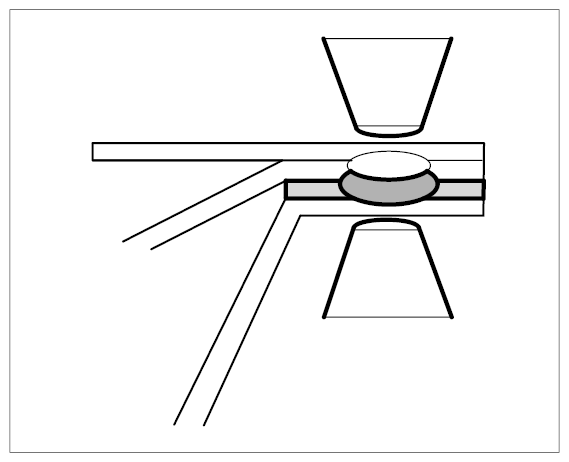

   Once the spare parts have been fixed in place, repair spotwelds A  must be placed exactly on the old spotwelds because there is no current flow possible in areas with a hardened adhesive layer.

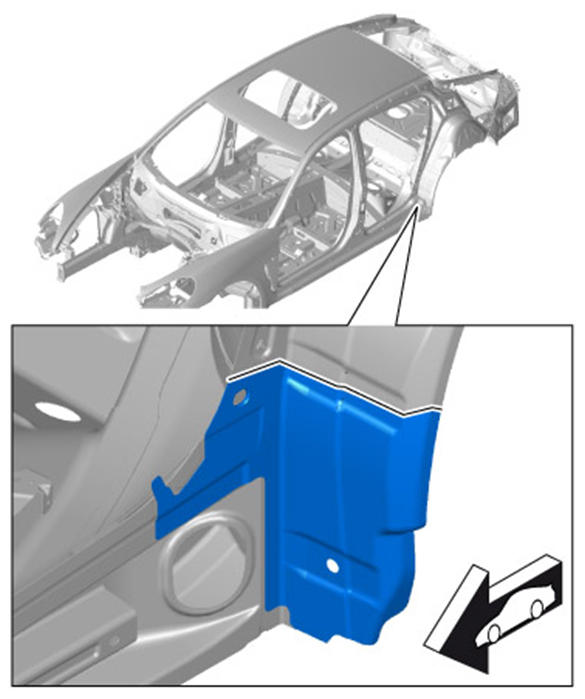

   Fig 3: Identifying Spot-Welding Body Components

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

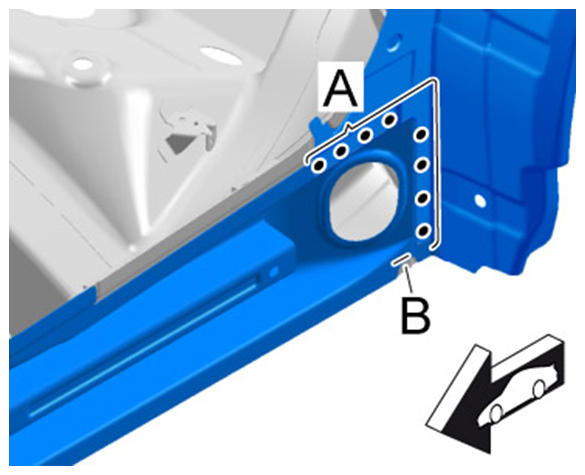

3. Resistance spot-weld side member reinforcement.
4. Remove A-pillar reinforcement, inner panel and B-pillar reinforcement.

   Information

   Once the spare parts have been fixed in place, repair spotwelds A  must be placed exactly on the old spotwelds because there is no current flow possible in areas with a hardened adhesive layer.

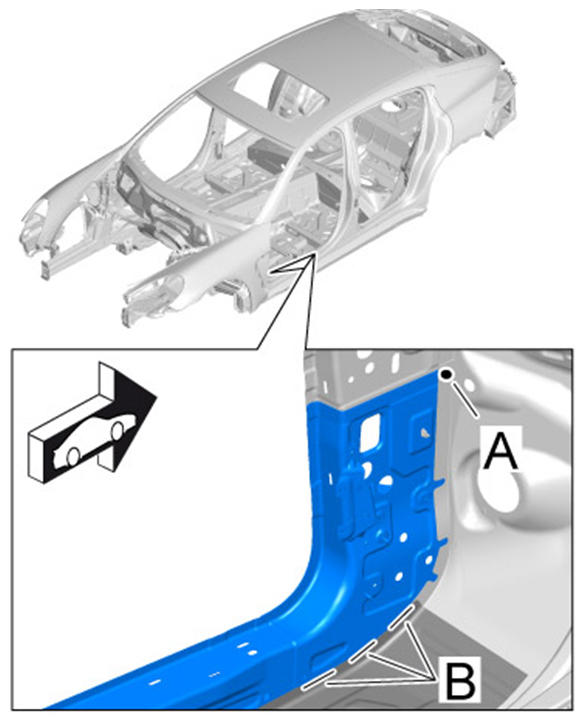

   Fig 4: Identifying Spot-Welding Body Components

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

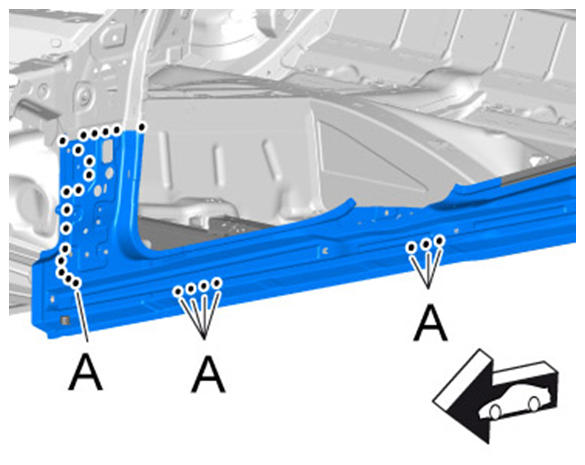

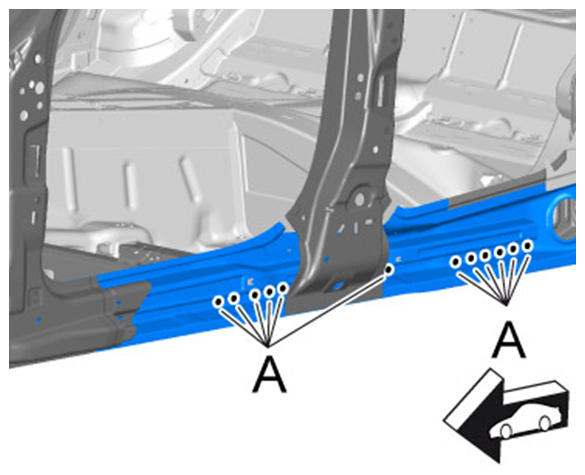

5. Resistance spot-weld inner A-pillar panel and side member reinforcement.

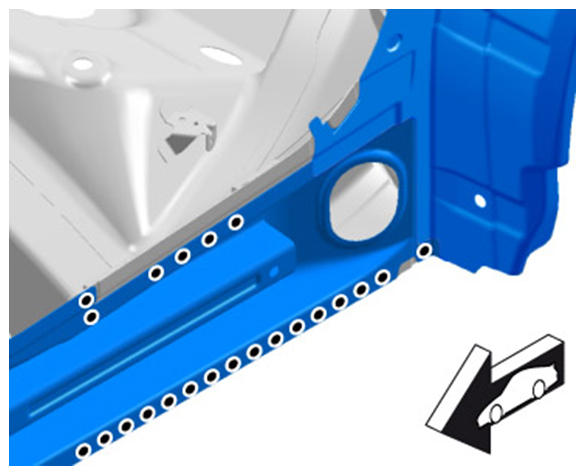

   Fig 5: Installing Side Member Reinforcement (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 6: Installing Side Member Reinforcement (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

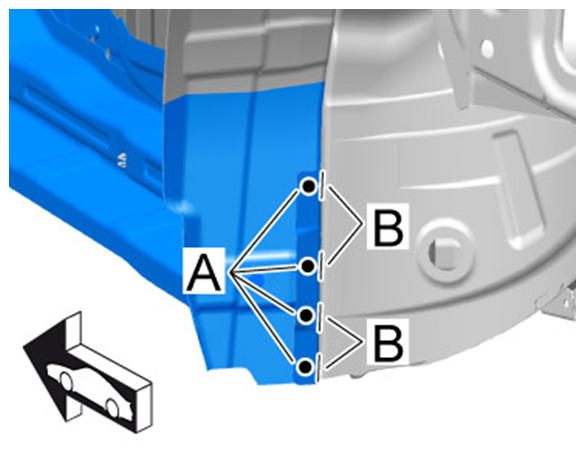

6. Weld in side member inner panel and (outer) rear wheel housing.
   1. 6.1. Plug-weld using inert gas -A-  .
   2. 6.2. Spot-weld using inert gas -B-  .
      Fig 7: Installing Side Member Reinforcement

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Apply a full weld using inert gas.
   Fig 8: Installing Side Member Reinforcement

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Plug-weld the inner A-pillar panel using inert gas -A-  .
   Fig 9: Installing Side Member Reinforcement

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Apply a welded seam to the inner A-pillar panel using inert gas -B-  .
10. Apply a welded seam to the side member inner panel using inert gas -arrows-  .
    Fig 10: Installing Side Member Reinforcement (1 Of 2)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    Fig 11: Installing Side Member Reinforcement (2 Of 2)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Resistance spot-weld side member reinforcement -A-  .
12. Apply a welded seam to the side member reinforcement using inert gas -B-  .
Fig 12: Installing Side Member Reinforcement
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
13. Apply body sealant to the sealing element. Bond sealing elements.

    Wurth Klebt und Dichtet body sealant

    Fig 13: Installing Sealing Elements

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Stick on insulating mat.
    Fig 14: Installing (Outer) Rear Wheel Housing

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
15. Install A-pillar reinforcement. → Installing A-Pillar Reinforcement
16. Install B-pillar reinforcement. → Installing B-Pillar Reinforcement
