Installing Rear Cross Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Apply adhesive to the left and right side. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

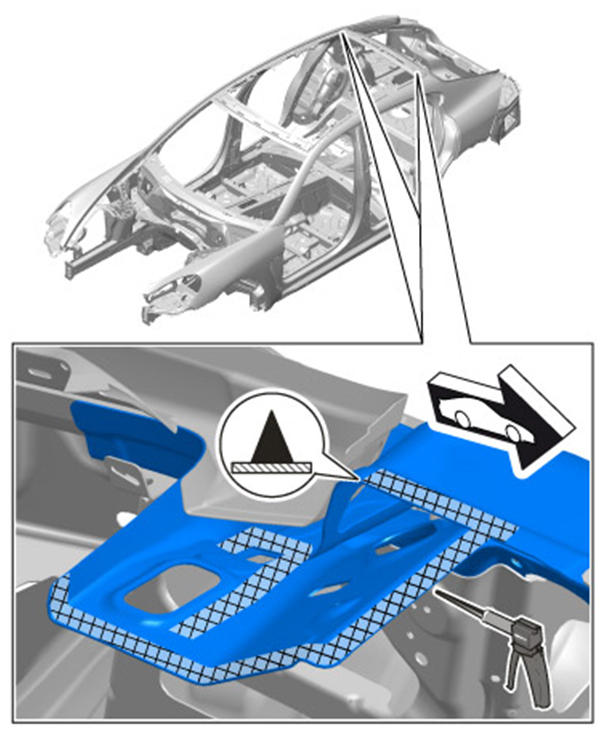

   Fig 1: Installing Rear Cross Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Rivet in the rear cross member on the left and right side → BLIND RIVET 000.043.207.57.

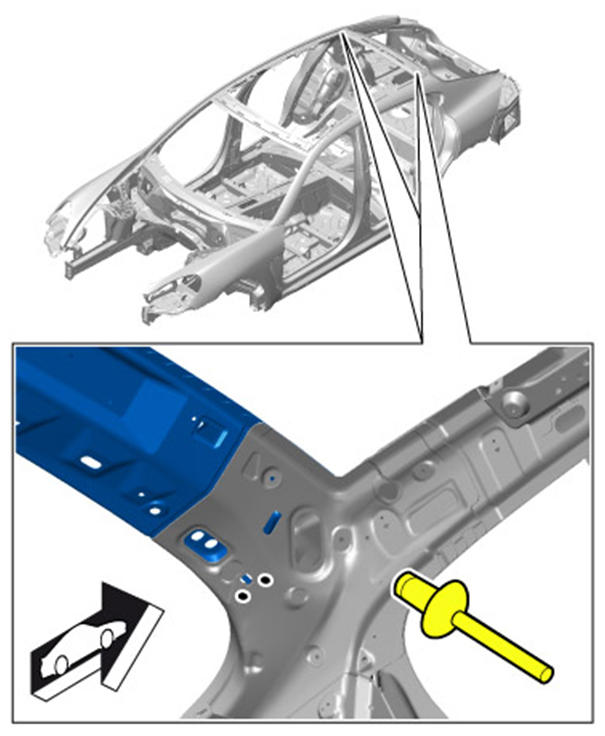

   Fig 2: Installing Rear Cross Member

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Resistance spot-weld the rear cross member on the left and right side.

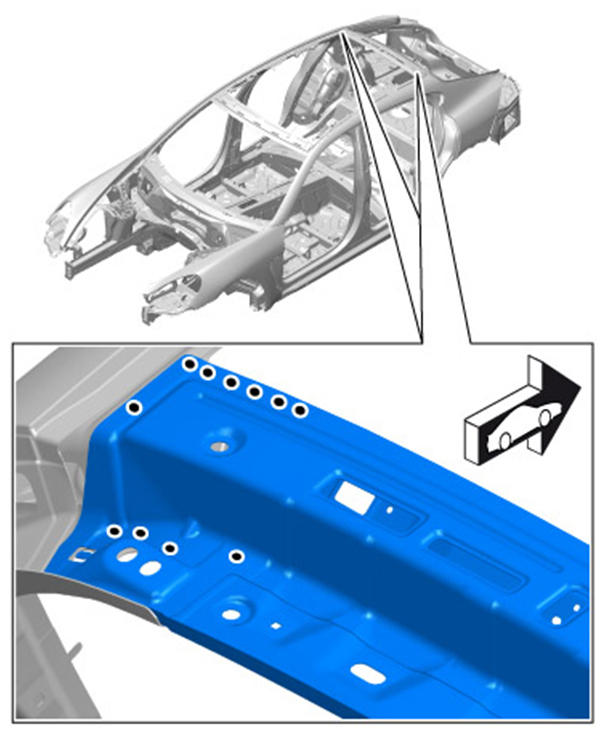

   Fig 3: Installing Rear Cross Member (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

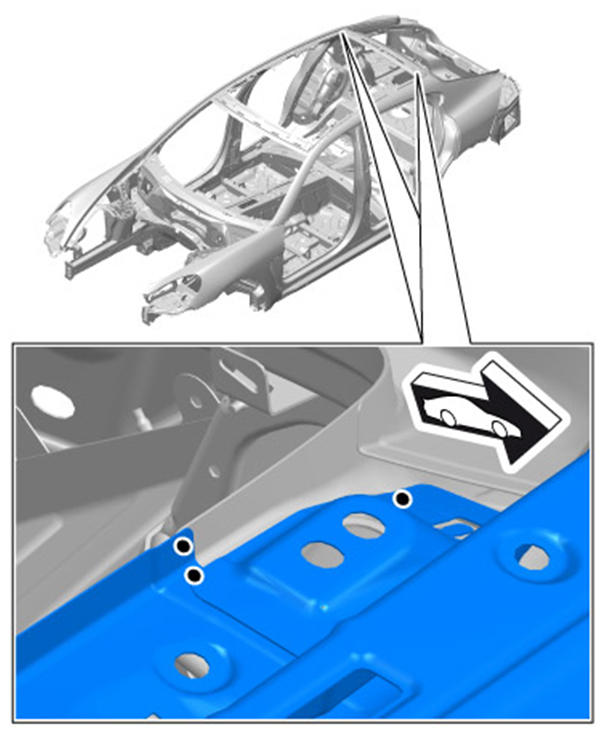

   Fig 4: Installing Rear Cross Member (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Install roof. → Installing Roof
