Installing Roof

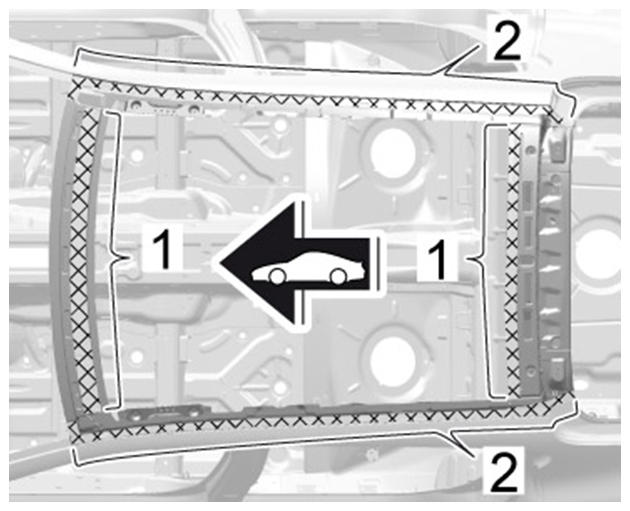

Apply adhesive.
1. 1.1. Apply sealing adhesive -1- .
2. 1.2. Apply structural adhesive -2- .

  Fig 1: Applying Adhesive
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet in the roof.

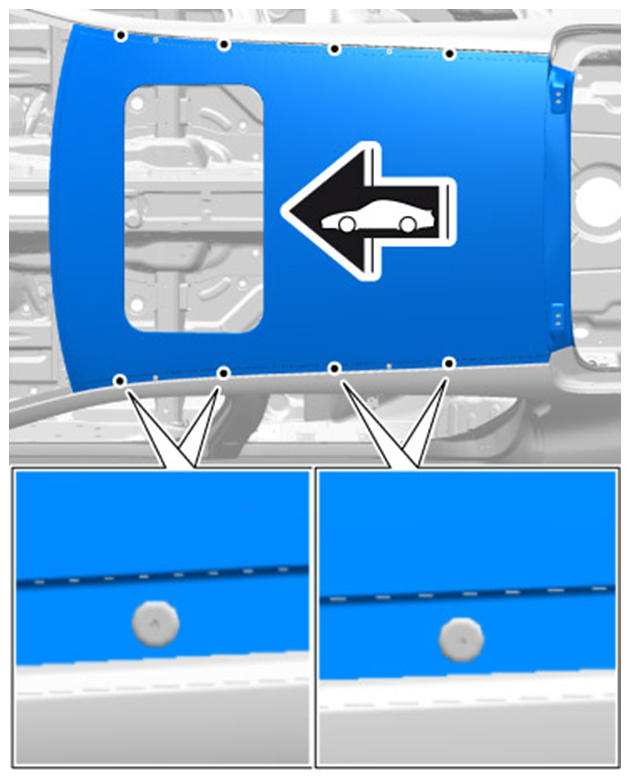

Fig 2: Identifying Vehicle Roof Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Set rivet nuts. Blind rivet nut manual device Nr.125

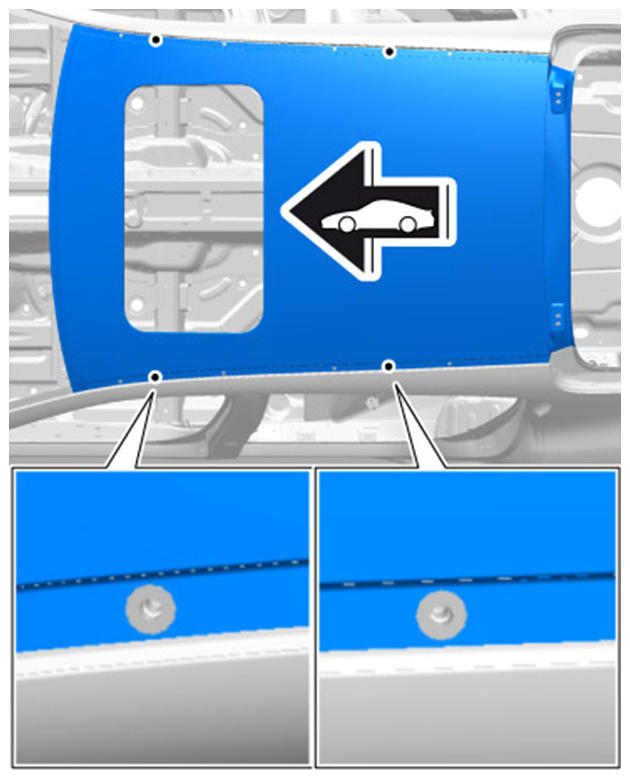

Fig 3: Identifying Vehicle Roof Rivet Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance spotweld the roof.

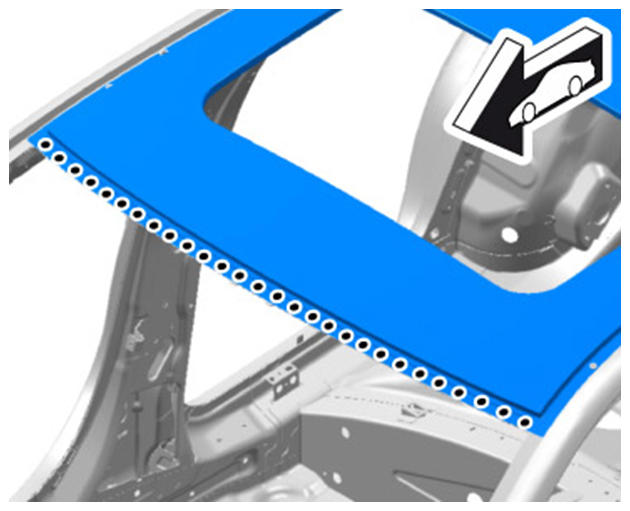

Fig 4: Identifying Roof Welding (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

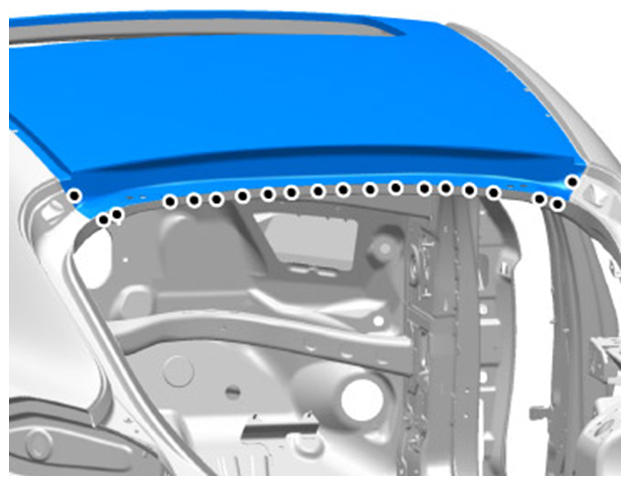

Fig 5: Identifying Roof Welding (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

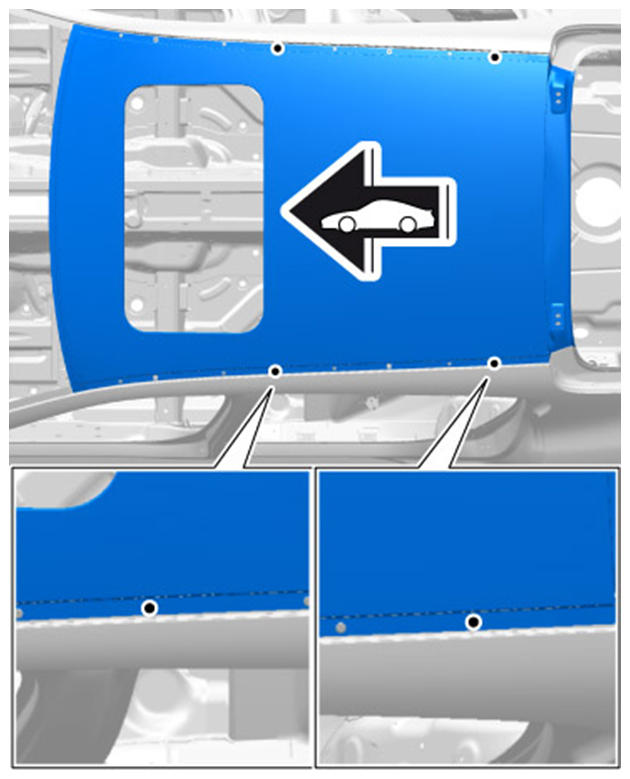

Fig 6: Identifying Roof Welding (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

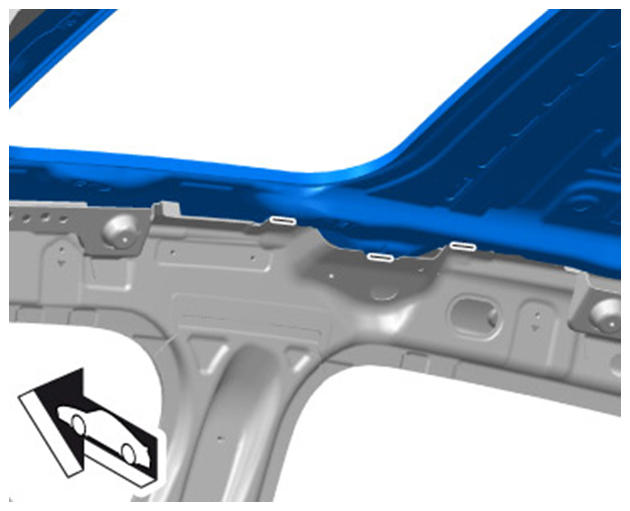

MAG-weld the roof.

Fig 7: Identifying Roof Welding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Apply adhesive.
1. 1.1. Apply sealing adhesive -1- .
2. 1.2. Apply structural adhesive -2- .

  Fig 1: Applying Adhesive
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet in the roof.

Fig 2: Identifying Vehicle Roof Rivets
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Set rivet nuts. Blind rivet nut manual device Nr.125

Fig 3: Identifying Vehicle Roof Rivet Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance spot-weld the roof.

Fig 4: Identifying Roof Welding (1 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 5: Identifying Roof Welding (2 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 6: Identifying Roof Welding (3 Of 3)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
MAG-weld the roof.

Fig 7: Identifying Roof Welding
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
