Installing Roof Pillar

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Apply adhesive. → Application depth: 3.0 mm

   Working with body structural adhesive → 5X00IN WORKING WITH BODY STRUCTURAL ADHESIVE

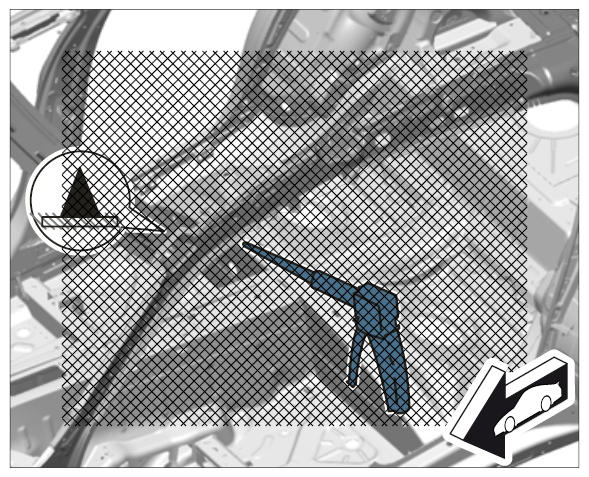

   Fig 1: Applying Adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Fit roof pillar and secure in installation position with the straightening bracket.

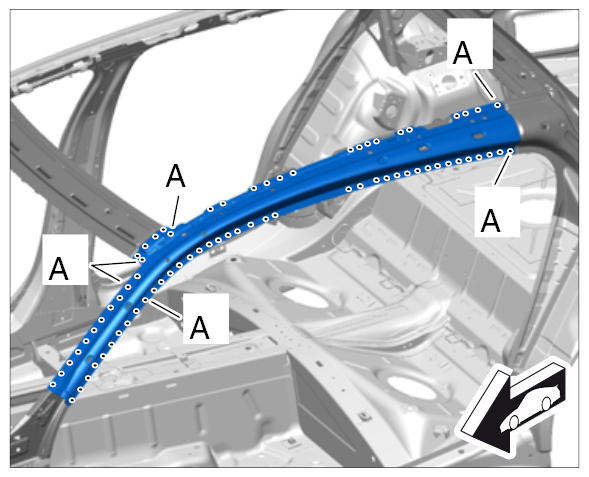

   Fig 2: Fitting Roof Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Once the spare parts have been fixed in place, repair spotwelds A  must be placed exactly on the old spotwelds because there is no current flow possible in areas with a hardened adhesive layer.

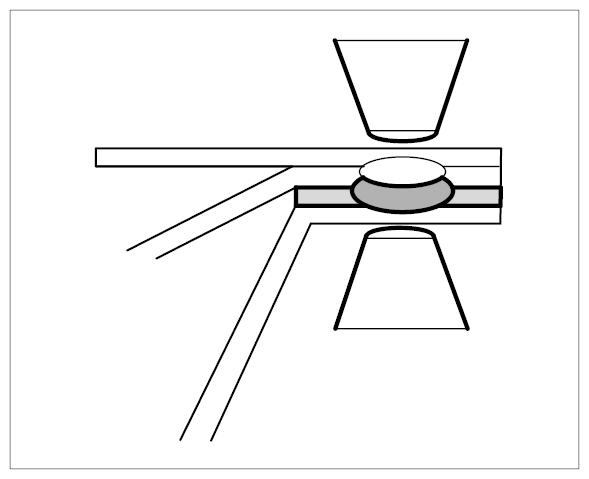

   Fig 3: Identifying Spot-Welding Body Components

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Resistance spot-weld the roof pillar.

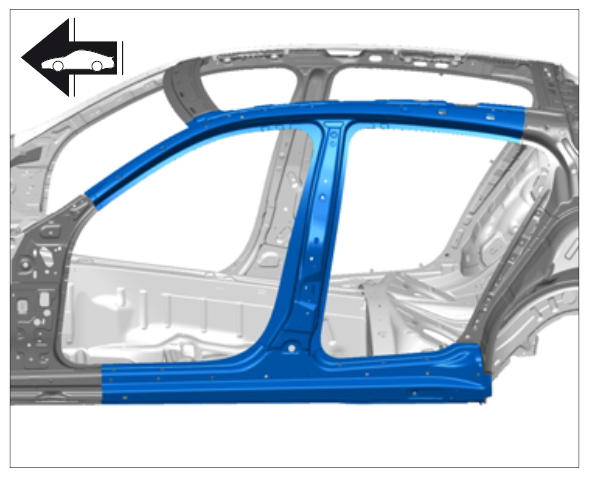

   Fig 4: Identifying Roof Pillar Welding

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Install rear side panel (roof removed). → Installing Rear Side Panel (Roof Removed)
5. Install B-pillar reinforcement. → Installing B-Pillar Reinforcement
6. Install A-pillar. → Installing A-Pillar
