Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove engine compartment lid. → 557819 REMOVING AND INSTALLING ENGINE COMPARTMENT LID
  2. Secure the engine in installation position using support bracket 10-222 A  at the engine lifting bracket.

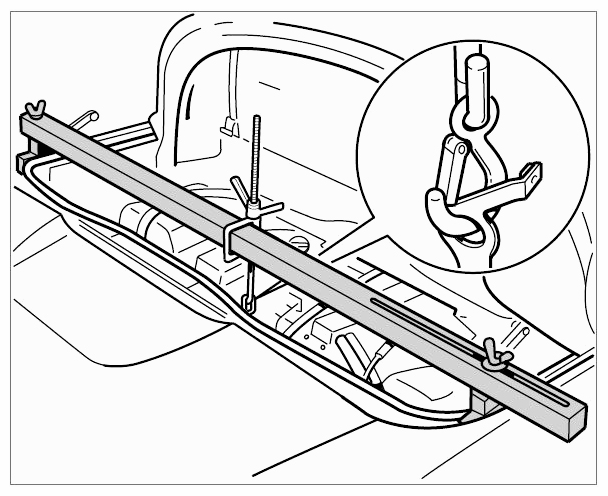

    Fig 1: Securing Engine Installation Position Using Support Bracket 10-222 A
    G09586897Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Raise the vehicle at the prescribed jacking points. → Lifting The Vehicle
  4. Remove support plate. → Removing Support Plate
  5. Remove multi-functional switch. → Removing Multi-Functional Switch
