Installing Brake Booster

WARNING: This page is about a different variant/trim than selected.
  1. Carefully fit the brake booster into the vehicle.
  2. Fit the fastening nuts -1-  for the brake booster under the dashboard.

    > 4X00IN TIGHTENING TORQUES FOR BRAKE MECHANICS

    G16330547Courtesy of PORSCHE CARS NORTH AMERICA, INC.

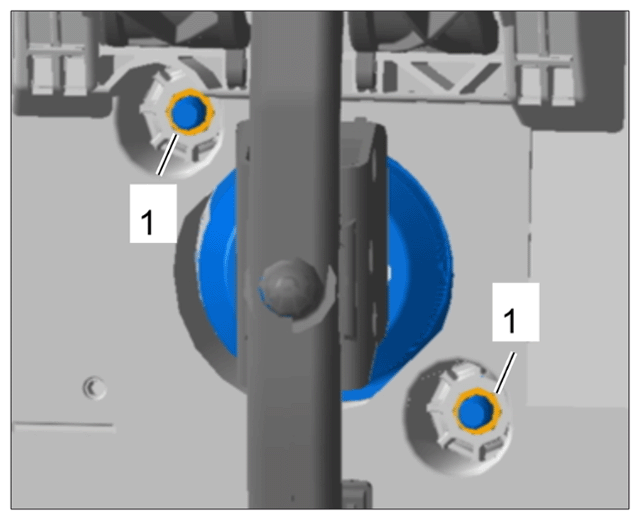

    Fitting brake booster

  3. Fit the brake booster push rod in the brake pedal.
    1. 3.1 Press the brake pedal forward until the ball joint engages in the mounting point.

      > 460519 Removing and installing brake pedal - section on "INSTALLING "

  4. Carefully fit the vacuum line -1-  into the brake booster -2-  .
    G16330548Courtesy of PORSCHE CARS NORTH AMERICA, INC.

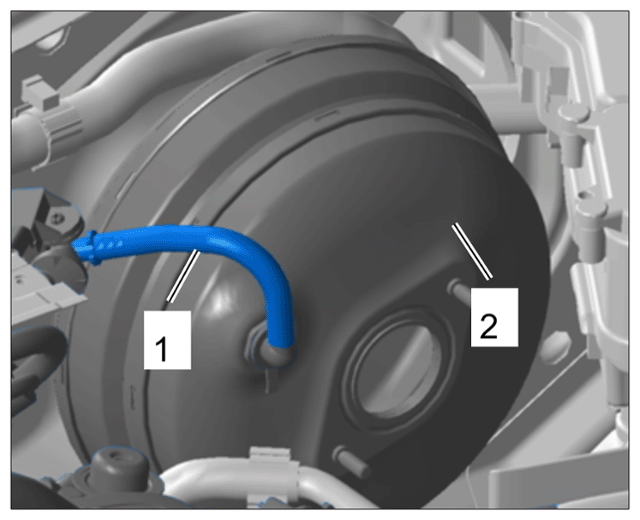

    Vacuum line on brake booster
