Installing Brake Pedal

Information

• Do not grease or spray the brake pedal shaft (pin).
• For vehicles with automatic transmission a spacer tube is used instead of the clutch pedal.
• Use new lock nuts.
• Observe correct tightening torques

  > "Technical values"

• Tightening torque for brake pedal shaft (pin): 15 ± 2 ftlb.

1. Insert the brake pedal into the vehicle.

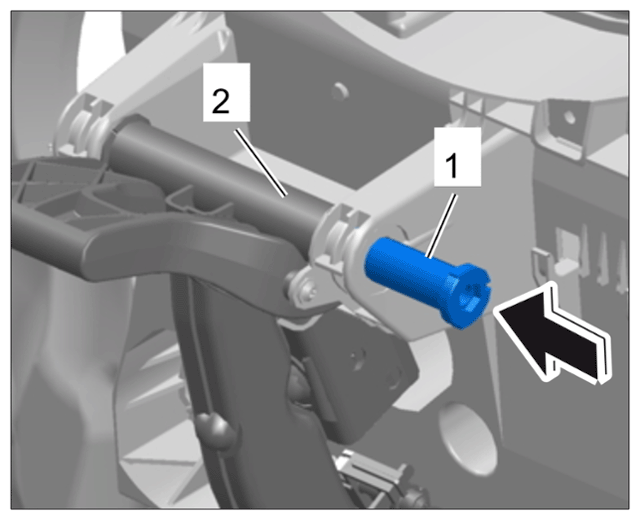

2. Press the brake pedal shaft -1-  fully into the brake pedal -1-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressing in brake pedal shaft

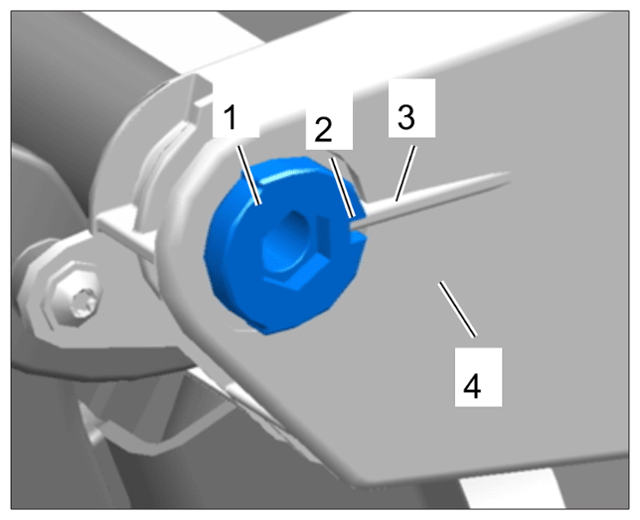

3. When sliding in the brake pedal shaft -1-  , ensure that the cut-out -2-  on the brake pedal shaft fits into the guide -3-  on the holder -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Positioning brake pedal shaft

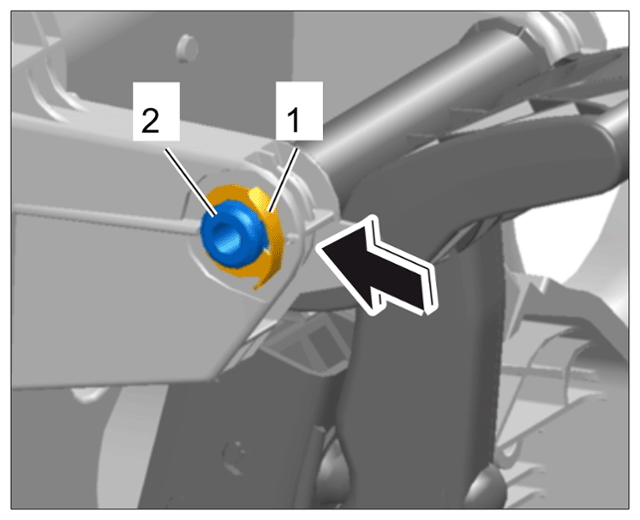

4. Slide the lock -1-  at the left onto the brake pedal shaft -2-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting brake pedal lock

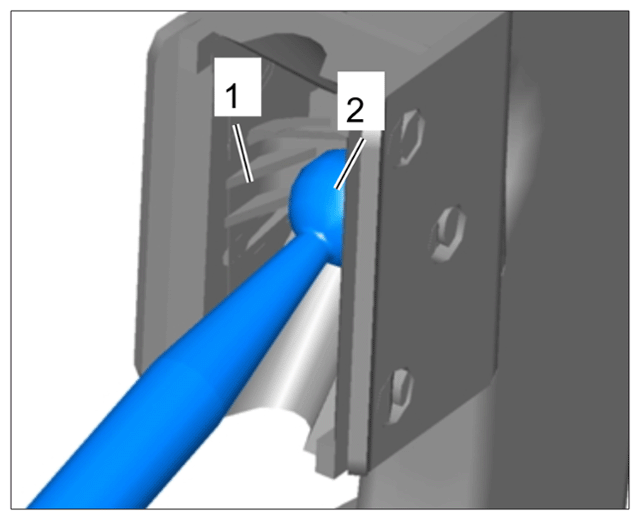

5. Position the brake pedal -1-  on the push rod -2-  for the brake booster.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake pedal on push rod

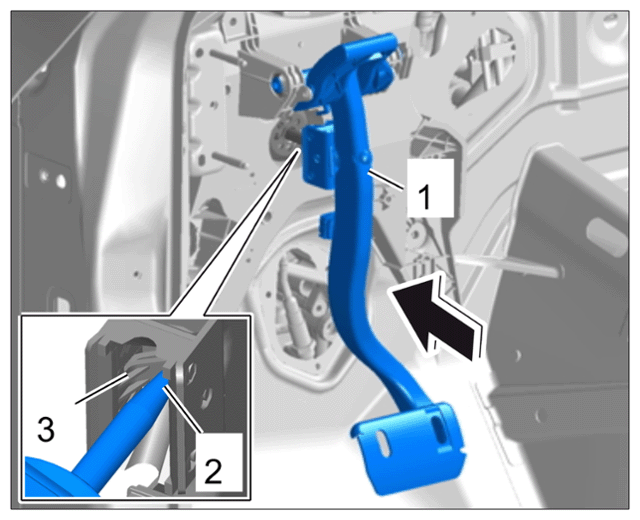

6. Press the brake pedal -1-  through fully -arrow-  until the push rod -2-  clicks into place in the holder -3-  on the brake pedal.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting brake pedal

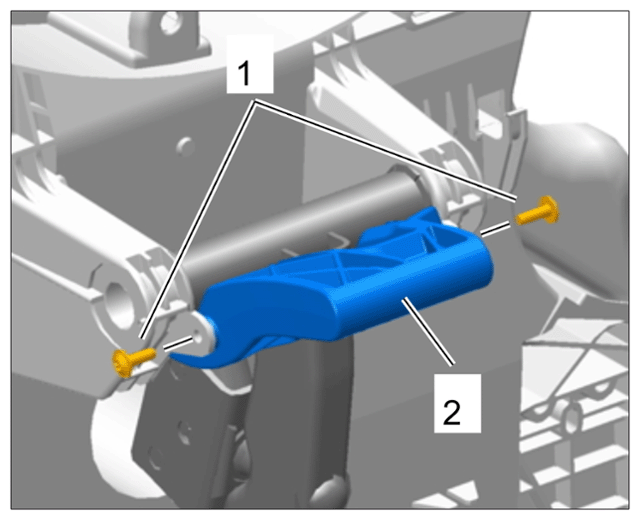

7. Position crash support -2-  on the brake pedal.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crash support

Fit fastening screw -1-  for crash support -2-  .

> 4X00IN TIGHTENING TORQUES FOR BRAKE MECHANISM
