Subsequent Work
WARNING: This page is about a different variant/trim than selected.
Information

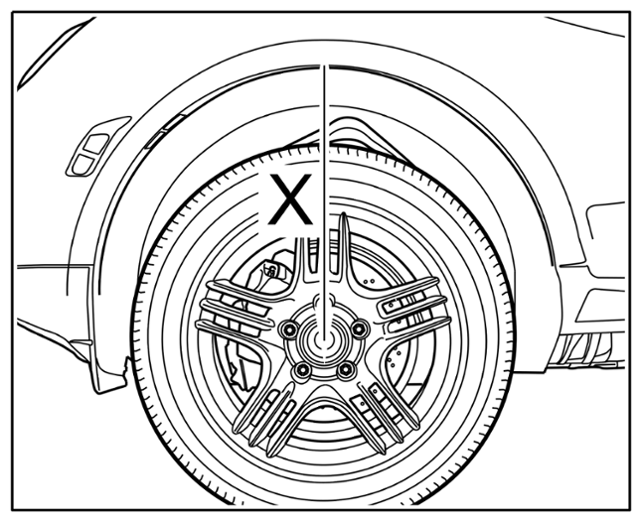

Dimension -X- : lower edge of wing to centre of axle (shown as an example)
- All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack. -Dimension X- from lower edge of wing to centre of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment
- Visually inspect all parts.
- Replace self-locking nuts.
- Replace all expansion screws (screws fitted using torque angle tightening procedure).
- Use correct tightening torques and torque angle.
> Refer to the appropriate Tightening Torques For Front Axle service information
- Install lower trailing arm.
> 401719 Removing and installing lower trailing arm - section on "INSTALLING "
