Installing Lower Trailing Arm

Information

The pictures shown in this document may differ from the original.

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

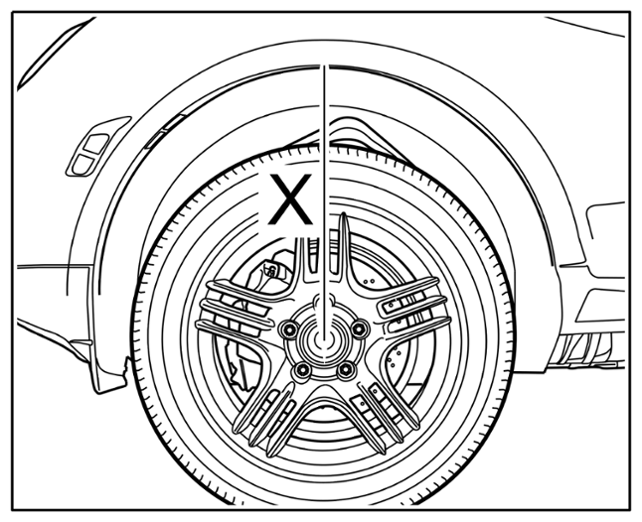

Dimension -X-  : lower edge of wing to centre of axle (shown as an example)

• All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack. -Dimension X- from lower edge of wing to centre of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment

  > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

• Visually inspect all parts.
• Replace self-locking nuts.
• Replace all expansion screws (screws fitted using torque angle tightening procedure).
• Use correct tightening torques and torque angle.

  > Refer to the appropriate Tightening Torques For Front Axle service information

1. Counter with a > 9546 - screwdriver when tightening the ball joints if necessary.
2. Carefully insert the pin for the ball joint into the wheel bearing housing and fit the lock nut. > Inserting ball joint (shown as an example)

   > Refer to the appropriate Tightening Torques For Front Axle service information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

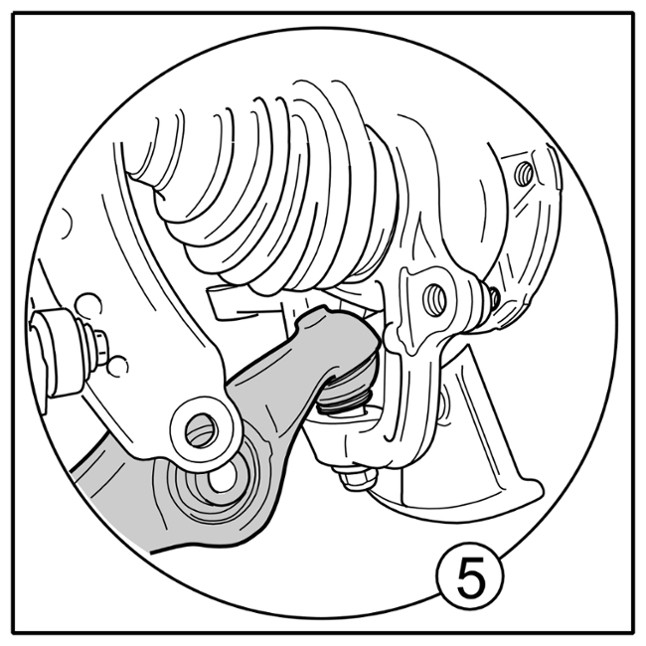

   Inserting ball joint (shown as an example)

3. Press the trailing arm into the mounting points on the chassis subframe -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

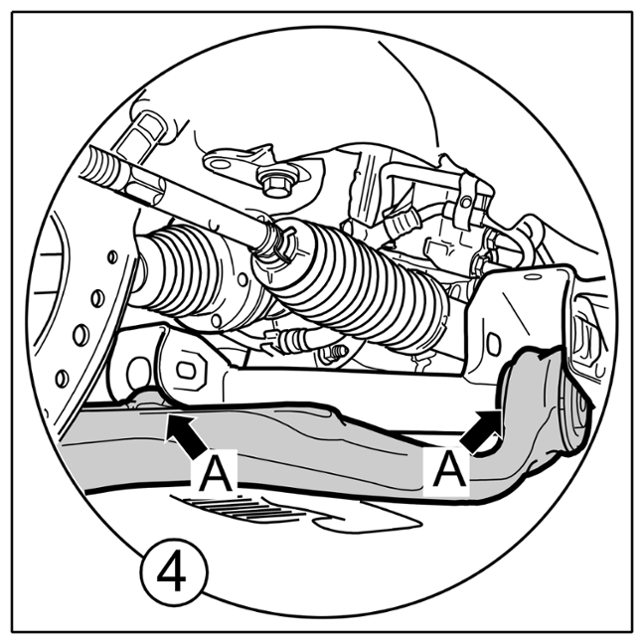

   Installing trailing arm (shown as an example)

4. Insert and fit the eccentric screws -1-  . Fit according to the markings -A, B-  .

   > Refer to the appropriate Tightening Torques For Front Axle service information

   Raise the wheel bearing housing slightly using a suitable jack to avoid damaging the dust bellows for the steering when tightening the eccentric screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

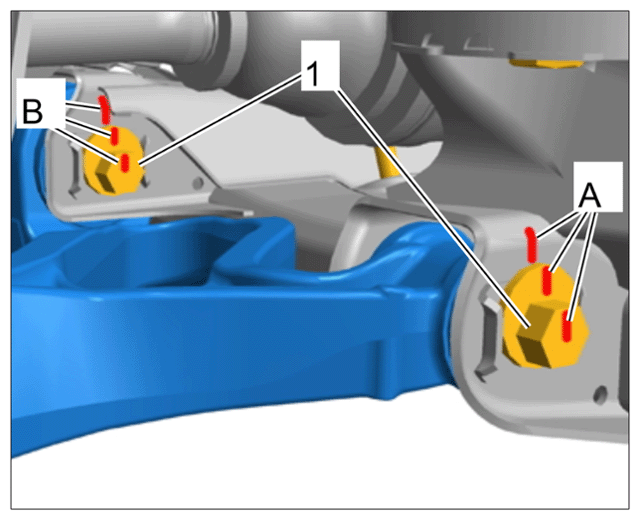

   Marking on eccentric screws

5. Use a suitable jack to raise the trailing arm and remove > VW552 - Spring tensioner-1-  from the upper trailing arm -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Securing upper trailing arm

6. Raise the axle support -1-  as far as required using a suitable jack -4-  until the fastening screw -2-  slides easily through the spring strut -3-  and axle support.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

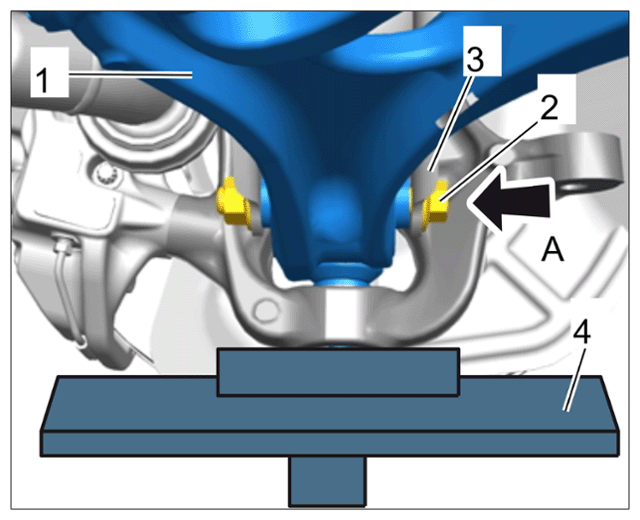

   Spring strut threaded joint

7. Fit the fastening screw -2-  for the spring strut -3-  and trailing arm -2-  .

   > Refer to the appropriate Tightening Torques For Front Axle service information
