Installing Front-Axle Carrier

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

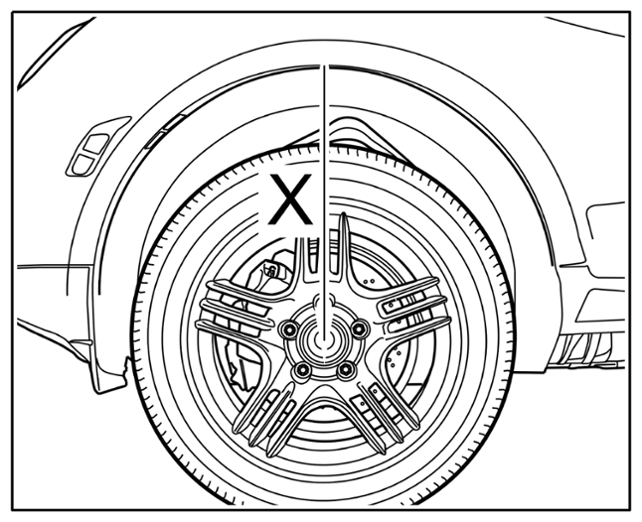

Dimension -X-  : lower edge of wing to centre of axle (shown as an example)

• All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is lifted with a universal jack. -Dimension X- from lower edge of wing to centre of axle corresponds to vehicle position. For the current height values, please refer to the adjustment values for suspension alignment

  > 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

• Visually inspect all parts.
• Replace self-locking nuts.
• Replace all expansion screws (screws fitted using torque angle tightening procedure).
• Use correct tightening torques and torque angle.

  > Refer to the appropriate Tightening Torques For Front Axle service information

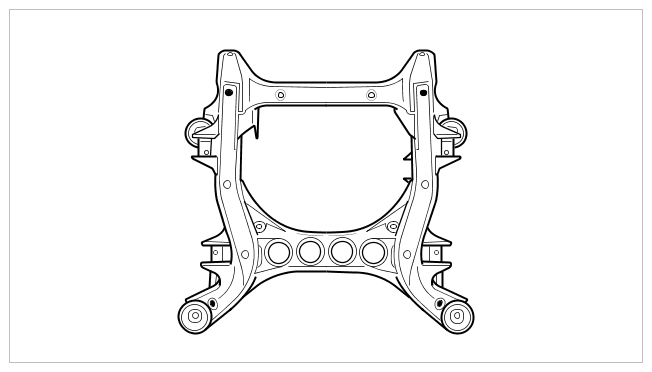

1. Position the -Front-axle carrier-  on > VAS 6832/1A - Assembly Fixture - Cayenne  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front-axle carrier

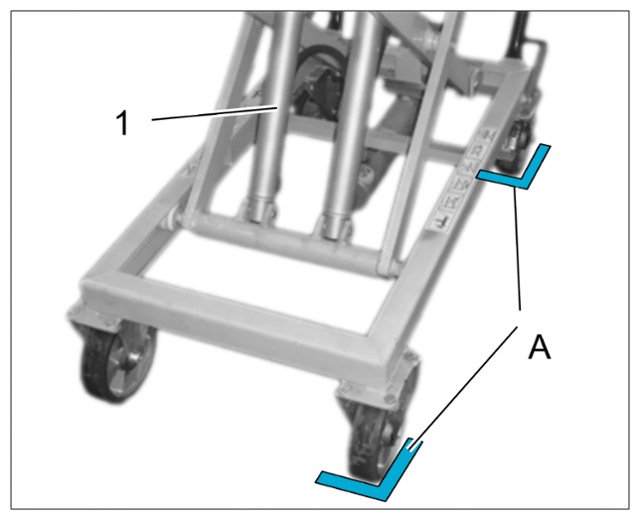

2. Position the lifting platform -1-  on the markings -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Position of lifting platform

3. Position the front-axle carrier back in its original, marked installation position and be careful not to damage adjacent parts.

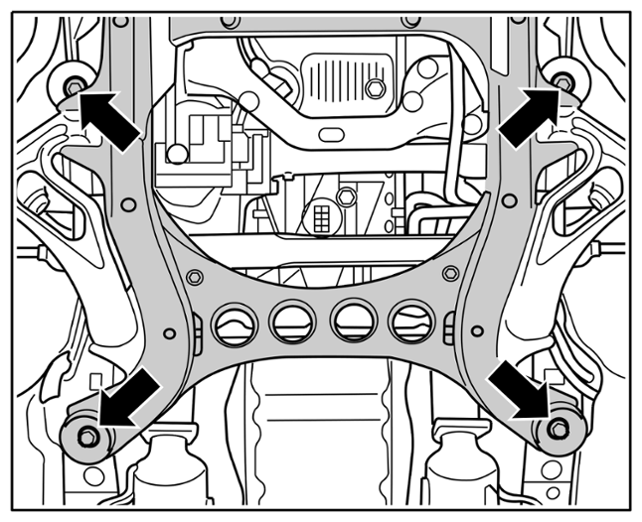

4. Fit the four fastening screws -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws on front-axle carrier

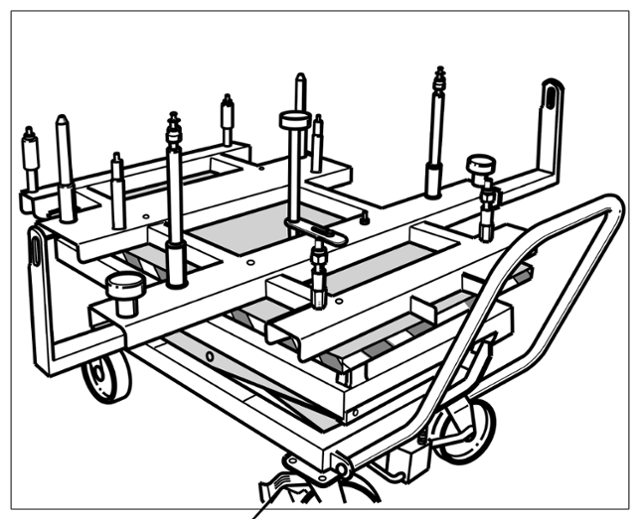

5. > VAS 6832 - Master Gear unit elevating platform with > VAS 6832/1A - Assembly Fixture - Cayenne  must now be removed.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front-axle carrier

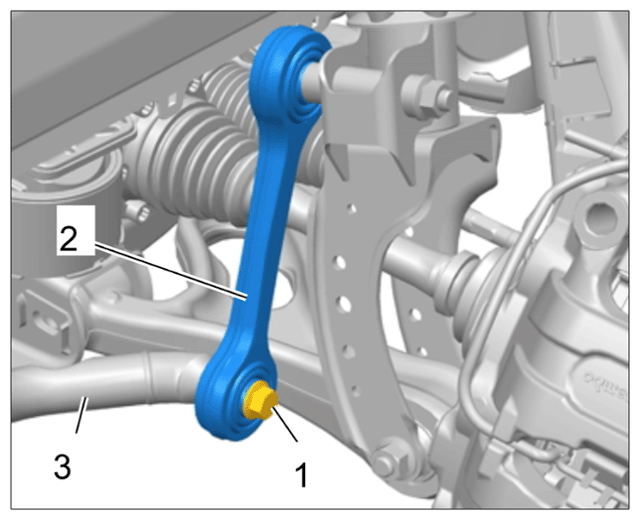

6. Fit the connecting link -2-  on the anti-roll bar -3-  and screw in the fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Connecting link for anti-roll bar

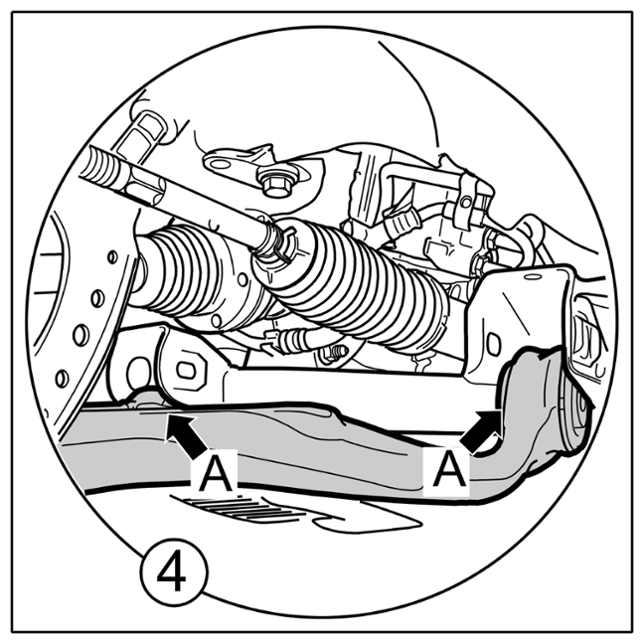

7. Press the trailing arm into the mounting points on the front-axle carrier -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Installing trailing arm (shown as an example)

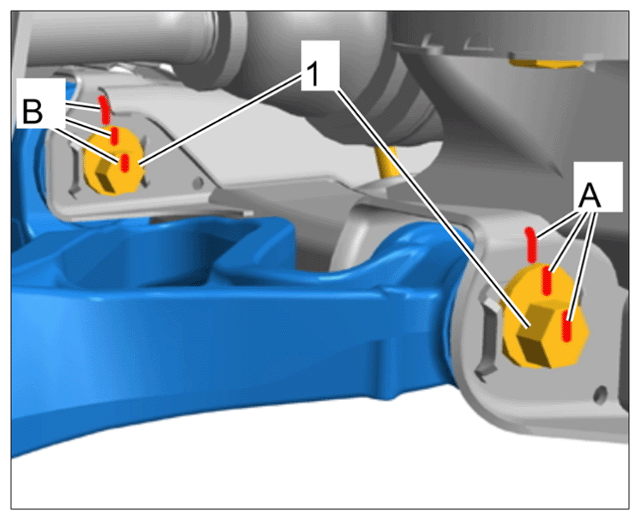

8. Insert and fit the eccentric screws -1-  . Fit according to the markings -A, B-  .

   > Refer to the appropriate Tightening Torques For Front Axle service information

   Raise the wheel bearing housing slightly using a suitable jack to avoid damaging the dust bellows for the steering when tightening the eccentric screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking on eccentric screws

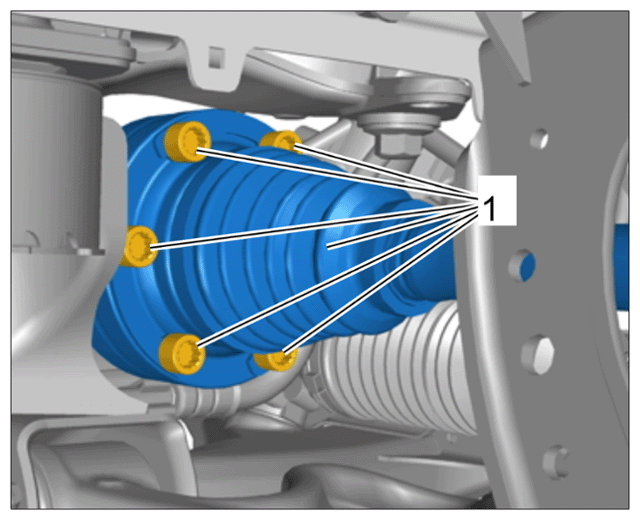

9. Fit fastening screws -1-  for securing drive shaft to transmission.

   > Refer to the appropriate Tightening Torques For Front Axle service information

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws securing drive shaft to transmission

10. Fit the rear cardan shaft.

    > 390119 Removing and installing rear final drive - section on "INSTALLING "

11. Fit the steering column at the steering gear.

    > 481519 Removing and installing steering column - section on "INSTALLING "

    Use a new clamping screw.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

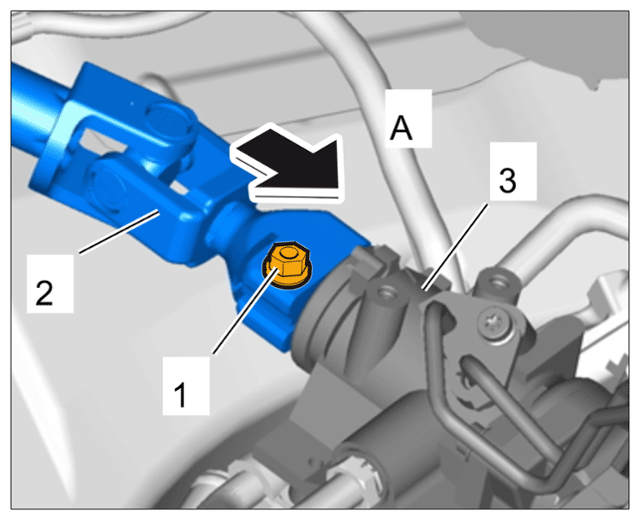

    Installing steering column

    1. 11.1 Press the steering column -2-  onto the steering gear -3-  (-A-  ).
    2. 11.2 Insert a new clamping screw -1-  and fit without tension.

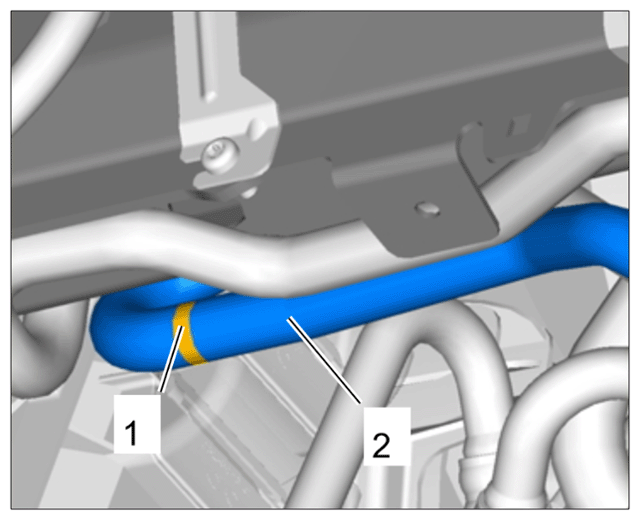

12. Position hydraulic line (intake pipe) -2-  and fit the clamp -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front left hydraulic line

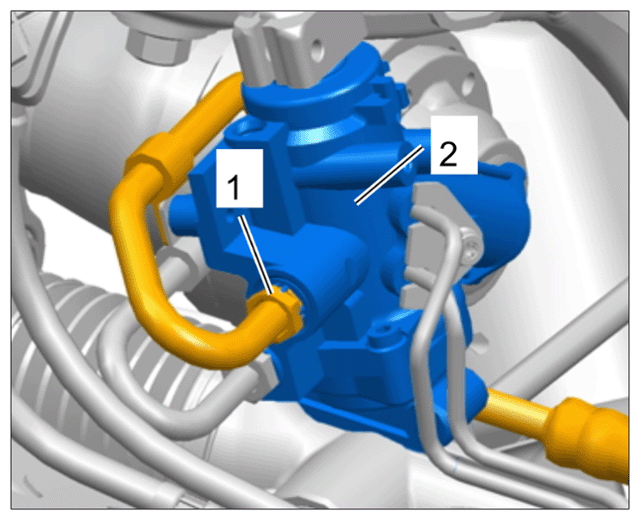

13. Fit the upper hydraulic line -1-  (pressure line) at the steering gear - 2-.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hydraulic line - steering gear

14. For vehicles with PDCC (Porsche Dynamic Chassis Control - anti-roll stabilisation):

    On vehicles with PDCC, the lines must be fitted at the flow distributor and at the front right side member.

15. Position the heat shield -2-  on the steering gear and fit the fastening screws -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat shield for steering gear

16. Fit the tie rod on the wheel bearing housing.

    > 487919 Removing and installing tie rod - section on "INSTALLING "

17. > VW552 - Spring tensioner-1- can now be removed from the upper trailing arm -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing point for upper trailing arm
