Installing Tie Rod

Information

The pictures shown in this document may differ from the original.

Information

• The tie rods are delivered preset as an assembly (tie rod/tie rod joint).
• If the joint boot is to be used again, before installing inspect for wear (cracks, slits) and check that sealing surfaces are clean.
• Carry out a close visual inspection of all parts.
• When fitting the ball joints, ensure that the bevel pinions are clean! Remove dirt or grease on bevel pinions, e.g. with a lint-free cloth. Do not use cleaning agent/solvent.
• Observe correct tightening torques.

  > 4X00IN TIGHTENING TORQUES FOR STEERING

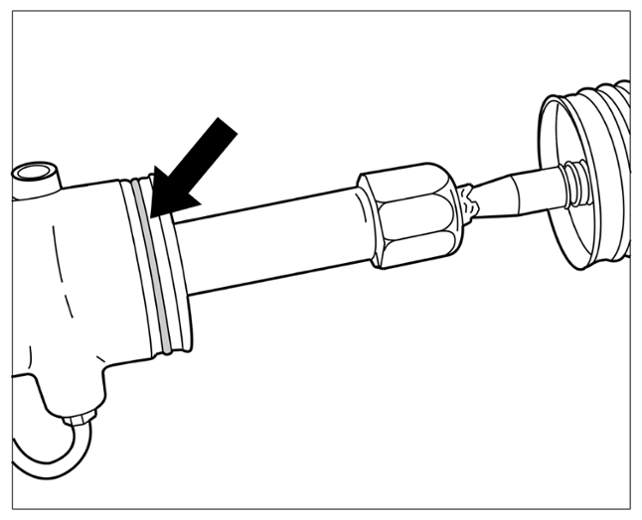

1. During installation, fit new sealing rings -arrow-  on the steering gear. Take care not to damage the sealing ring when fitting the joint boot.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sealing ring on steering gear (shown as an example)

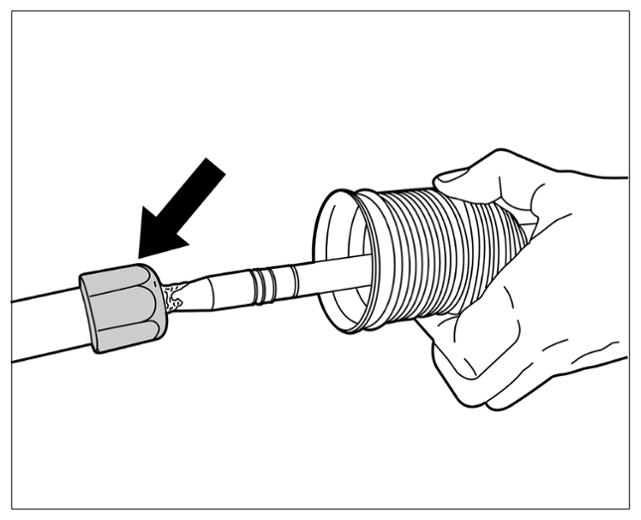

2. Fit tie rod. > Axial joint on tie rod (shown as an example)

   > 4X00IN TIGHTENING TORQUES FOR STEERING

   Ensure that no damage (scoring or similar damage) is caused to the steering rack.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Axial joint on tie rod (shown as an example)

3. Fit joint boot (not twisted) and secure with new clamps > Large clamp (shown as an example)  .

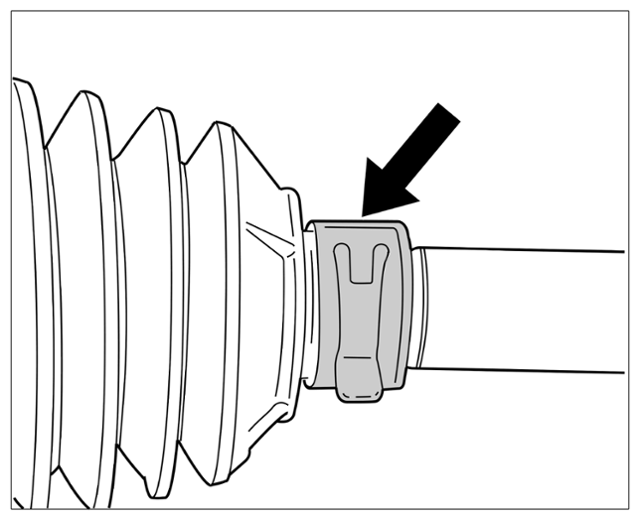

   Fit the small clamp using > VAS 6890 - Spring Band Clamp Pliers  if necessary.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Small clamp on tie-rod joint boot (shown as an example)

4. When fitting the joint boot on the steering gear, make sure that the boot is not twisted.

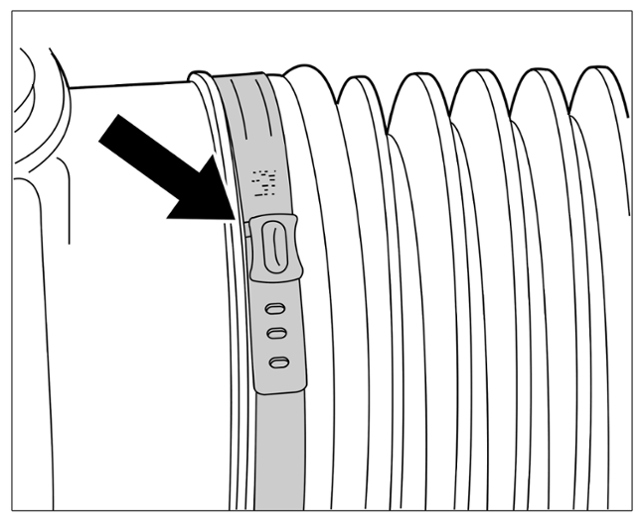

   Fit the joint boot using a new clamp > Large clamp (shown as an example)  .

   The arrow denotes the clamp lug.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Large clamp (shown as an example)

5. When fitting the large clamps, it is essential to observe the following installation position (right/left).

   The clamps must be fitted at the correct position.

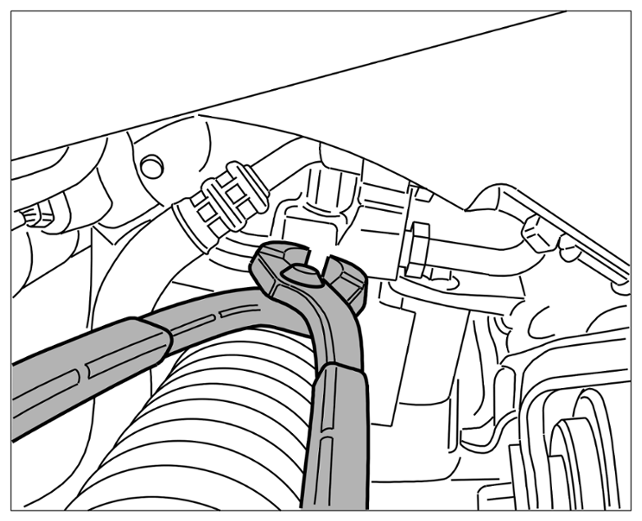

   Place > V.A.G 1275A - Hose clip pliers  on the clamp lug and lightly clamp > Fitting large clamp (shown as an example)  .

   It should still be possible to turn the clamps easily.

   Check the position of the clamp once more, correcting if necessary, and then compress the clamp lug fully.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting large clamp (shown as an example)

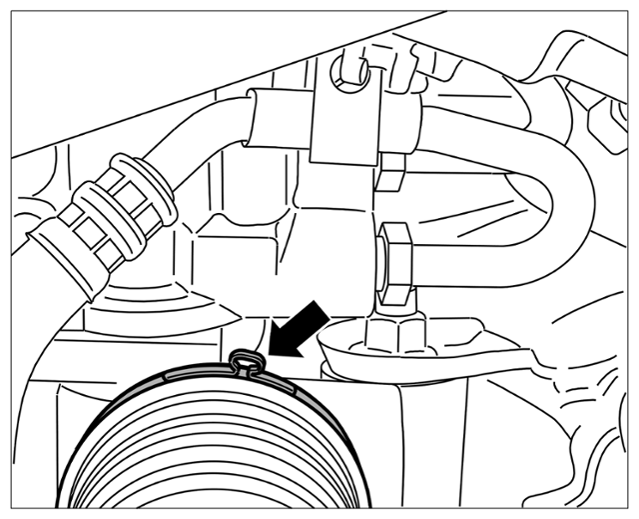

6. The clamp on the left joint boot must be clamped on the steering gear so that the clamp lug -arrow-  is in line with the steering shaft!

   Failure to observe this can lead to constrictions in the area of the supply and return lines.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Left installation position of large clamp (shown as an example)

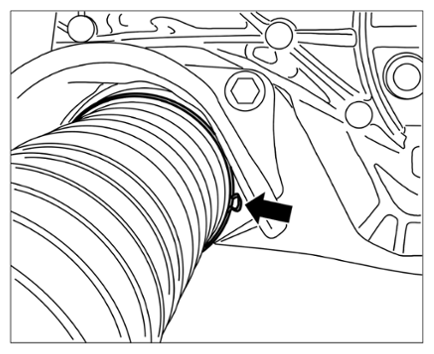

7. The clamp of the right joint boot must be clamped on the steering gear so that the clamp lug -arrow-  points horizontally with the front axle carrier (suspension subframe) in direction of travel.

   Failure to observe this can lead to constrictions in the area of the heat shield.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right installation position of large clamp (shown as an example)

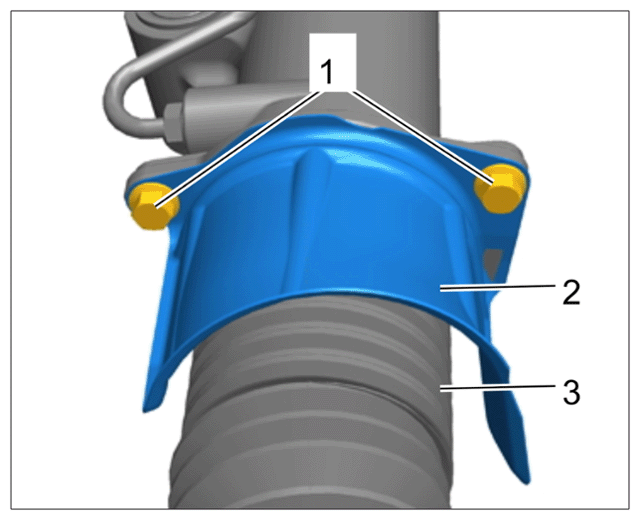

8. Right tie rod:

   Fit heat shield -2-  .

   Fit fastening screws -1-  on the heat shield -2-  near the joint boot -3-  of the right tie rod.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield for right tie rod
