Removing Transmission Mount

WARNING: This page is about a different variant/trim than selected.
  1. Mark the centre of the rubber mounting on the transmission support with a colored marker -arrow-  .

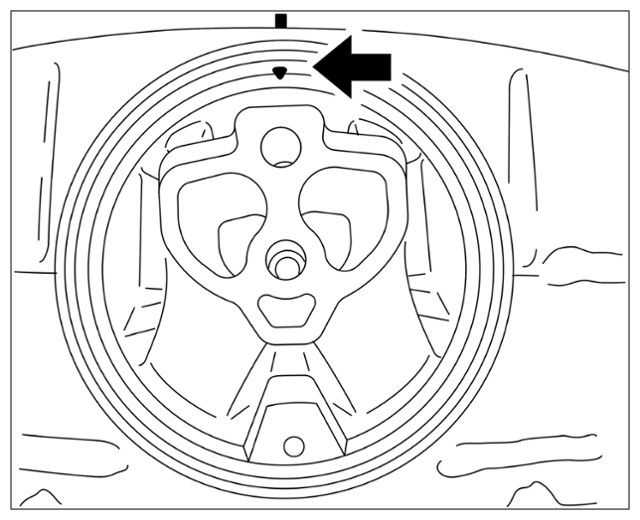

    G16317628Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Marking on transmission mount

  2. Press out transmission mount using a workshop press and the > T10214 - assembly fi xture  .
    1. 2.1  Fit transmission support on tool T10214/1 -1-  .
    2. 2.2  Centre the tool T10214/3 -3-  on the transmission mount without screwing it to the transmission mount.
    3. 2.3  Carefully press out the transmission mount.

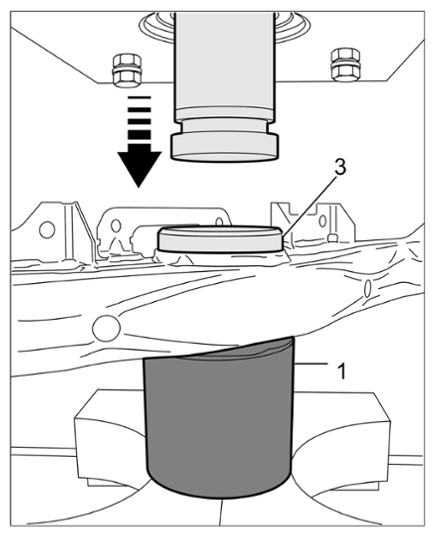

    G16317629Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressing out transmission to unit
