Installing Transmission Mount

WARNING: This page is about a different variant/trim than selected.

Insert new transmission mount into calibrating sleeve T10214/2 and fit tool T10214/3 on the plastic ring of the mount without screwing it to the mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inserting transmission mount in tool

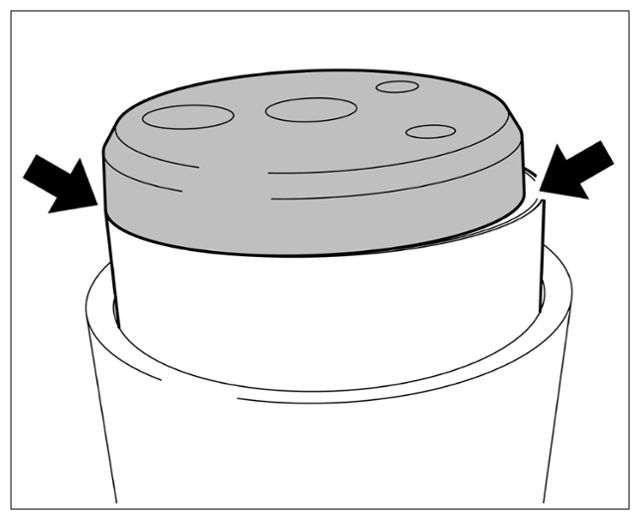

Fit calibrating sleeve T102I4/2 -2- on tool T10214/1 -1- . Press transmission mount into the calibrating sleeve T10214/2 -2- until it is flush with the upper edge -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Calibrating transmission mount

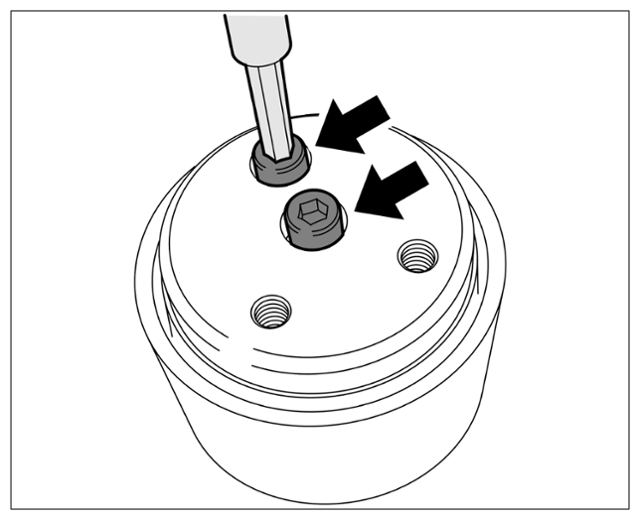

Screw the tool T10214/3 to the calibrated mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screwing on tool

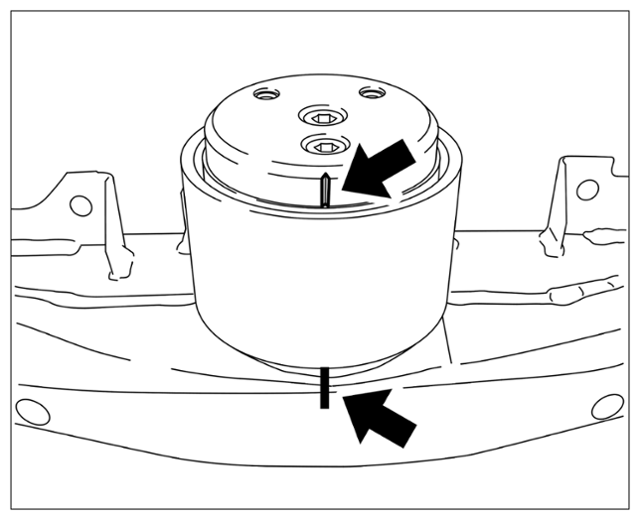

Position tool T10214/2/3 together with the new mount on the transmission support. Make sure that the notch on the special tool is aligned with the marking applied to the transmission support before removal -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Aligning transmission mount

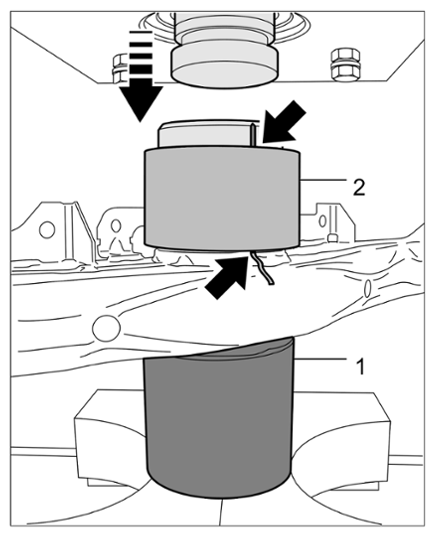

Position tool T10214/1 -1- under the opening in the transmission support and press transmission mount -2- into the transmission support using the workshop press. Make sure that the mount is aligned with the transmission support -arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressing in transmission mount

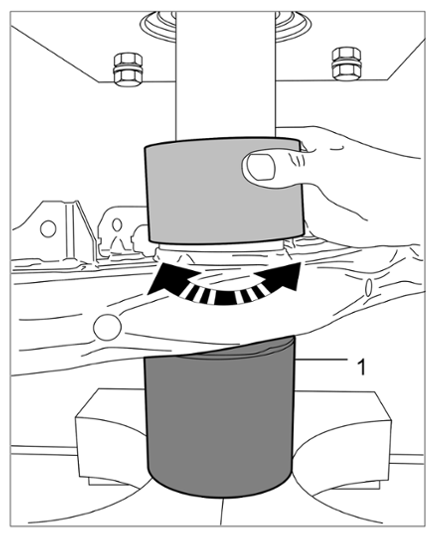

The mount is at the correct installation position when the tool T10214/2 can move freely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tool moving freely

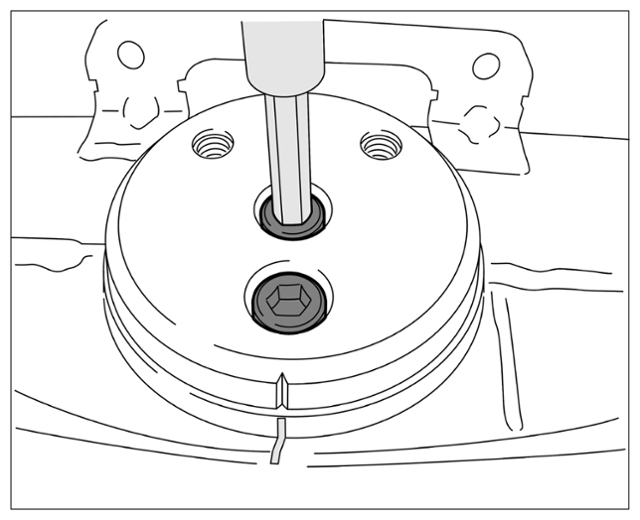

Unscrew tool T10214/3 from the transmission mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing tool
Fit tool T10214/3 on the projecting side again and press the transmission mount in flush again until it is installed evenly in the transmission support.
