Tools And Materials: Tools
WARNING: This page is about a different variant/trim than selected.
Information

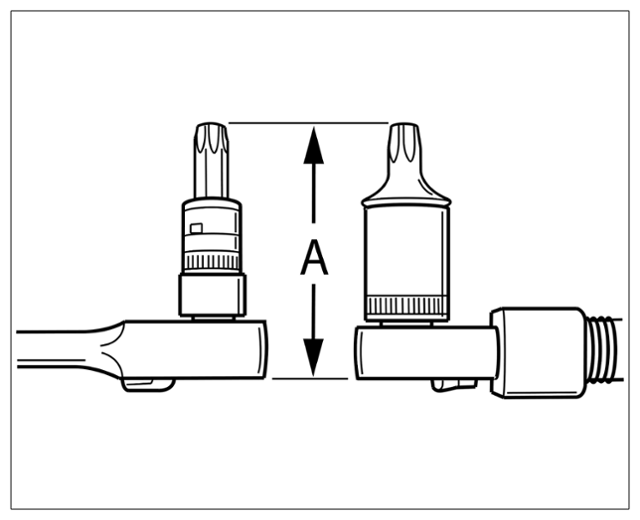

Tool height
- It is best to use a tool with a head height of less than 50 mm -A- (see special tool) for loosening and tightening the rear fastening screw on the cylinder head cover close to the plenum panel.
The following tool can also be used (particularly for aluminium screws with an inner pin) =>
- > 9824 - Flexible-head socket wrench, a/f 8
- > 9824/1 - Flexible-head socket wrench, a/f 10
- > 9824/2 - Torx Micro Bit T30
- > 9824/3 - Torx Micro Bit T45

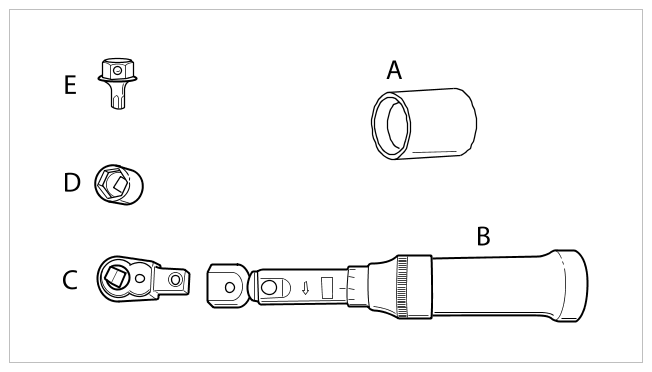

Recommended special tools
| Item | Designation | Explanation |
|---|---|---|
| -A- | > 9701 - Assembly sleeve | Not absolutely necessary |
| -B- | > V.A.G 1783 - Torque wrench, 2-10 Nm (1.5-7.5 ftlb.)/ > 1052 - Torque wrench V.A.G. 1410/1576 | |
| -C- | Change-over ratchet insert, 1/4-inch | |
| -D- | Socket (a/f 13), 1/4-inch | |
| -E- | Hexagon socket insert bit, T40 |
