Removing Cylinder Head

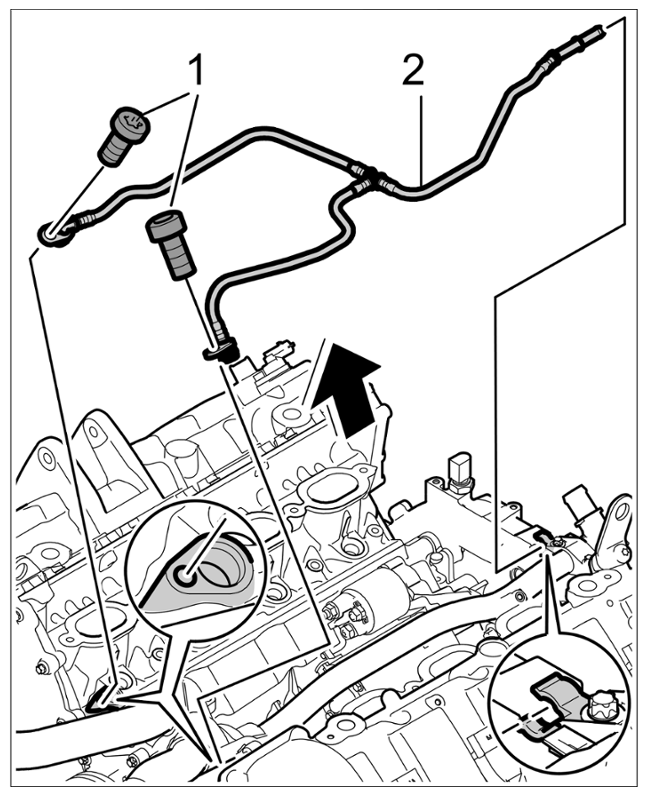

1. Remove vent line.
   1. 1.1 Unscrew fastening screws -1-  .
   2. 1.2 Unclip vent line -2-  from the cable duct and remove it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vent line

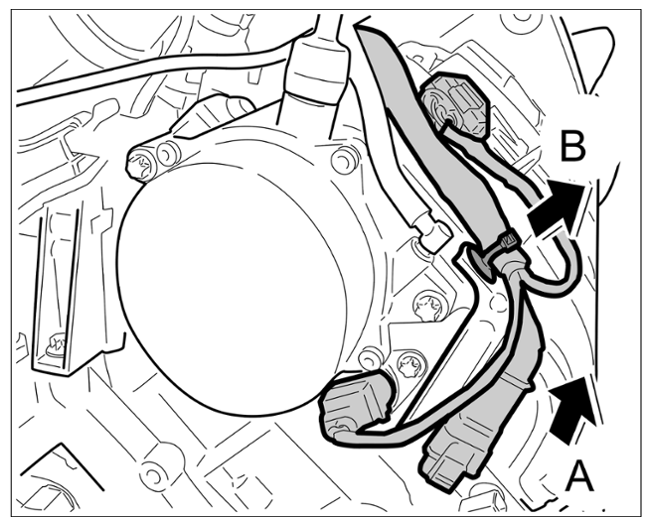

2. Expose engine wire harness close to the vacuum pump. > Engine wire harness close to vacuum pump  > Engine wire harness at the rear right

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine wire harness close to vacuum pump

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine wire harness at the rear right

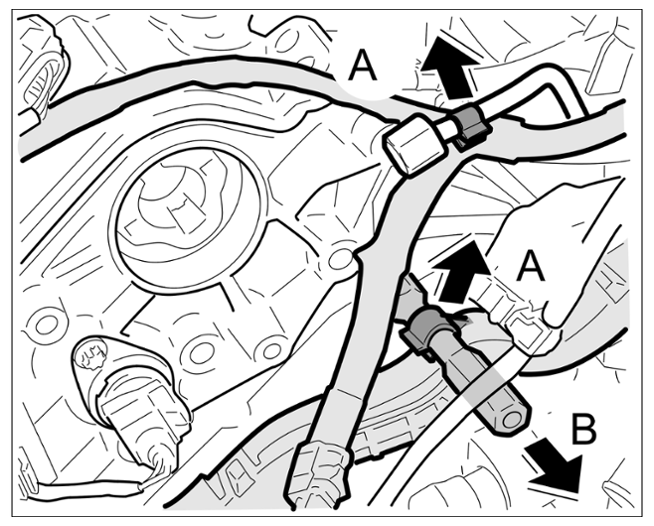

3. Unclip engine wire harness close to the high-pressure pump.
   1. 3.1 Unclip engine wire harness at the retaining clips -arrows A-  .
   2. 3.2 Unscrew the screw socket -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine wire harness close to high-pressure pump

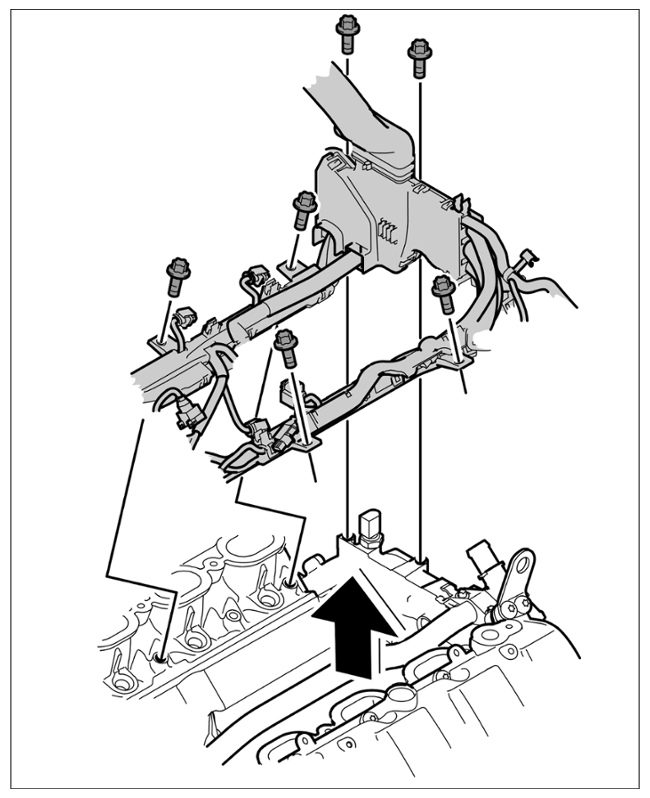

4. Lift wire harness up and out at the cylinder heads -arrow-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Engine wire harness

5. Remove mounting saddle at the front -8-  (cylinder bank 1 to 4 shown). This hides the cylinder head screws underneath.

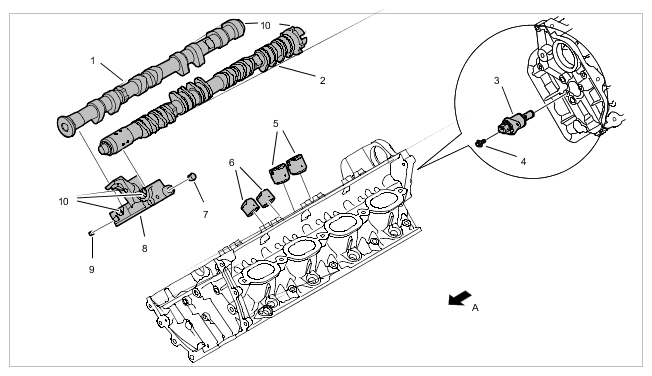

   Fig 1: Camshafts Components Location - Cylinder Bank 1 To 4

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Camshafts, cylinder bank 1 to 4

   1	Camshaft (outlet)
   2	Camshaft (intake)
   3	Hydraulic valve for variable valve lift control
   4	Screw, M5 x 12
   5	Switching tappet (oil with engine oil)
   6	Bucket tappet (oil with engine oil)
   7	Stopper
   8	Mounting saddle 1 to 4
   9	Stopper
   10	Bearing locations (oil with engine oil)
   A	Direction of travel

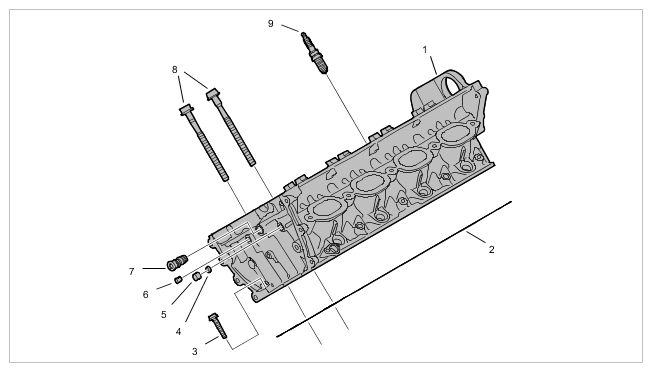

6. Remove front M8 screw securing the cylinder head for cylinders 1 to 4 to the crankcase. -3-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cylinder head 1 to 4

7. Remove cylinder head screws in the opposite order to the tightening sequence shown > Tightening sequence for cylinder head  . Remove cylinder head. If necessary, remove the valve lifters now and lay them aside in the correct order.

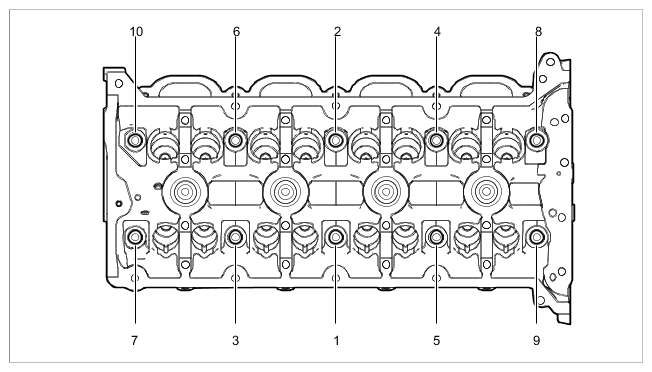

   Fig 2: Cylinder Head Loosening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for cylinder head

8. Remove cylinder head gasket.

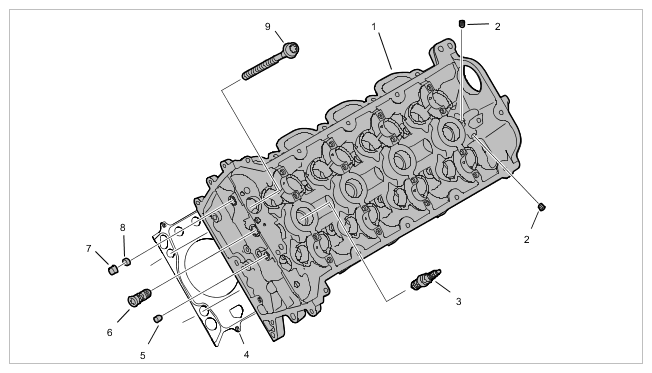

9. Remove cylinder head for cylinders 5 to 8 in the same way. > Cylinder head 5 to 8

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cylinder head 5 to 8
