In the Turbo, the exhaust valve is fitted with internal and external valve springs (set of valve springs) and adapted concave washers. The exhaust valve in the turbo engine has the same outer dimensions as the exhaust valve of the naturally aspirated engine. However, because of the sodium filling, the exhaust valve in the turbo engine is lighter and the shank over the shank entries is longer. For further details, please see Figures and Table entitled "Valve dimensions".

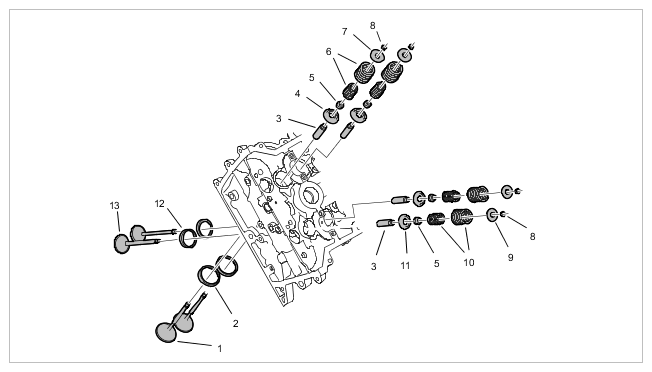

Valves (Figure, turbo cylinder bank 5 to 8)
| 1 | Intake valve (identical in the naturally aspirated and turbo engines) |
| 2 | Valve-seat ring intake |
| 3 | Valve guide |
| 4 | Lower valve-spring plate intake |
| 5 | Valve stem seal |
| 6 | Set of valve springs, intake (identical in the naturally aspirated and turbo engines) |
| 7 | Upper valve-spring plate intake |
| 8 | Valve collet |
| 9 | Upper valve-spring plate outlet (different in the naturally aspirated and turbo engines) |
| 10 | Set of valve springs (turbo outlet); valve spring (naturally aspirated engine outlet) |
| 11 | Lower valve-spring plate outlet (different in the naturally aspirated and turbo engines) |
| 12 | Valve-seat ring outlet |
| 13 | Exhaust valve (different in the naturally aspirated and turbo engines) |
