Removing Valve Lifters (Hydraulic Tappets)
WARNING: This page is about a different variant/trim than selected.
Information
- The hydraulic tappets are fitted as bucket tappets on the outlet side and as switching tappets for valve lift switchover on the intake side.
- Switching tappets and bucket tappets cannot be interchanged.
- The hydraulic tappets have a twist lock for the cylinder head.
Information
- If the hydraulic tappets are to be re-used, they must be marked according to installation position using a water-resistant felt-tip pen and set aside in such a way that they cannot be mixed up!
- If the hydraulic tappets are to be re-used, they must be installed at the same position!

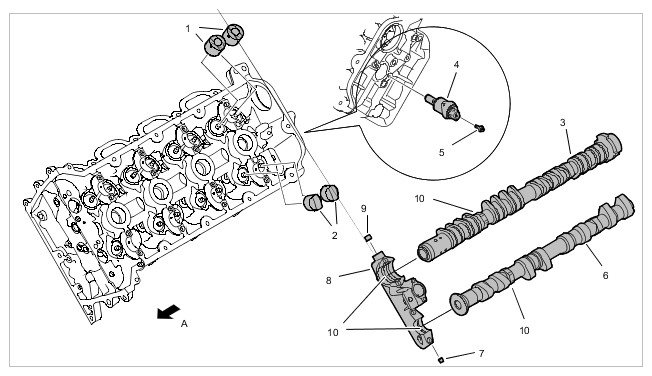

Camshafts, cylinder bank 1 to 4
| 1 | Camshaft (outlet) |
| 2 | Camshaft (intake) |
| 3 | Hydraulic valve for variable valve lift control |
| 4 | Screw, M5 x 12 |
| 5 | Switching tappet (oil with engine oil) |
| 6 | Flat-base tappet (oil with engine oil) |
| 7 | Stopper |
| 8 | Mounting saddle 1 to 4 |
| 9 | Stopper |
| 10 | Bearing locations (oil with engine oil) |
| A | Direction of travel |

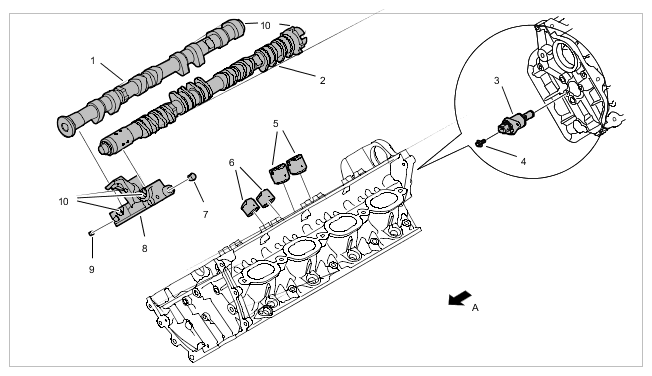

Camshafts, cylinders 5 to 8
| 1 | Switching tappet (oil with engine oil) |
| 2 | Flat-base tappet (oil with engine oil) |
| 3 | Camshaft (intake) |
| 4 | Hydraulic valve for variable valve lift control |
| 5 | Screw, M5 x 12 |
| 6 | Camshaft (outlet) |
| 7 | Stopper |
| 8 | Mounting saddle, cylinders 5 to 8 |
| 9 | Stopper |
| 10 | Bearing surfaces (oil with engine oil) |
| A | Direction of travel |
- Pull the hydraulic tappets out of the cylinder head one after the other > Hydraulic tappets and set them aside in such a way that they cannot be mixed up > Putting components down without mixing them up (cylinder bank 5-8 shown here as an example) .

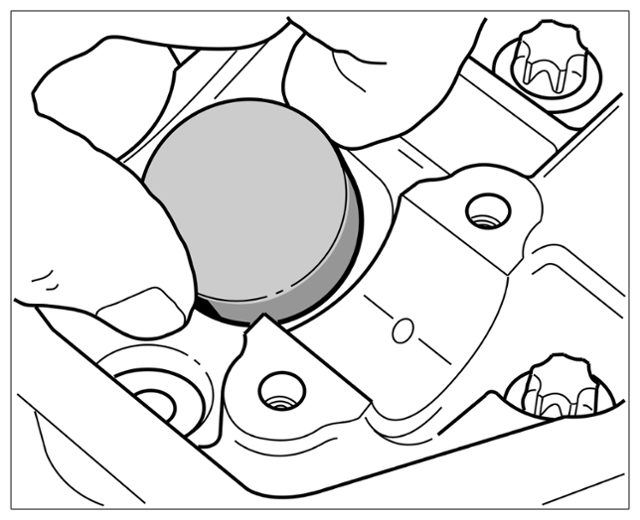

Hydraulic tappets

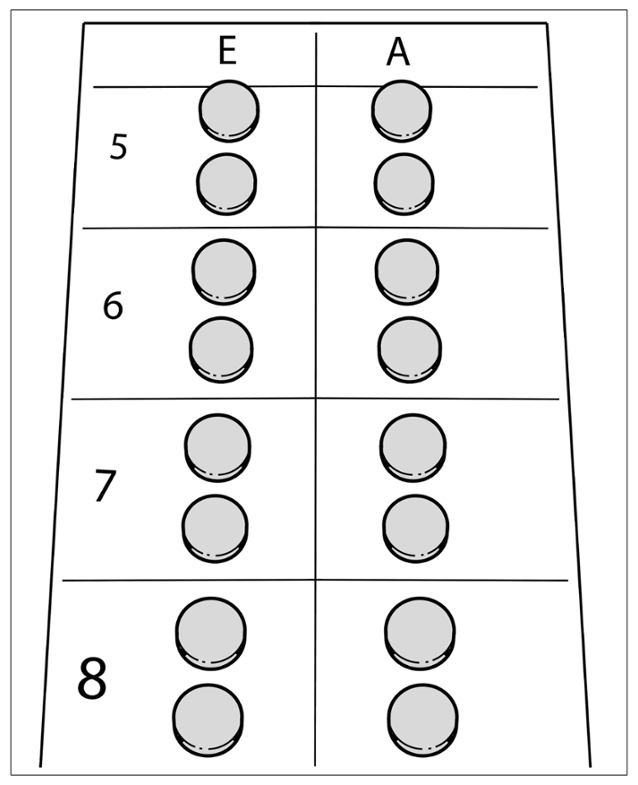

Putting components down without mixing them up (cylinder bank 5-8 shown here as an example)
| E | Intake side |
| A | Outlet side |
| 5 bis 8 | Cylinders |
