Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install oil pressure indicator sensor with adapter.
> WM, 170419 REMOVING AND INSTALLING OIL-PRESSURE SENDER .
Install the chain tensioner.
> 153619 REMOVING AND INSTALLING CHAIN TENSIONER
Install alternator.
> WM, 272219 REMOVING AND INSTALLING GENERATOR
Install turbocharger suction and pressure hose on cylinder bank 1.
Install new joint flange with crankshaft sealing ring.
> WM, 137419 REMOVING AND INSTALLING SEALING RING FOR CRANKSHAFT PULLEY
> 9861 - Dismantle the timing tool on the camshafts of both cylinder banks.
Fit and secure belt pulley with friction washer.
> WM, 137619 REMOVING AND INSTALLING VIBRATION DAMPER (CRANKSHAFT PULLEY)
Check the timing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

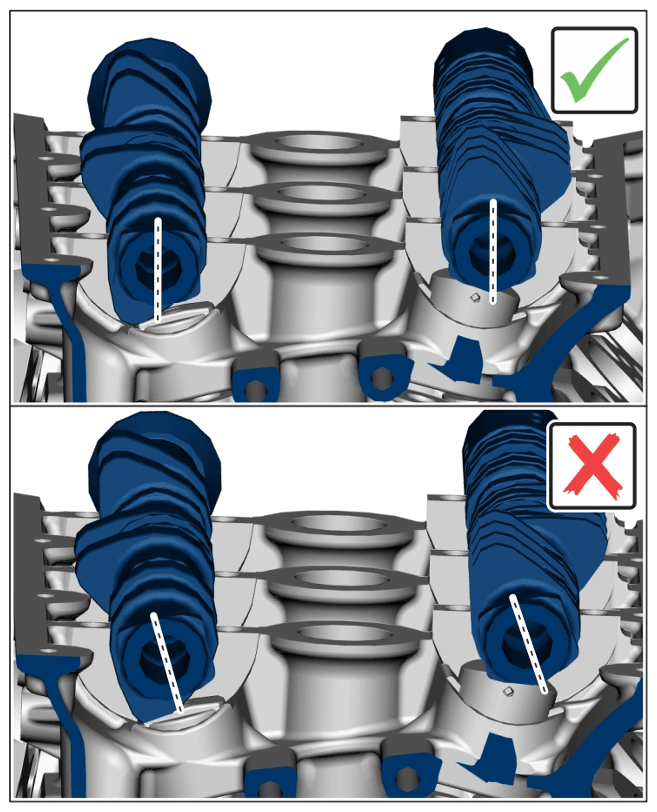

TDC position of camshafts
1. 8.1 Turn the engine two turns clockwise to TDC of cylinder 1 and lock the belt pulley using > 9595/1 - locating pins.
2. 8.2 Check camshaft adjustment.
  1. 8.2.1 If the control chain is still in the same position as it was during removal, remove > 9595/1 - locating pins and continue with Step 7.
  2. 8.2.2 Only set the timing if the control chain has skipped.
  > WM, 150516 SETTING TIMING
Install both cylinder head covers.
> 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER
Install coolant pump belt pulley.
Install the drive belt.
> 137819 REMOVING AND INSTALLING DRIVE BELT
Fasten the coolant pump belt pulley.
Install the hat for the throttle body complete with both moulded hoses.
> WM, 243519 REMOVING AND INSTALLING COWL FOR THROTTLE HOUSING (Y-PIPE)

Assemble the lock support panel and bumper complete with all radiators.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

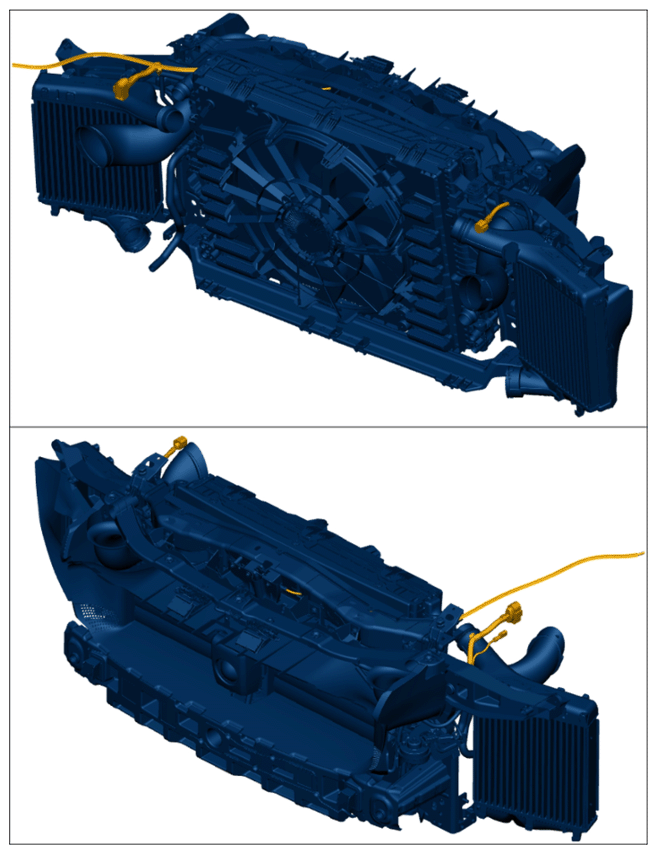

Radiator assembly with lock support panel and bumper - Similar to illustration

14.2 Tighten screw securing -1- ATF lines -3- to thermostat -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

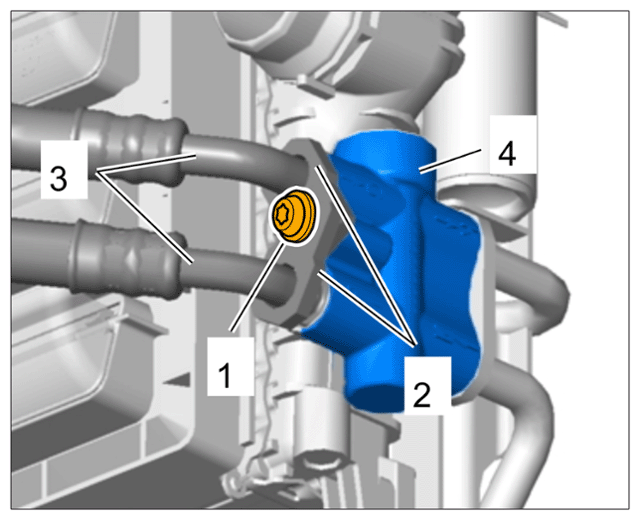

ATF lines on the thermostat

14.3 Fasten the refrigerant line screws to the condenser.

Use new O-rings.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

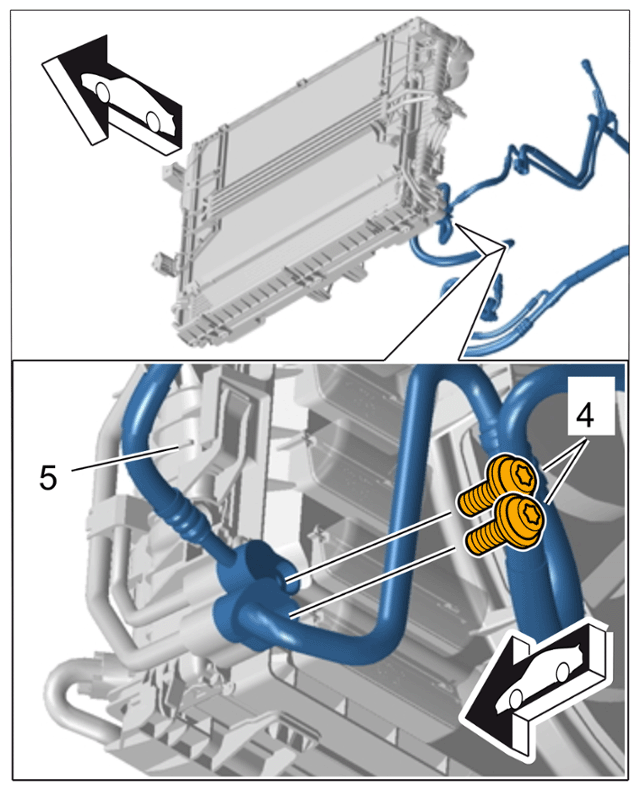

Screws air conditioning lines on the condenser

For details, see:

14.4 Secure hydraulic lines to the power-steering radiator in the left longitudinal member area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

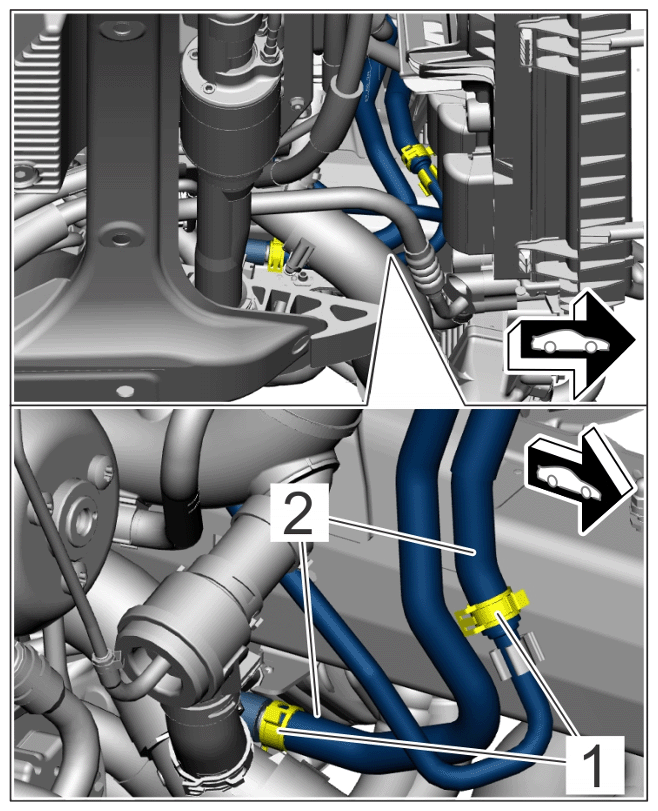

Hydraulic lines for power steering

14.5 Secure electric plug connections.

14.5.1 Secure the electric plug connection -6- of the cable harness on the left-hand side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

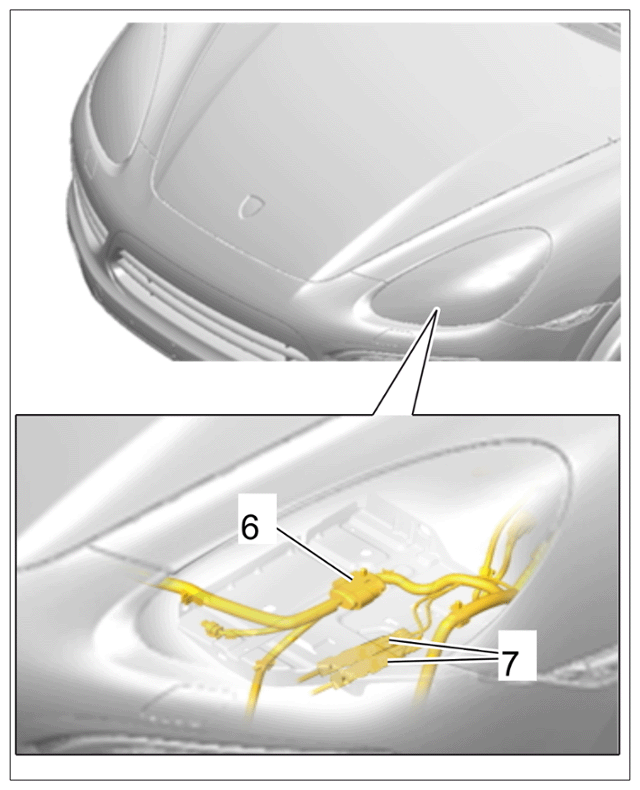

Electric plug connection left

14.6 Secure electric plug connection -8- on the right side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

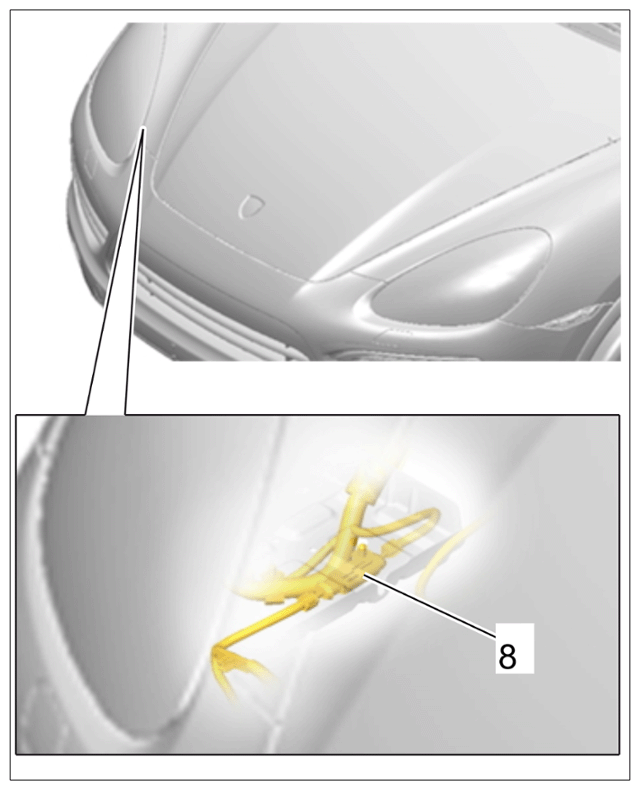

Electric plug connection right

14.7 Secure decoupler for flap cable to the upper left longitudinal member.

For details, see:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

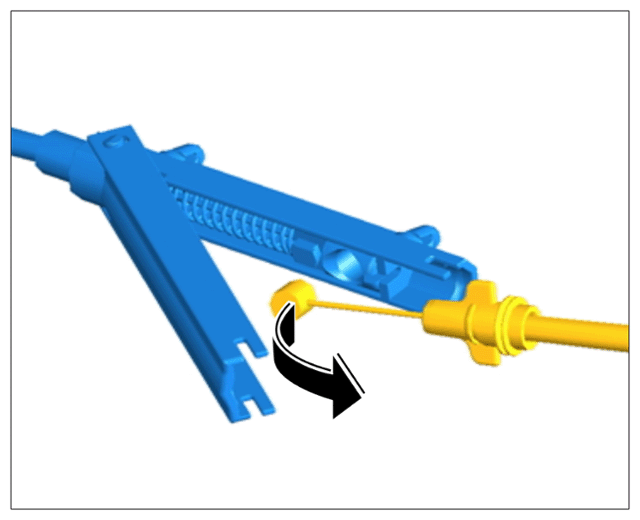

Removing cable from mounting

14.8 Tighten screws -5- for the longitudinal member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

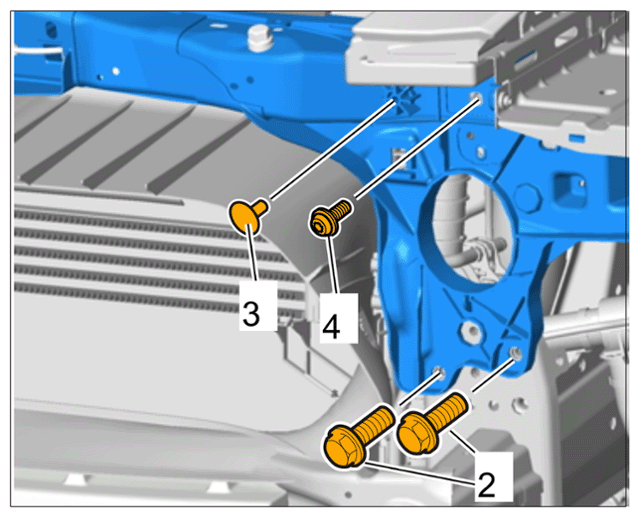

Detaching bumper

For details, see:

14.9 Tighten screws -4- for the bumper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

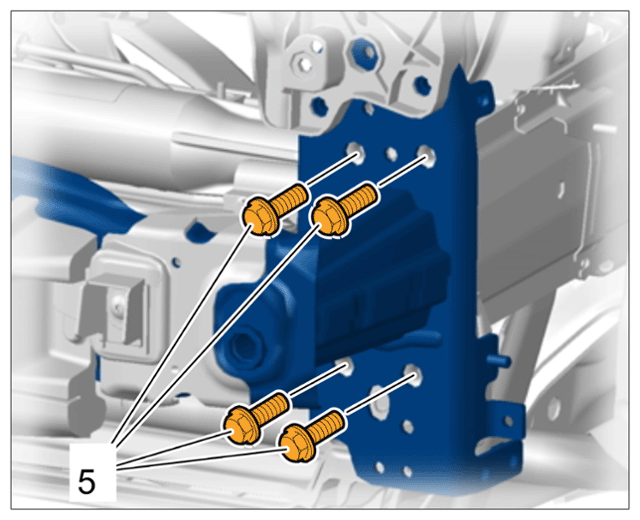

Loosening lock support panel

For details, see:

Install the front bumper.
> WM 631519 REMOVING AND INSTALLING FRONT APRON (EXCEPT CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))
Install both air cleaner housings.
> WM, 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING
Add refrigerant.
> WM 870317 DRAINING AND FILLING REFRIGERANT (CAYENNE, CAYENNE GTS, CAYENNE TURBO S, CAYENNE S, CAYENNE S E-HYBRID, CAYENNE TURBO, CAYENNE S DIESEL, CAYENNE (3.0))
Refill coolant.
> WM, 193817 DRAINING AND FILLING COOLANT (INCLUDES BLEEDING)
Filling engine oil.
> 170117 CHANGING ENGINE OIL AND OIL FILTER
Fill in hydraulic fluid.
> 430501 CHECKING FLUID LEVEL (PDCC)
Connect the battery.
> WM 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
