Removing Chain Housing Cover

Information

• The number of screws, fastening clips, plug connections, holders and lines may vary depending on the engine variant and equipment.
• The graphics for removal or installation are partly shown on a variant and may deviate from the actual situation.
• Naturally, some steps must always be carried out.
• Some of the repair illustrations show only one side of the vehicle.

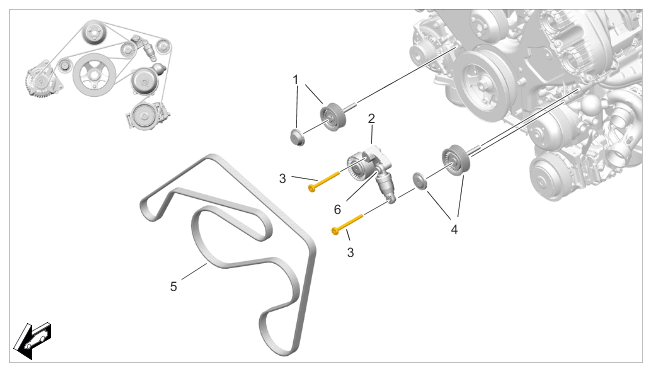

1. Remove deflection rollers -1, 4-  and belt tensioner damper -2-  .
   1. 1.1 Lever off the deflection roller covers.
   2. 1.2 Unscrew the -3-  belt tensioner damper and the deflection roller screws.
   3. 1.3 Remove belt tensioner damper and deflection rollers.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Belt drive

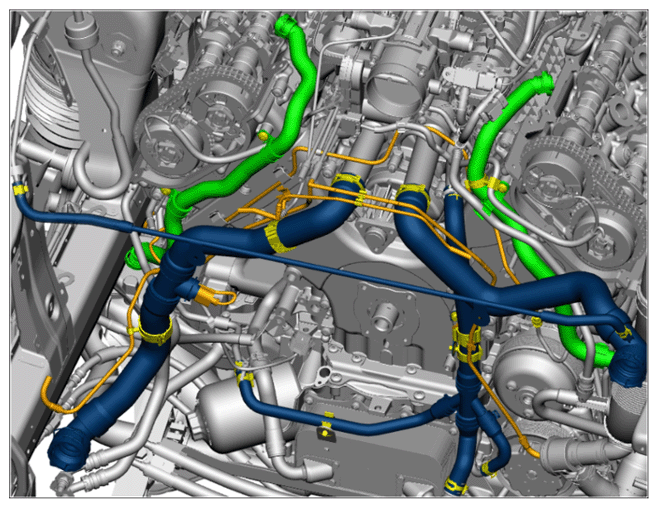

2. Remove coolant hoses/lines -Blue-  , positive crankcase ventilation lines -Green-  and vacuum hoses -Orange-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Hoses and lines in front of the chain housing cover - exemplified on the V6 Biturbo

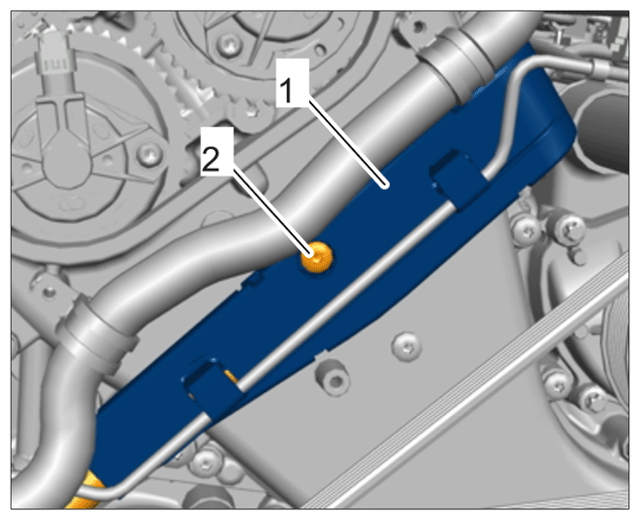

3. Loosen cable duct -1-  on the chain housing cover and expose wiring harness.
   1. 3.1 Unplug the electric plug connection of the oil pressure control valve and oil level sensor and unclip the cable in the area of the oil guide housing and oil pan.
   2. 3.2 Unscrew screw -2-  , swivel cable duct -1-  upwards and secure with a tie-wrap.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cable duct on chain housing cover

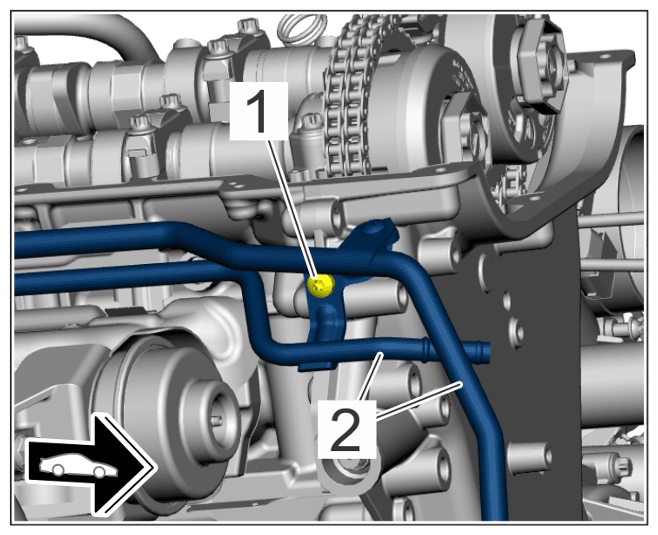

4. Disconnect lines -2-  on the chain housing cover.
   1. 4.1 Unscrew screw -1-  and remove.

      Replace screw during installation.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line for ATF cooling/crankcase ventilation line - Similar to illustration

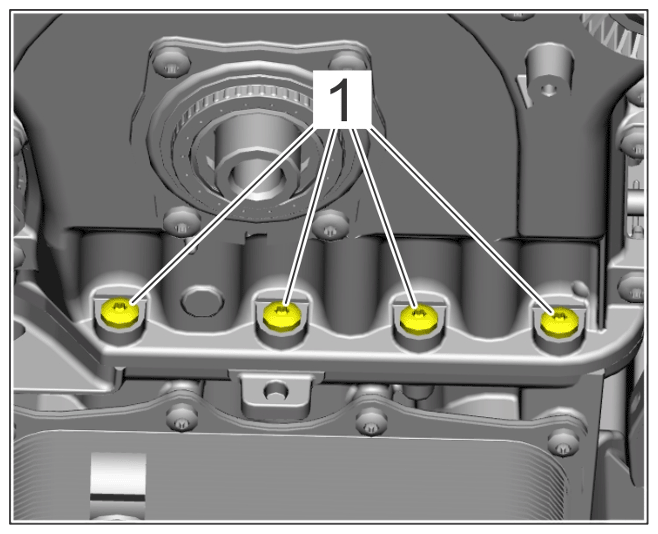

5. Loosen screws securing chain housing cover to oil guide housing.
   1. 5.1 Unscrew screws -1-  and remove.

      Replace screws during installation.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Chain housing cover on oil guide housing

6. Removing chain housing cover.
   1. 6.1 Remove screws in the sequence -30 to 1-  .

      Replace screws during installation.

      Information

      Increased loosening forces can occur due to the large-area bonding. Loosen chain housing cover by tapping it carefully with a plastic hammer if necessary.

   2. 6.2 Loosen and remove the chain housing cover.

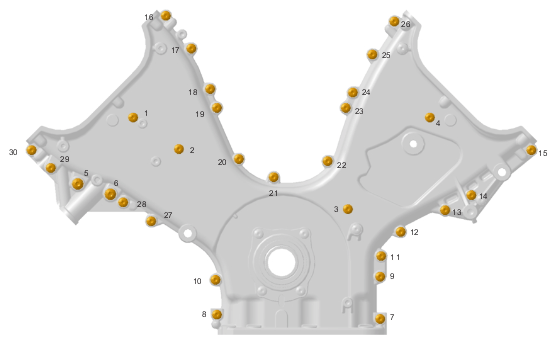

   Fig 1: Chain Housing Cover Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tightening sequence for chain housing cover

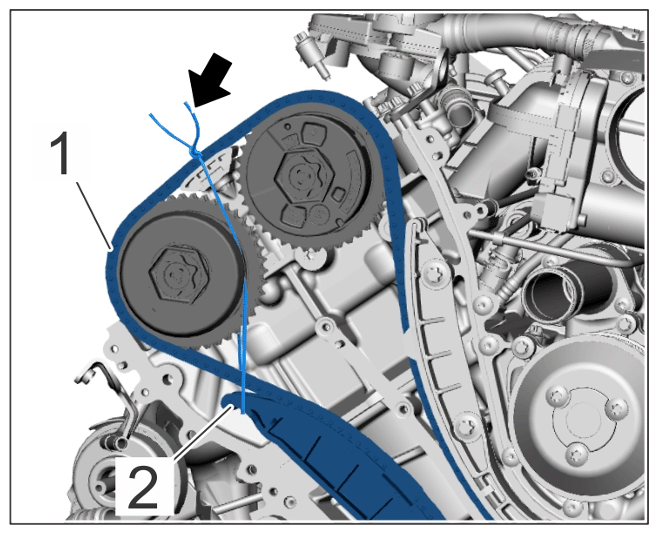

7. Secure the control chain -1-  and tension rail -2-  with a cord -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fixed control chain and tension rail - Similar to illustration

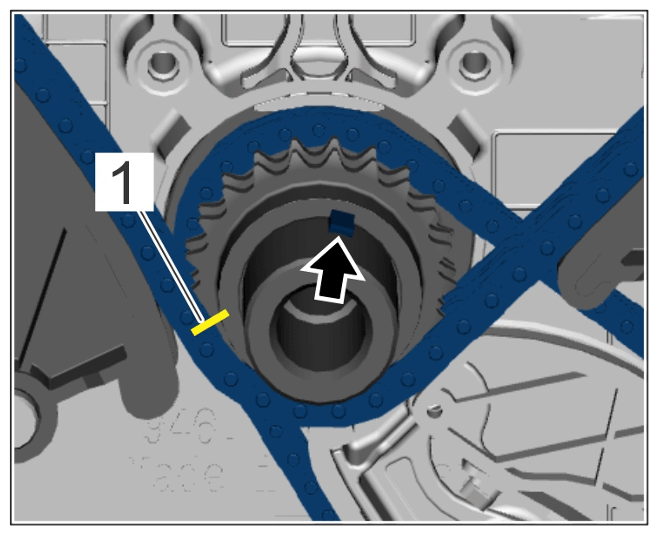

8. Degrease control chain and crankshaft at one point and -1-  apply a marking using a water-resistant pen.

   The feather key -Arrow- must be at 1 o'clock position in TDC position.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Marking TDC position of crankshaft/control chain
