Modification To Chain Housing Cover Seal From Mid-2010
WARNING: This page is about a different variant/trim than selected.
Information
- A modified metal seal has been used for the chain housing cover since mid-2010.
- The modified metal seal has an open cut-out on the side for applying sealant instead of the closed top opening.
- Existing metal seals can be used up.
- The sealant must be applied along the new contour as shown in the illustration.
- The small, closed top openings are filled with sealant in the familiar way.

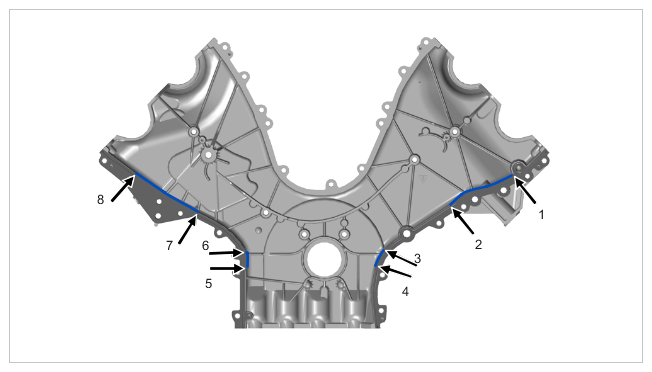

Sealant application - new
| 1, 2 | Sealant application next to the metal seal on the chain housing cover |
| 3, 4 | Sealant application in the opening in the metal seal on the chain housing cover |
| 5, 6 | Sealant application in the opening in the metal seal on the chain housing cover |
| 7, 8 | Sealant application next to the metal seal on the chain housing cover |

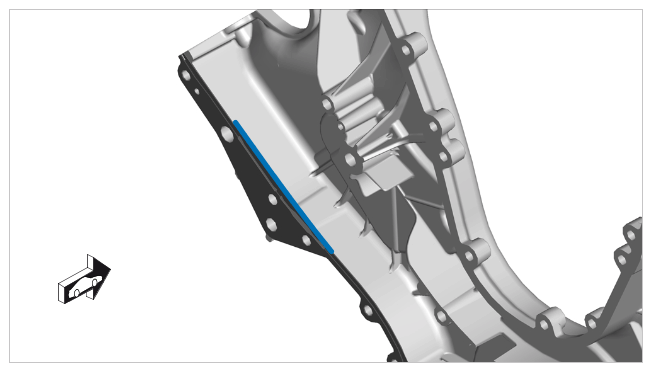

Sealant application to right cylinder bank near the chain tensioner

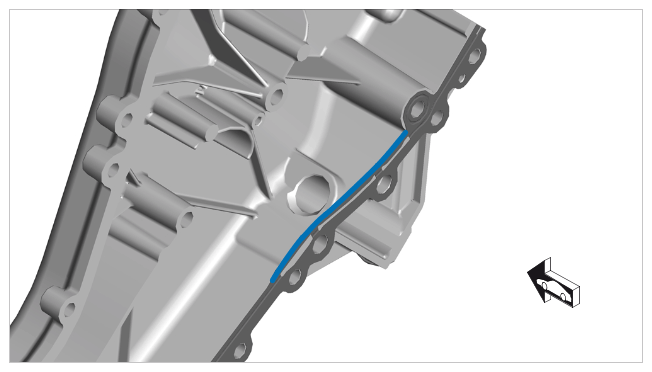

Sealant application to left cylinder bank
