Preliminary Work For Removing And Installing Front Spring Strut (Air Springs) On Passenger's Side

For V8:
Remove torque support.

> 103719 Removing and installing torque support - section on "REMOVING "

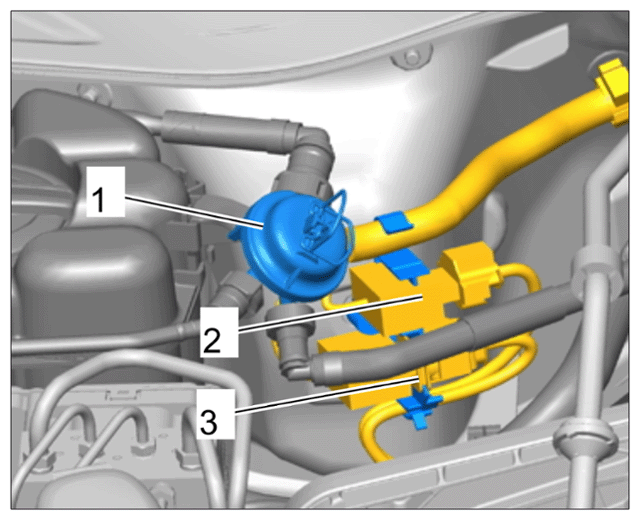

Unclip bleeder valve -1- at the coolant reservoir.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping wire harness at right of engine compartment
Unclip plug connections -2, 3- from the holders at the cross panel.
