Installing Brake Booster

1. Hold the brake lines aside carefully ahead of the brake booster.
2. Fit the brake booster carefully.

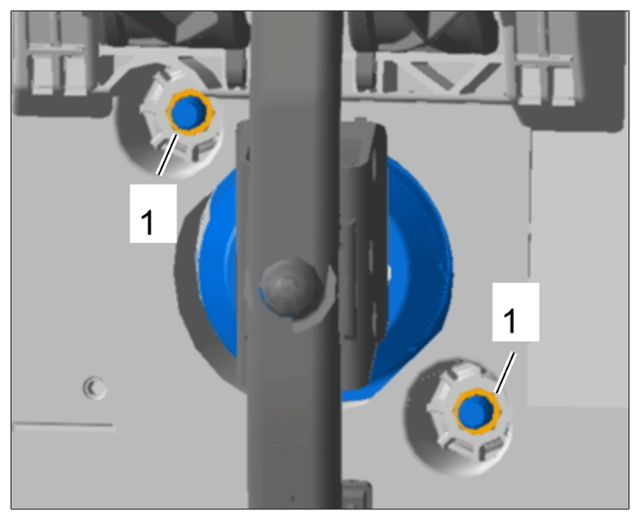

3. Fit and tighten fastening nuts -1-  for the brake booster under the dashboard. > Tightening torque 26 Nm (19 ftlb.) +/- 3 Nm (2 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting brake booster

4. Fit the brake booster push rod on the brake pedal.
   1. 4.1 Press the brake pedal forward until the ball joint engages in the mounting.

      > 460519 Removing and installing brake pedal - section on "INSTALLING "

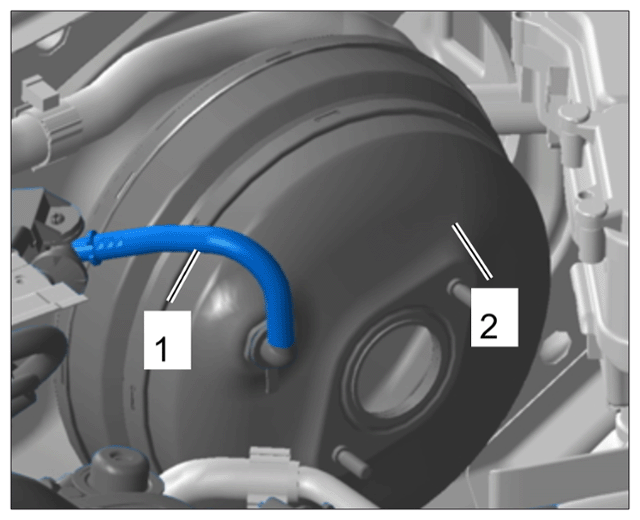

5. Carefully fit the vacuum line -1-  into the brake booster -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Vacuum line on brake booster
