Installing Brake Pedal

Information

• Do not grease or spray the brake pedal shaft (bearing pin).
• Use new lock nuts.
• Observe correct tightening torques

  > 46 Tightening torques for brake mechanism - section on "Technical values"

• Tightening torque for brake pedal shaft (bearing pin): 20 ± 3 Nm/15 ± 2 ftlb.

1. Insert brake pedal into the vehicle.

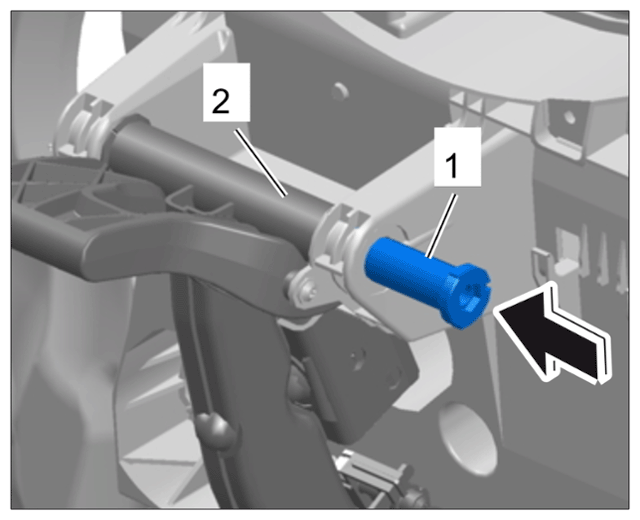

2. Press the brake pedal shaft -1-  fully into the brake pedal -1-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressing in brake pedal shaft

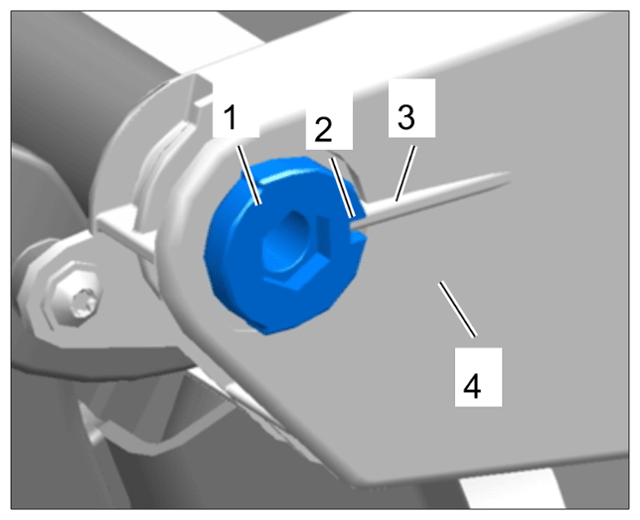

3. When pushing in the brake pedal shaft -1-  , make sure that the cut-out -2-  on the brake pedal shaft -1-  fits into the guide -3-  on the holder -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Positioning brake pedal shaft

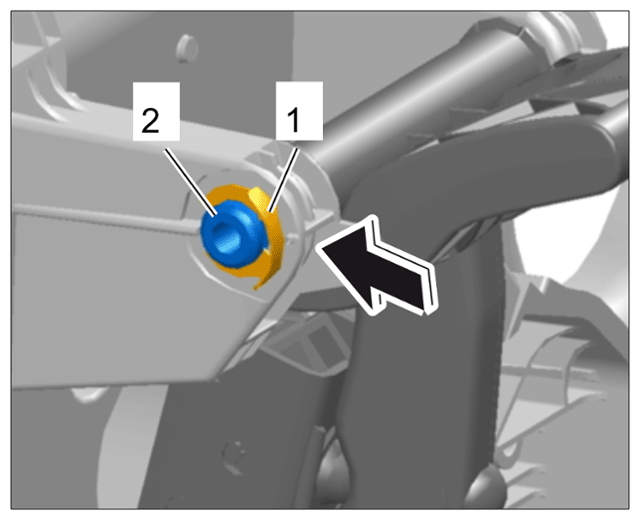

4. Slide the lock -1-  at the left onto the brake pedal shaft -2-  (-arrow-  ).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting brake pedal lock

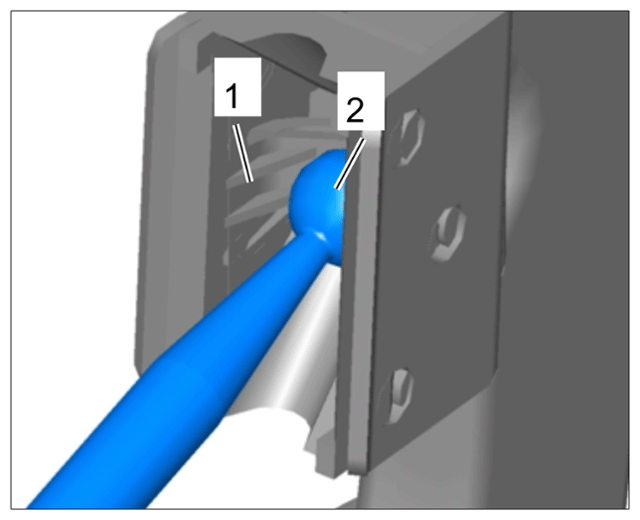

5. Position brake pedal -1-  on the push rod -2-  for the brake booster.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake pedal on push rod

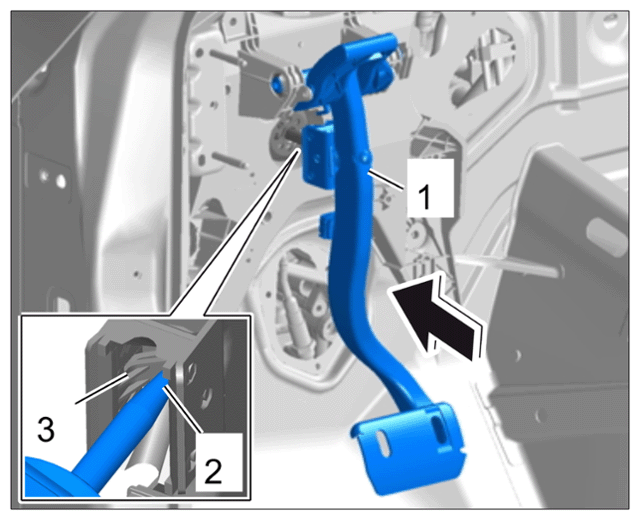

6. Press brake pedal -1-  fully -arrow-  until the push rod -2-  engages with an audible click in the holder -3-  on the brake pedal.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting brake pedal
