Removing Drive Shaft

Information

The pictures shown in this document may differ from the original.

Information

• To prevent damage to the drive shaft, suspension subframe or transmission flange, slide a protective tube (shop-made) over the drive shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

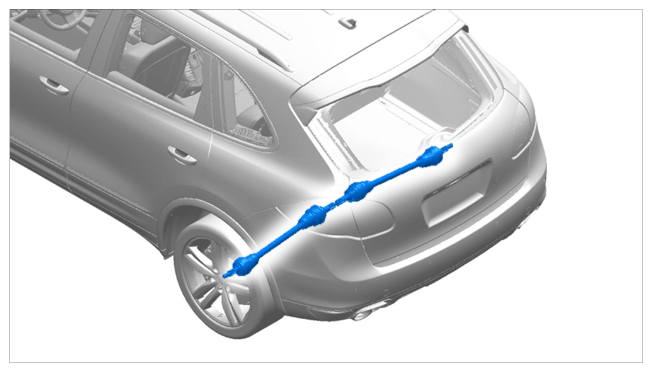

Installation position of rear drive shaft

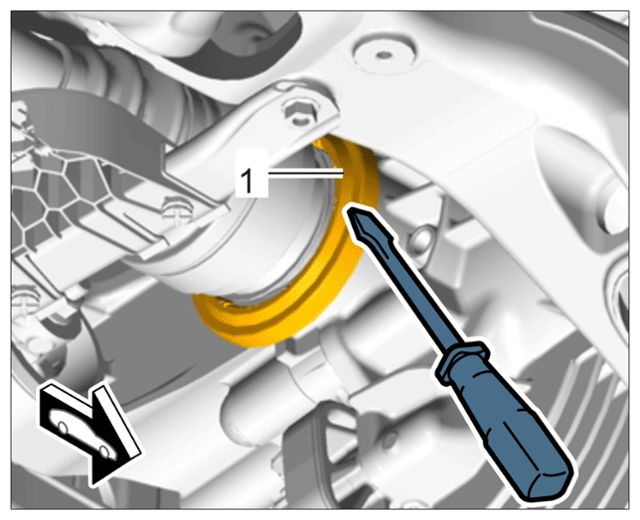

1. Left side only: Break off protective plastic ring -1-  with a screwdriver.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Breaking off protective plastic ring

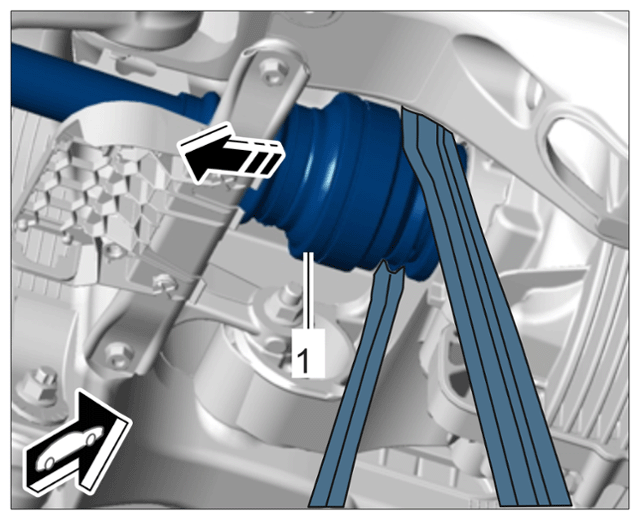

2. Position two mounting levers and carefully press the drive shaft -1-  outwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting mounting levers

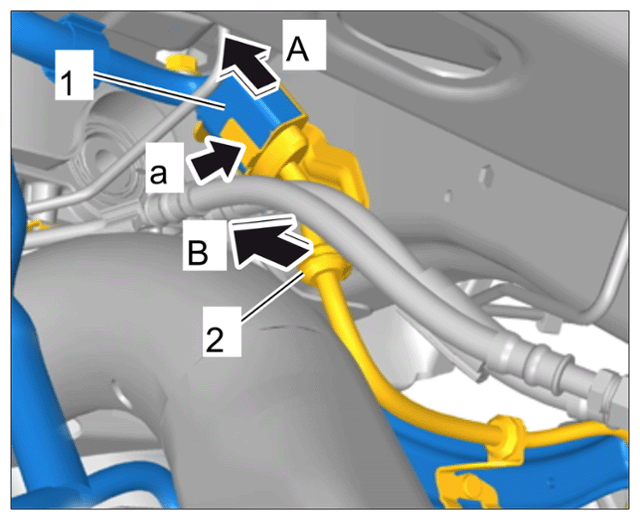

3. Release central connector -1-  from the ABS wire harness at the body -a-  and disconnect it -A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection for wire harness for wheel bearing housing

4. Unclip ABS wire harness mounting -2-  at the body -B-  .
5. Remove brake calliper from the wheel Learing housing and suspend it at a suitable position in the wheel arch (do not open the brake hydraulic system:).

   > 474119 Removing and installing rear brake calliper - section on "REMOVING "

6. Remove the brake disc for better accessibility if necessary.

   > 465319 Removing and installing rear brake disc - section on "REMOVING "

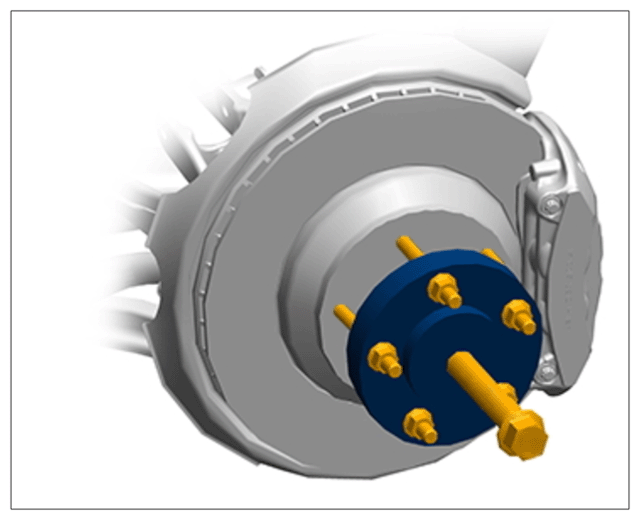

7. Use > VAS 6926 - Puller set  to press out the pin of the drive shaft by max. > Length 10 mm + 5 mm  --. Check drive shaft clearance on the halfshaft flange while doing this.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Pressing out drive shaft

8. Remove wheel bearing housing from the spring strut.

   > 427119 Removing and installing rear spring strut (steel springs) - section on "REMOVING "

   > 432519 Removing and installing rear spring strut (air springs) - section on "REMOVING "

   Spring strut screws are tensioned. Use a suitable lift with a rubber base.

   Carefully press the spring strut down out of the wheel bearing housing.

   Make sure not to damage the brake cover plate.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Supporting wheel beating housing (example)

9. Remove tie rod (toe control arm) at the wheel bearing housing.

   > WM, 420919 REMOVING AND INSTALLING REAR TIE ROD (TOE CONTROL ARM)  - section on "Removing"

10. Secure the wheel bearing housing/drive shaft assembly to prevent it from falling down (second mechanic required!)

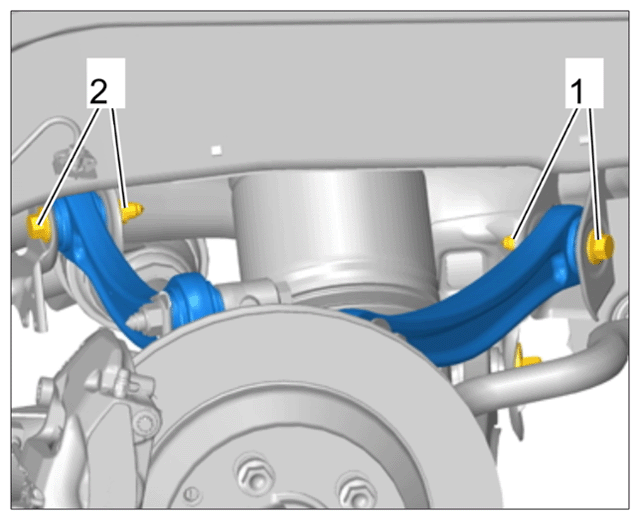

    Remove screws -1,_2-  on the inside of the two upper wishbones from the rear axle carrier.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint on inner wishbones

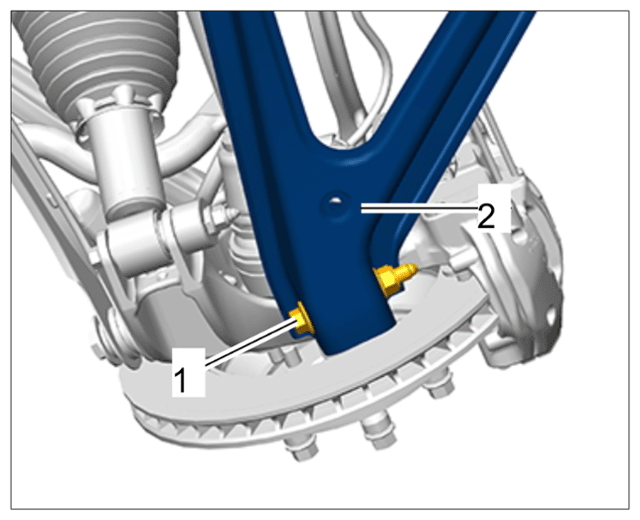

11. Loosen the lower wishbone -2-  at the point where it is secured to the wheel bearing housing -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws on lower trailing arm

12. Slowly lower a suitable jack and carefully set the wheel bearing housing and drive shaft down.

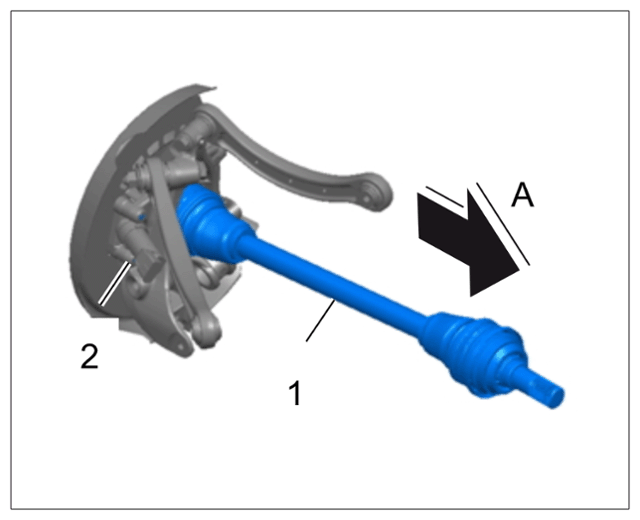

13. Pull the drive shaft -1-  fully out of the wheel bearing housing -2-  (-A-  ) and set it aside.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing drive shaft from wheel bearing housing
