Removing Rear Brake CALLIPER

WARNING: This page is about a different variant/trim than selected.

NOTE: NOTIFICATION
Removing/fitting wheels

Risk of damage to (ceramic) brake discs
1. Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

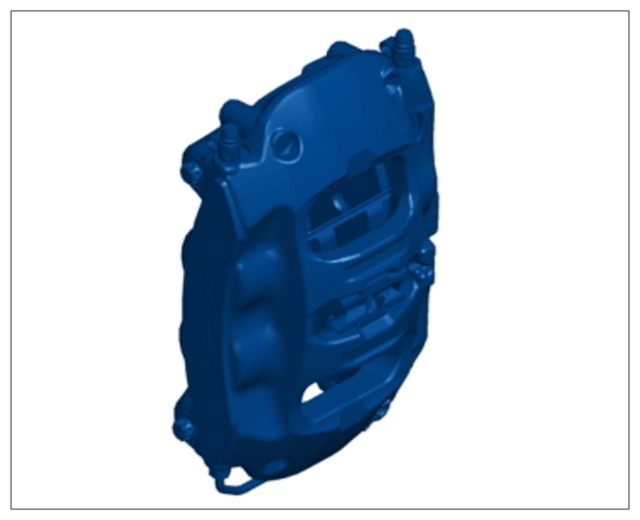

Overview of brake calliper

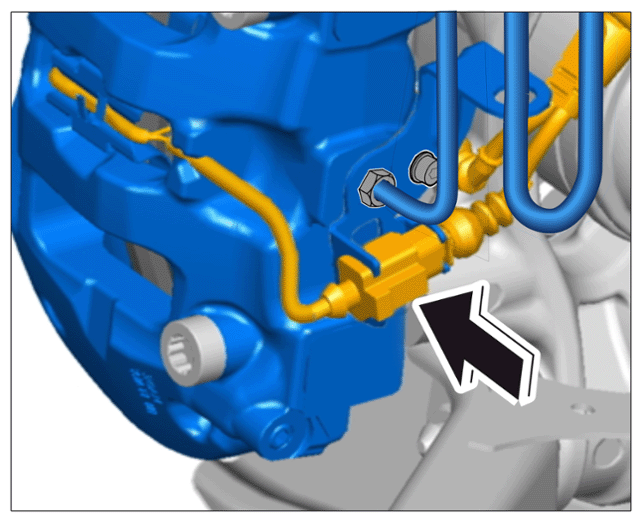

Release and unclip connector for the brake pad wear indicator and remove it from the holder -arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping cable
NOTE:
NOTIFICATION
Removal of brake calliper
- Paint defects on brake calliper
  1. Proceed with care when setting back the brake pads.
  2. Protect brake calliper from paint defects using a suitable cloth.
Evenly set back brake pads a little using water pump pliers.

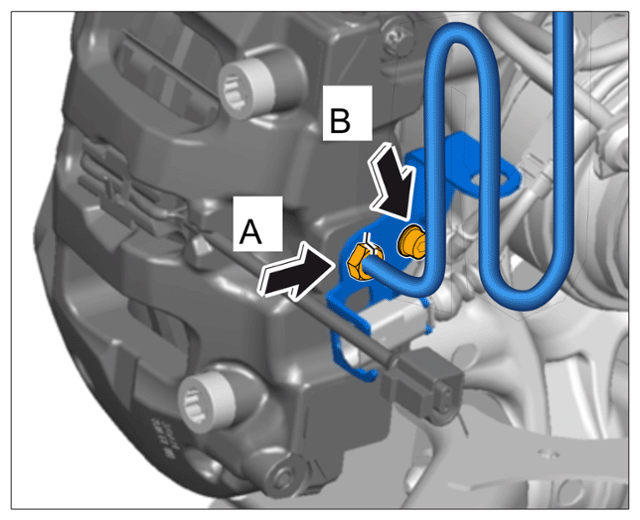

Loosen fastening screw -B- on the holder for the brake pad wear indicator cable and brake line from the brake calliper.
Disconnect brake line -A- at the brake calliper and collect brake fluid in a suitable container.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake line holder
Close off the brake line and bore on the brake calliper using a suitable stopper.
Information
- Never use an impact bolter to loosen and tighten the brake calliper on the wheel bearing housing.

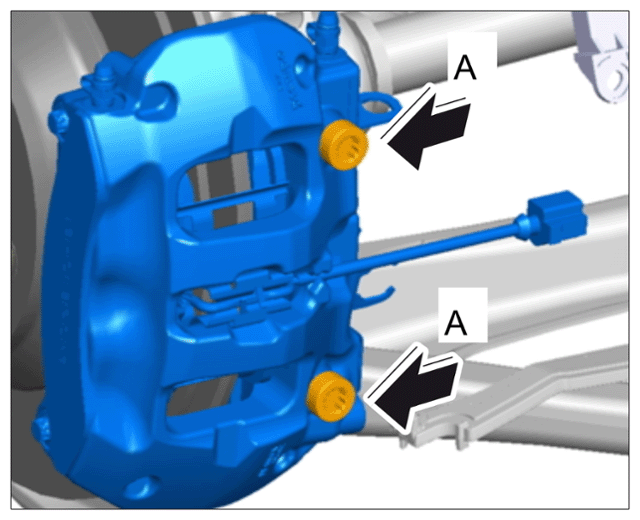

Remove brake calliper from the wheel carrier -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing brake calliper
