Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install oil guide housing and oil pan.
> 175019 REMOVE AND INSTALL OIL PAN
Fitting new joint flange behind the vibration damper.
> Refer to the appropriate service information
Check the timing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TDC position of camshafts
1. 3.1 Turn the engine two turns clockwise to TDC of cylinder 1 and lock the belt pulley using > 9595/1 - locating pins.

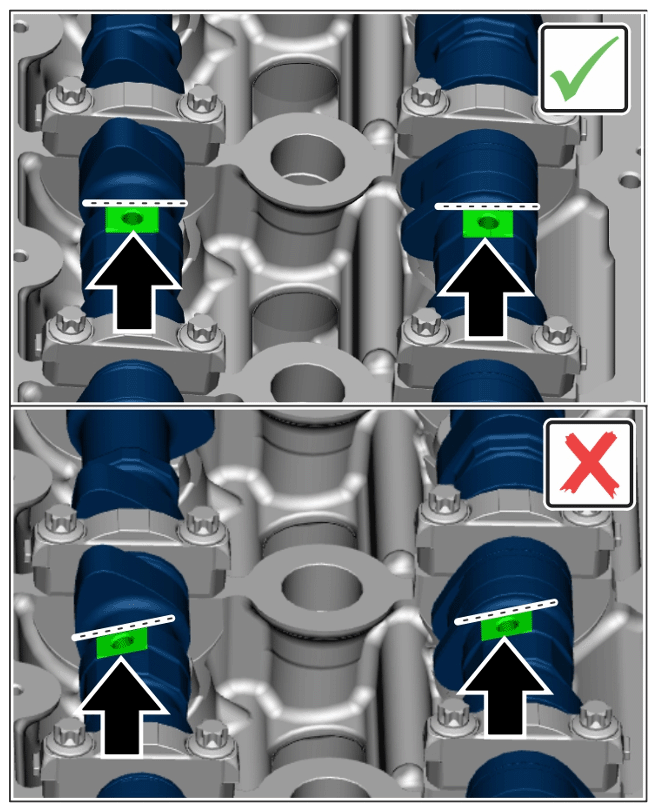

2. 3.2 Check the position of the camshafts -Arrows- . The surfaces for the camshaft adjustment must be horizontal.
  1. 3.2.1 If the control chain is still in the same position as it was during removal, remove > 9595/1 - locating pins and continue with Step 4.
  2. 3.2.2 Only set the timing if the control chain has jumped.
    > WM, 150516 TIMING FOR CAMSHAFTS
Final installation of vibration damper.
> Refer to the appropriate service information.
Install both cylinder head covers.
> 158219 REMOVING AND INSTALLING CYLINDER HEAD COVER
Mounting the drive belt. For details, see > 137819 REMOVING AND INSTALLING DRIVE BELT

Fit coolant hoses in front of the chain housing cover. Don't forget the holder. > Coolant return line on turbo, for example

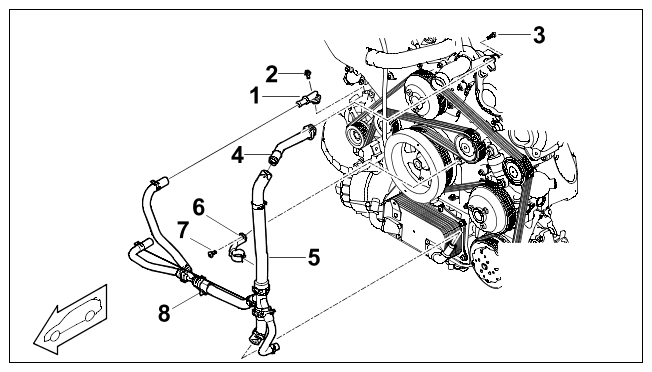

Fig 1: Coolant Return Line On Turbo Components Location - For Example

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant return line on turbo, for example

1	Connection piece on alternator
2	Connection piece screw
3	Screw, M6 x 20
4	Coolant return line
5	Coolant return hose assembly
6	Bracket
7	M6 screw Aluminium screw ; always use new aluminum screws
8	Clip

Filling engine oil. For details, see > 170117 DRAINING AND FILLING ENGINE OIL (CHANGING ENGINE OIL)
Attach the transmission flange.
Install the engine.
> 100119 REMOVING AND INSTALLING ENGINE
